Omron MX2 Series - External Dimensions

12 Options
12 - 8
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

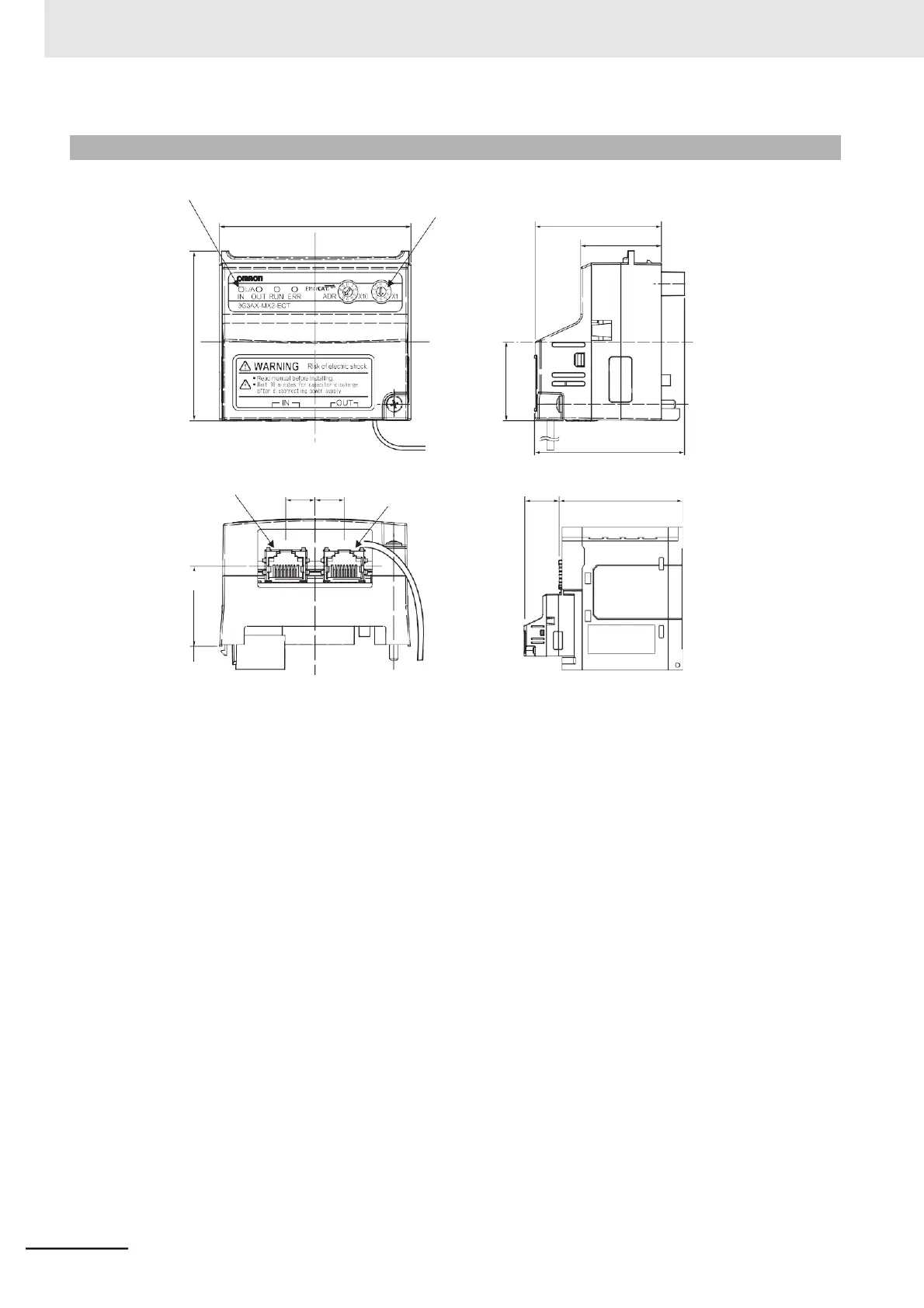

12-13-2 External Dimensions
Status indicator
67.6
Rotary switch for node
address setting
44.9
28.6
Communications
connector (IN)
10.3 10.3
FG cable
Communications
connector (OUT)
34mm
*1
53.1
D
*1
FG cable
*1. With the EtherCAT Communication Unit mounted, dimension D of the inverter increases by 34 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to 1-3-2 External Dimensions on page
1-17).
28.2
60.0
27.9
