Omron MX2 Series User Manual

7 Other Functions
7 - 40
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

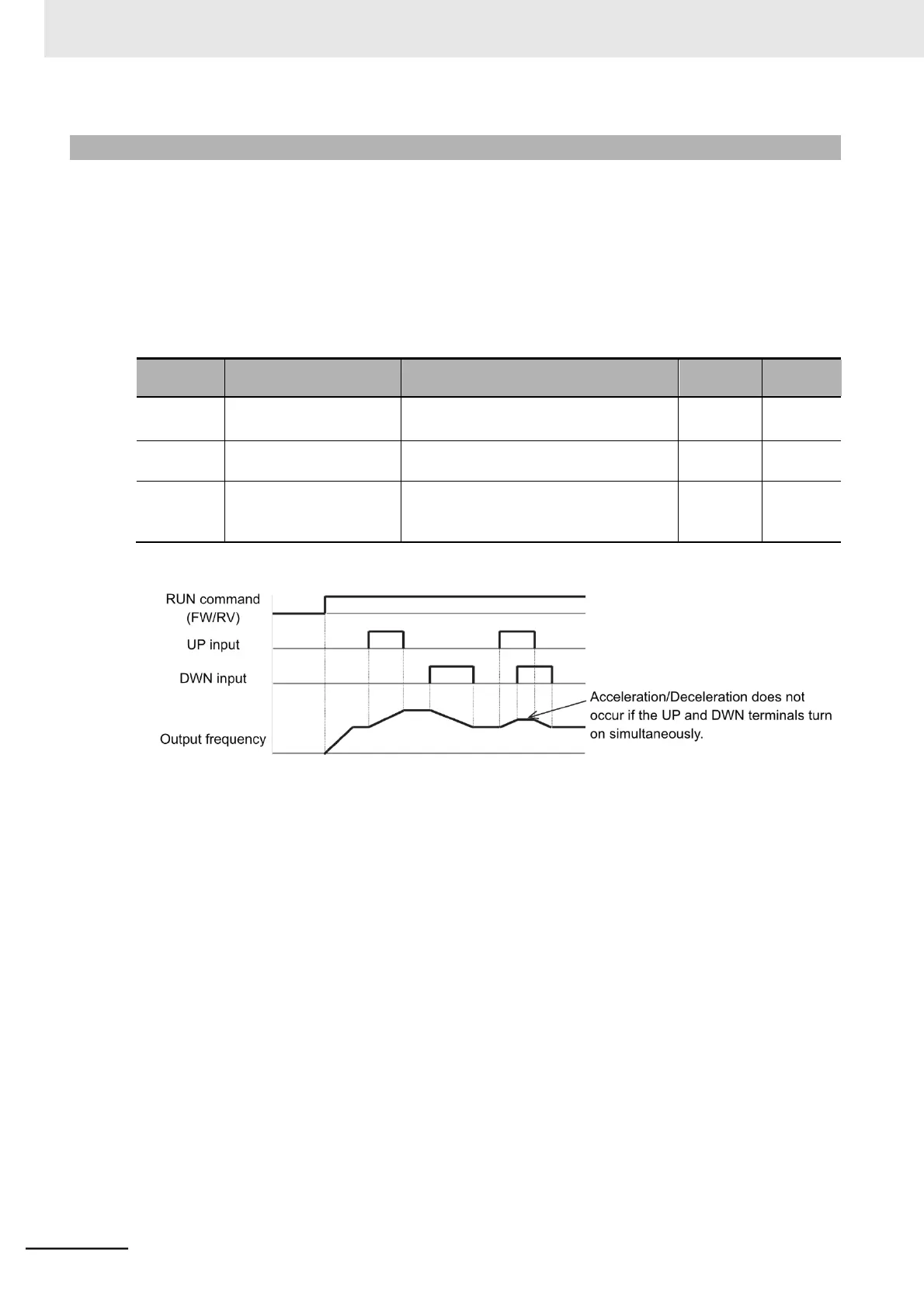

7-5-9 Remote Operation Function (UP/DWN)
Use this function to change the inverter output frequency via the multi-function input terminals UP and
DWN.
Set the Multi-function Input 1 to 7 Selection (C001 to C007) to 27 (UP) and 28 (DWN).
When the UP/DOWN terminal is ON, the inverter operates according to the acceleration/deceleration
time settings (F002/F202, F003/F203, etc.)
In addition, setting C101 to 01 (Store frequency data) enables the inverter to store the frequency refer-
ence value after UP/DWN adjustment into its internal EEPROM when the power supply is shut off.
Parameter
No.
Function name
Data
Default
data
Unit
C101
UP/DWN Storage
Selection
00: Not store frequency data
01:
Store frequency data
*1
00
−
C104
UP/DWN Clear Selection
00: 0Hz
01: EEPROM data at power-on
00
−
C001 to
C007
Multi-function Input 1 to 7
Selection
27: UP (Remote operation accelerated)
28: DWN (Remote operation decelerated)
29: UDC (Remote operation data clear)
−
−
*1. Do not turn ON/OFF the terminal UP/DWN after turning off the power supply. Otherwise, the inverter may not
store data normally.
• The remote operation function is enabled only when the 1st/2nd Frequency Reference Selection
(A001/A201) is set to 01 (Control circuit terminal block) or 02 (Digital Operator), or when the
multi-step speed operation function is enabled. However, the parameter can be set to 01 (Control cir-
cuit terminal block) only when the analog command hold function (AHD) is enabled. For details on
the analog command hold function, refer to 7-3-3 Analog Command Hold Function (AHD) on page
7-24.
• The remote operation function is disabled for the frequency reference via non-held analog input or for
jogging operation.
• To clear the frequency reference value adjusted using the UP/DWN function, set the Multi-function
Input 1 to 7 Selection (C001 to C007) to 29 (UDC).
Then, set the command reference value after clearing in the UP/DWN Clear Selection (C104).

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
