7 Other Functions
7 - 27
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

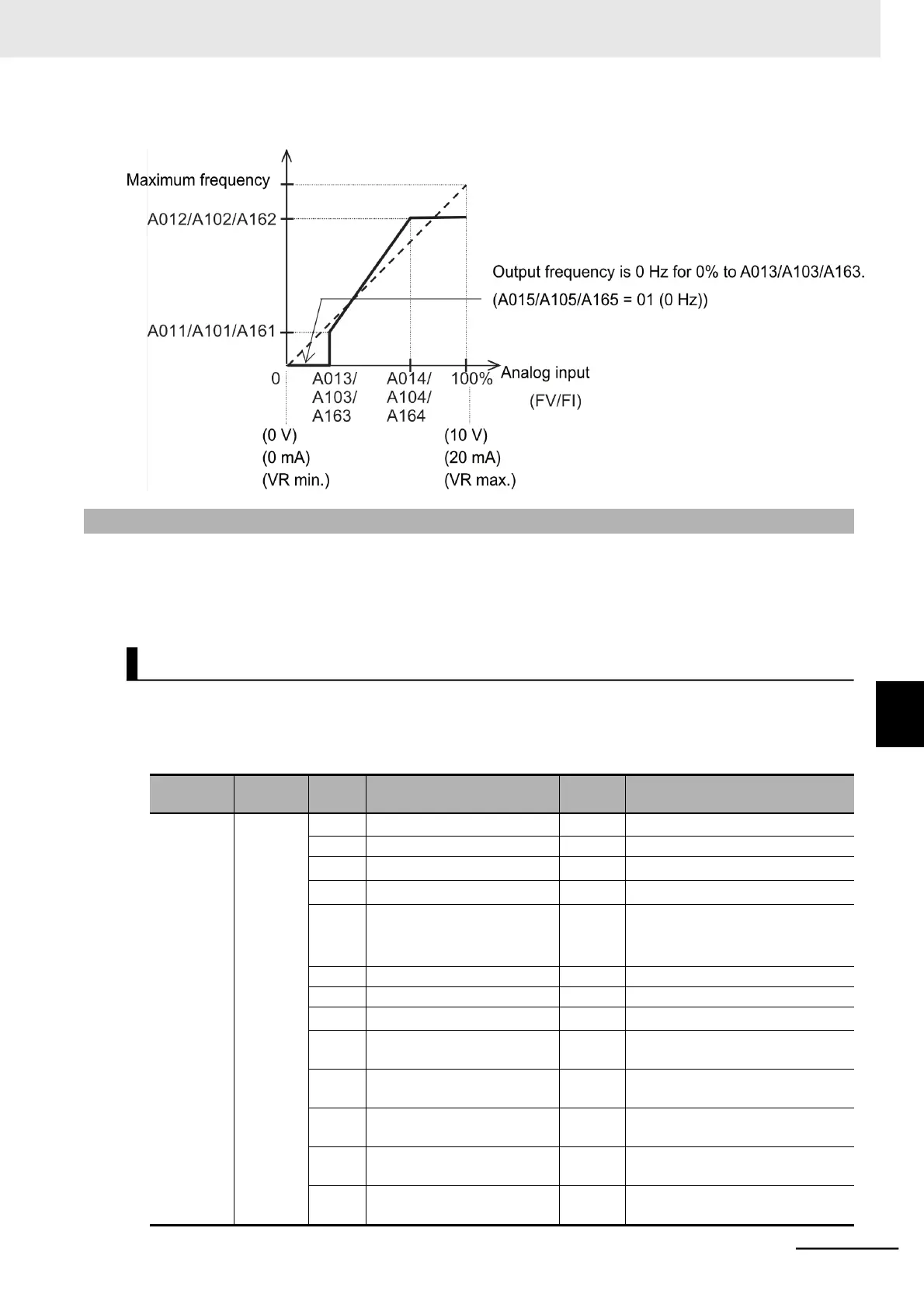

(Example 2) A015/A165 = 01 (0 Hz)
7-3-6 Terminal EO (Pulse/PWM Output)
The terminal EO provides 10-VDC pulse output or PWM output.
The terminal EO on the control circuit terminal block enables the monitoring of the output frequency
and the output current.
Select the signal you want to output from the following table.
For pulse output signals (03, 08, 15), use a digital frequency counter. For other output signals, use an
analog meter.
Parameter
No.
Function
name
Data
Description
PWM/
Pulse
Full-scale value
C027
EO
Selection
00
Output frequency
*1 *2
PWM
0 to Maximum frequency [Hz]
01
Output current
PWM
0 to 200%
02
Output torque
*3
PWM
0 to 200%
03
Digital output frequency
*4
Pulse
0 to Maximum frequency [Hz]
04
Output voltage
PWM
0 to 133%
(Example: For 200-V class, 7.5 V
at 200 V)
05
Input power
PWM
0 to 200%
06
Electronic thermal load rate
PWM
0 to 100%
07
LAD frequency
*1
PWM
0 to Maximum frequency [Hz]
08
Digital current monitor
Pulse
Refer to EO Gain Setting on page
7-28.
10
Cooling fin temperature
PWM
0 to 200°C (Outputs 0°C for 0°C or
lower)
12
DriveProgramming (YA(0))
PWM
Use DriveProgramming to set this
function. (0.00 to 100.00%)
15
Pulse train input monitor
Pulse
Refer to EO Gain Setting on page
7-28.
16
Option (No applicable
Option)
−
−
7
7-3 Analog I/O Settings
7-3-6 Terminal EO (Pulse/PWM Output)
EO Selection

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
