Omron MX2 Series User Manual

3 Operation and Test Run
3 - 13
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
In parameter
display mode
Use the Increment key/Decrement key to
increase/decrease the parameter number.
When you press the Increment key at the end,
it will return to the beginning in the same mode.
Extended Function
Mode C
3-1-3 Key Operation Method with Remote Digital Operator Connected
This section describes the operation method when the optional Digital Operator (Model: 3G3AX-OP01)
is connected.

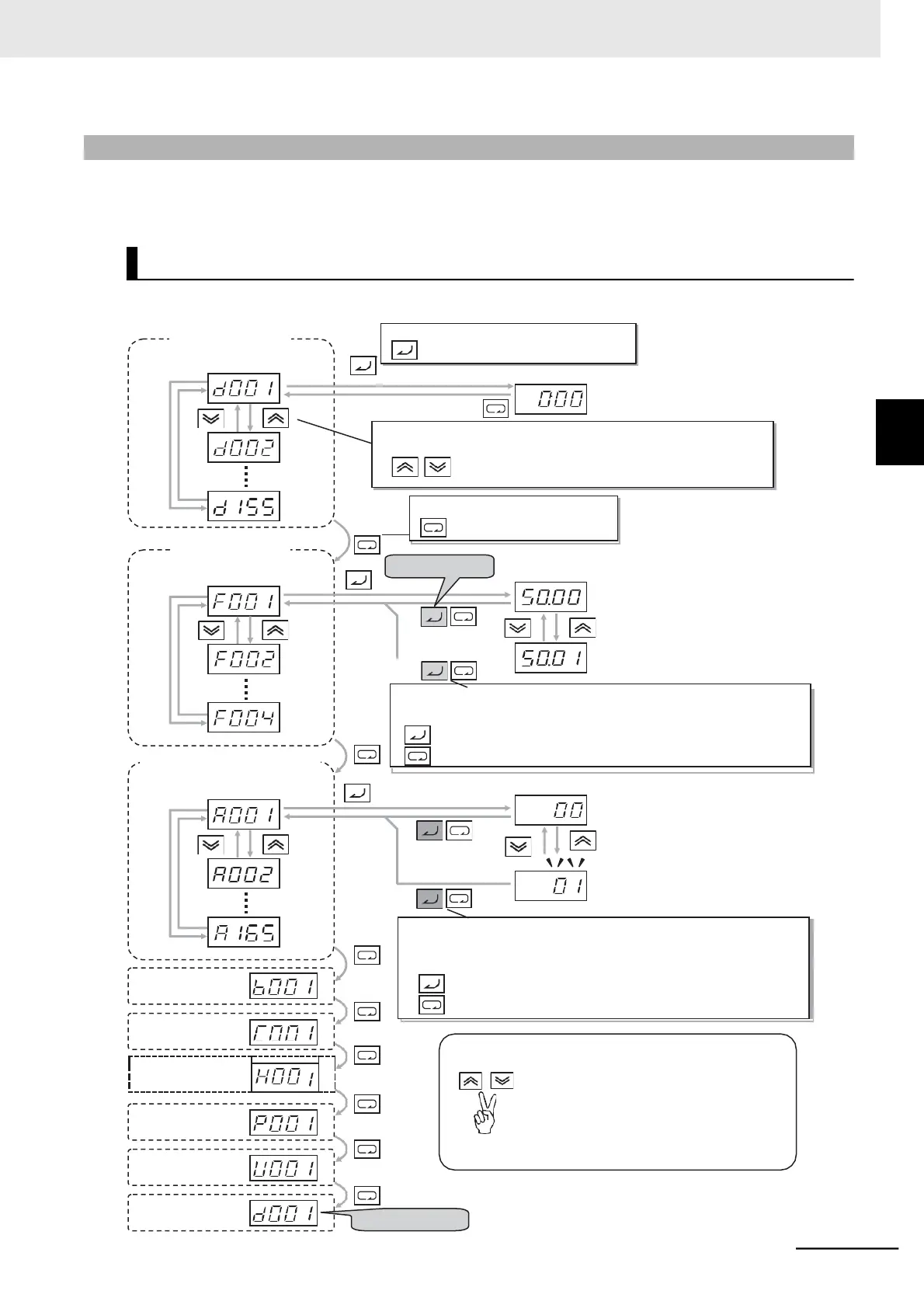

The following figure shows how to operate the optional Digital Operator (Model: 3G3AX-OP01).
Monitor Mode d
*1
Data display
d001: Output Frequency Monitor
Function Mode F
Parameter display
Extended Function Mode A
Parameter display
Stores the data.
Data display
Data display
F001: Output Frequency Setting
A001: Frequency Reference Selection
Extended Function
Mode d
*2
Returns to d001
In the parameter display or data display
mode, pressing the Increment key and
the Decrement key simultaneously
enables quick change of the value.
For details, refer to Individual Input
Mode for Parameters (Direct
Specification/Selection) on page 3-14.
*1.In monitor mode d, data cannot be changed.
*2.After extended function mode U, the display
returns to monitor mode d.
In parameter display mode
: Moves to the next mode
Extended Function
Mode b
In data display mode
When data is changed, all digits will blink.
While blinking, the changes are not entered yet.
: Returns to the parameter display after entering and storing the changes.
: Returns to the parameter display after canceling the changes.
Extended Function
Mode U
Extended Function
Mode P
In data display mode (F001 to F003)
Changes are entered immediately, so the value does not blink even if it is changed.
: Returns to the parameter display after storing the value in the EEPROM.
: Returns to the parameter display without storing the value in the EEPROM.
3
In parameter display mode
: Moves to the parameter display
3-1 Operation of Digital Operator
3-1-3 Key Operation Method with Remote Digital Operator Connected
Extended Function
Mode H
Transition of Parameter Display

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
