Parameter
No.
Function name
Data
Default
data
Unit
P059
Pulse Train Frequency
Lower Limit
0.01 to 20.00
1.00
%
A001
1st Frequency Reference
Selection
06: Pulse train frequency
02
−
A076
PID Feedback Selection
03: Pulse train frequency
00
−
A141
Calculation Frequency
Selection 1
07: Pulse train frequency
02
−
A142
Calculation Frequency
Selection 2
03
−

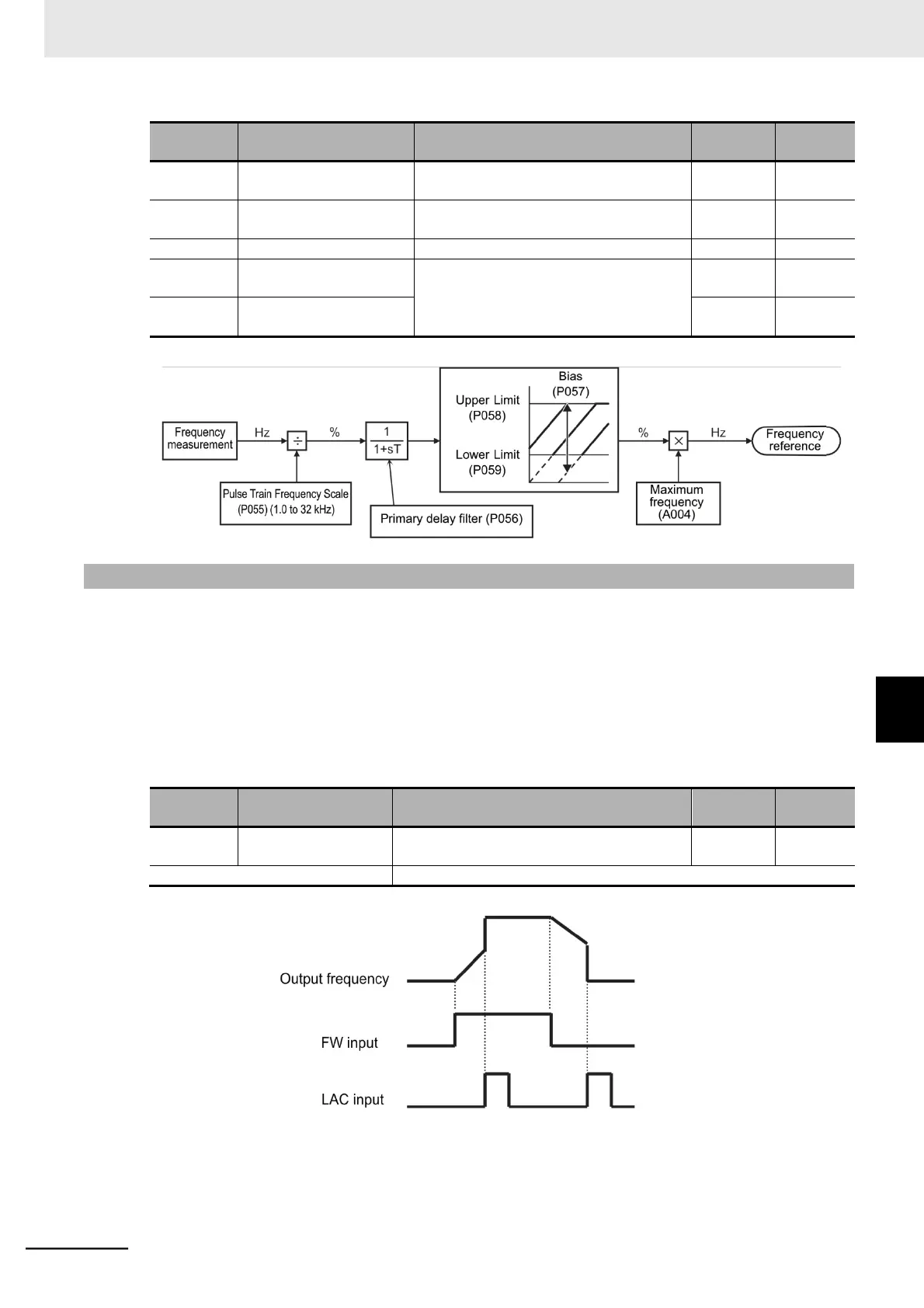

7-5-17 LAD Cancel Function
LAD functions to calculate the transient frequency reference value to enable the motor to reach the ref-
erence frequency in the set acceleration/deceleration time. The LAD cancel function disables this fre-
quency acceleration/deceleration function (LAD).
To disable the frequency acceleration/deceleration function (LAD) to output the frequency reference
instantaneously, set the Multi-function Input 1 to 7 Selection (C001 to C007) to 46 (LAC: LAD cancel)
and turn ON the terminal LAC.
For details on the acceleration/deceleration time, refer to 5-6-1 Acceleration/Deceleration Time Settings
on page 5-32.
Parameter
No.
Function name
Data
Default
data
Unit
C001 to
C007
Multi-function Input 1
to 7 Selection
46: LAC (LAD cancel)
−
−
Related functions
F002, F202, F003, F203
7
7-5 Other Operation Functions
7-5-17 LAD Cancel Function

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
