Omron MX2 Series User Manual

5 Basic Settings
5 - 51
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

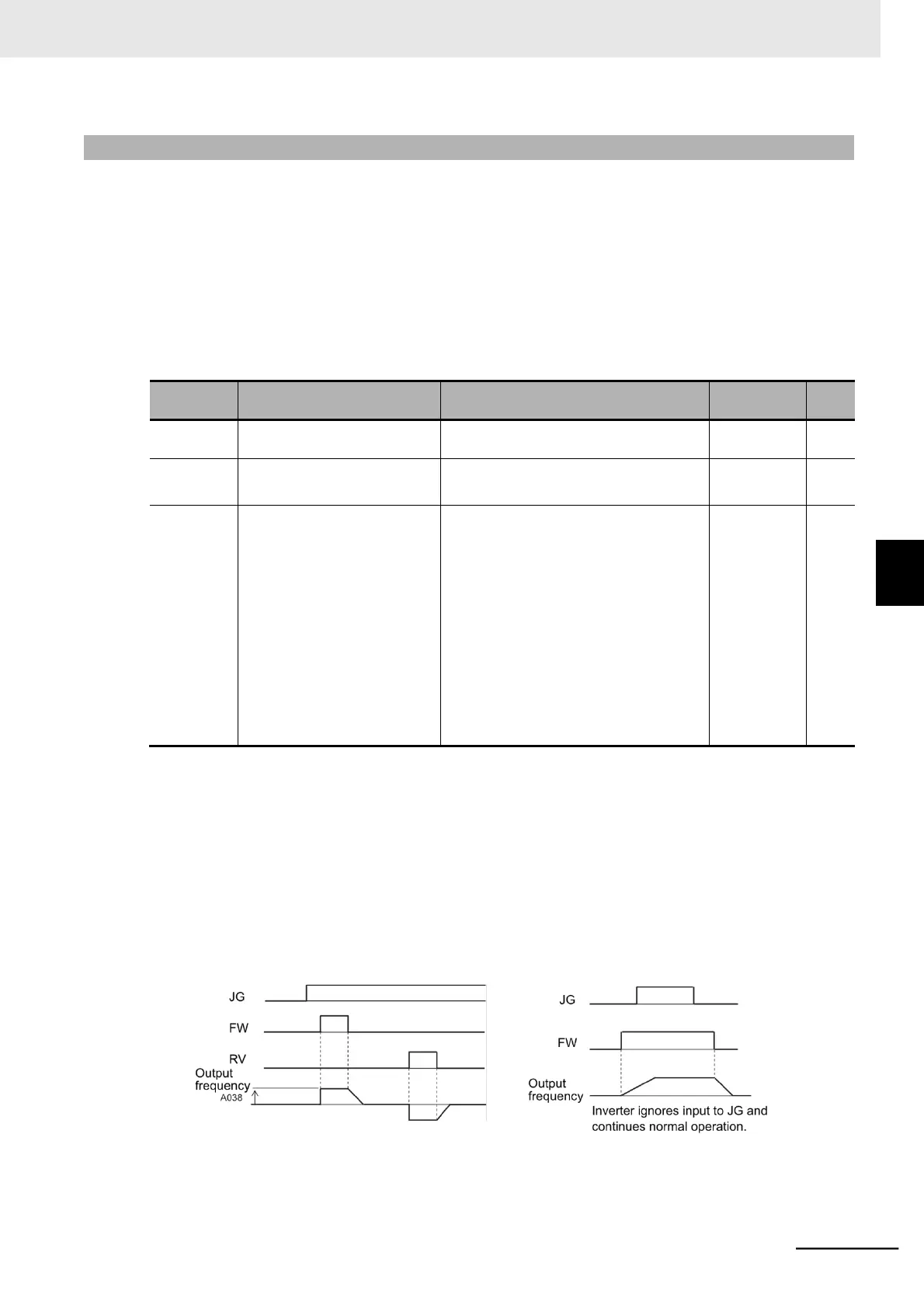

5-9-6 Jogging (JG)
• When the jogging function is enabled, jogging operation starts when the RUN command is input.
• To enable the jogging function, set the Multi-function Input 1 to 7 Selection (C001 to C007) to 06
(JG: Jogging).
• Then, set the frequency reference for jogging operation in the Jogging Frequency (A038).
Because, in jogging operation, the frequency reference is output without acceleration time, setting a
high jogging frequency value may cause an overload or trip error. Be sure to set a frequency value
that does not cause tripping.
• Use the Jogging Stop Selection (A039) to set the jogging stop method and whether to enable or dis-
able the jogging function during operation.
Parameter
No.
Function name
Data
Default data
Unit
C001 to
C007
Multi-function Input 1 to 7
Selection
06: JG (Jogging)
−
−
A038
Jogging Frequency
0.00
Starting Frequency to 10.00 (100.00)
*1
6.00
Hz
A039
Jogging Stop Selection
00: Free-running on jogging stop/Dis-
abled during operation
01: Deceleration stop on jogging
stop/Disabled during operation
02: DC injection braking on jogging
stop
*2
/Disabled during operation
03: Free-running on jogging
stop/Enabled during operation
04: Deceleration stop on jogging
stop/Enabled during operation
05: DC injection braking on jogging
stop
*2
/Enabled during operation
04
−
*1. In high-frequency mode.
*2. If the Jogging Stop Selection(A039) is set to 02 or 05, set the DC Injection Braking Selection (A051).
Refer to 7-9-1 DC Injection Braking (DB) on page 7-93.
⚫ Disabled during operation
When the Jogging Stop Selection (A039) is set to 00, 01, or 02, jogging operation is not performed if
the FW signal turns ON first.
To perform jogging operation, turn ON the JG terminal and then turn ON the terminal FW or RV.
Jogging Operation Enabled Jogging Operation Disabled
5
5-9 Multi-function Input Settings
5-9-6 Jogging (JG)

Omron MX2 Series Specifications

General

Cooling Method	Fan cooling
Output Frequency Range	0.1 to 400 Hz
Control Method	V/f control, Sensorless vector control
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, short circuit
Communication Options	Modbus RTU
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Ambient Operating Temperature	-10°C to +50°C
Enclosure	IP20
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m
Power Supply Voltage	200-240V AC
Input Voltage	3-phase 200-240V AC
