There are two methods to connect the CX-Drive with the inverter.
The step-by-step procedure for each method is provided below.
⚫
Connecting by registering inverter connection method beforehand
Create a new inverter project, set the connecting method, and connect with the inverter.
Follow the steps below.

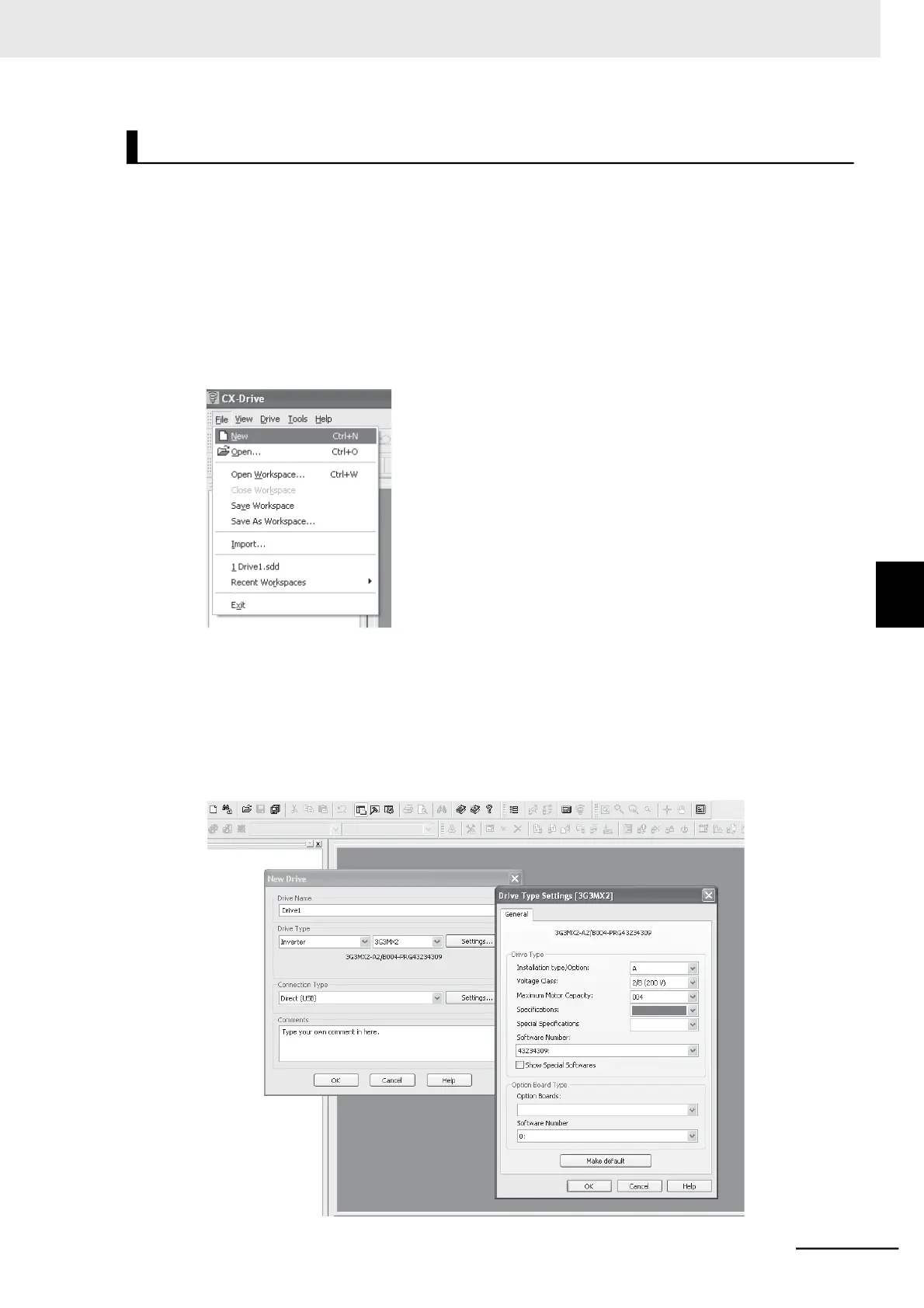

1 Start the CX-Drive and, from the [File] menu, select [New].
2 In the [New Drive] window, set the drive type of the target inverter.
Under [Drive Type], select the inverter series name and click the [Settings] button to the right.
In the [Drive Type Settings] window, set the Installation Type/Option, Voltage Class, and
Maximum Motor Capacity and select [EV2] in Specifications.
After setting these items, click the [OK] button to close the [Drive Type Settings] window.
