5 Basic Settings
5 - 31
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
Setting the lower limit causes the inverter to output the frequency set in the 1st/2nd Frequency Lower
Limit (A062/A262) when 0V (4 mA) is input to the frequency reference.

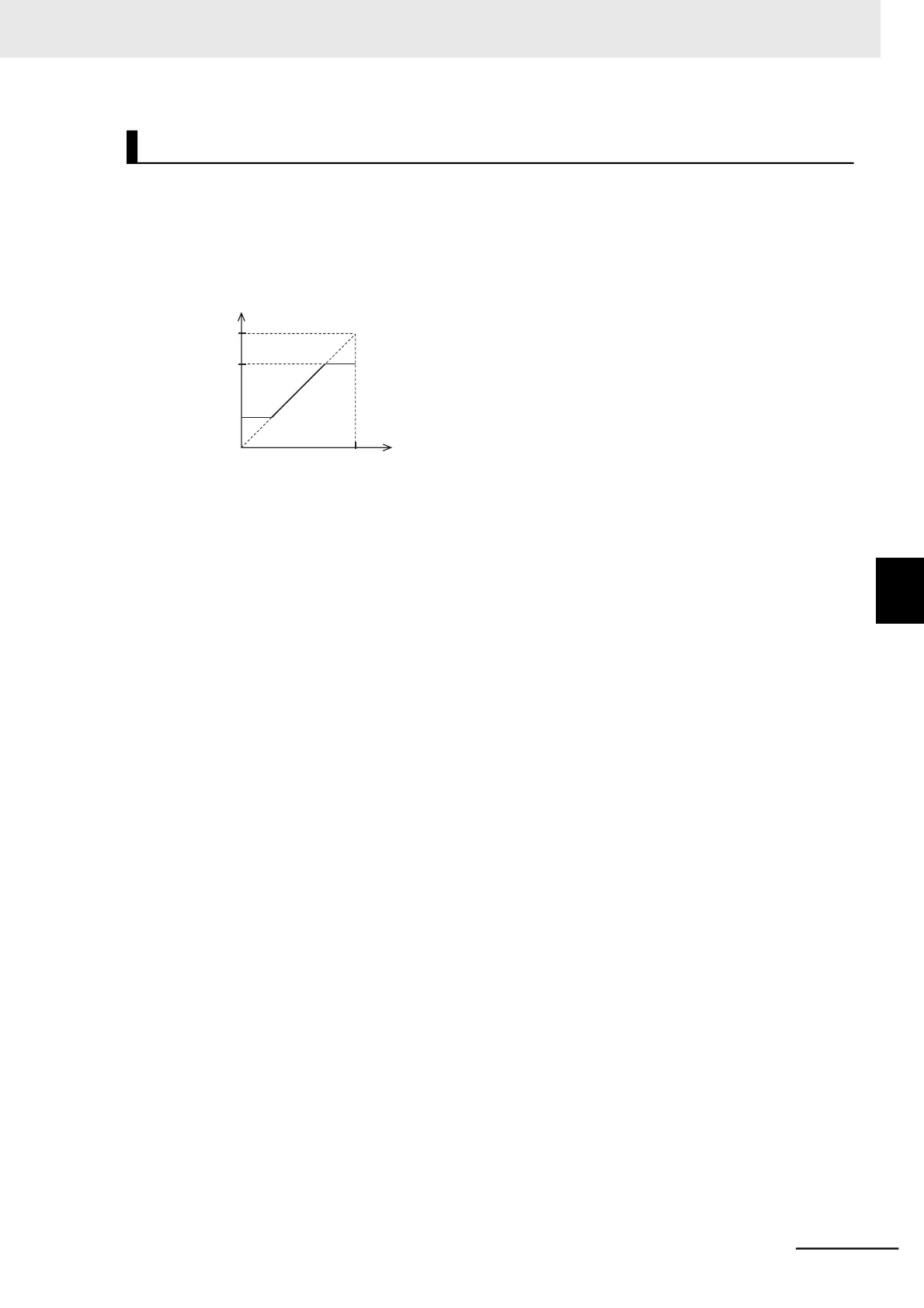

The graph below shows the O/OI characteristics with the default analog input start/end function
settings (O: A011 to A015, OI: A101 to A105). For details on the analog input start/end function, refer
to 7-3-5 Analog Input Start/End Function Settings on page 7-25.
Output frequency [Hz]
Maximum
Frequency
A004/A204
A061
A062
0V
4 mA
10V
20 mA
Output frequency
Using an Analog Voltage Input or Analog Current Input (O-L, OI-L)
5
5-5 Frequency Reference Settings
5-5-3 Frequency Limit
