1 - 9
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

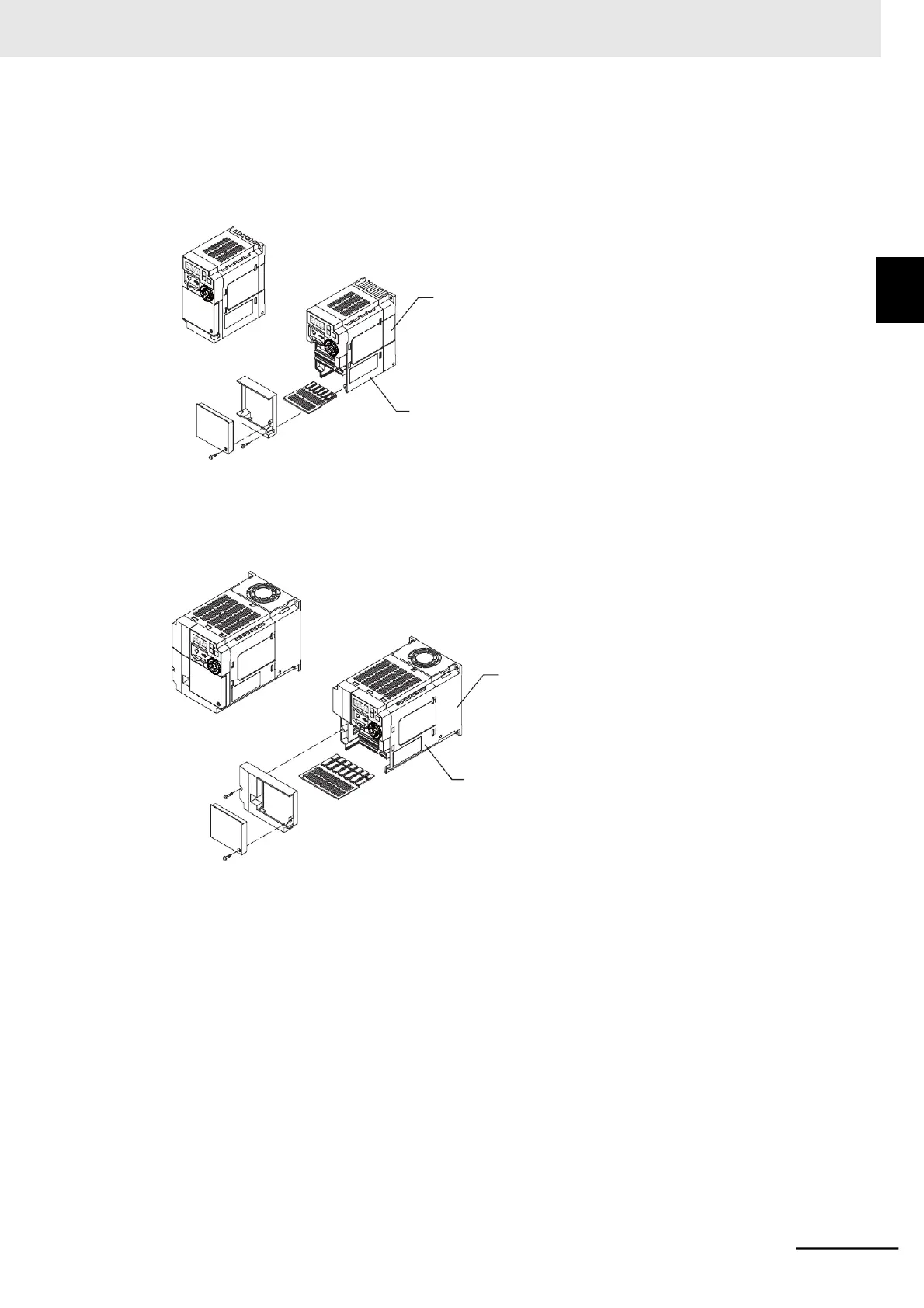

The figures below show the components of each Inverter model.
Single-phase 200 V, 0.1/0.2/0.4 kW
3-phase 200 V, 0.1/0.2/0.4/0.75 kW
(1)
Single-phase 200 V, 0.75/1.5/2.2 kW
3-phase 200 V, 1.5/2.2 kW
3-phase 400 V, 0.4/0.75/1.5/2.2/3.0 kW
(1)
(1) Cooling Fin (4) Front Cover
(2) Inverter Case (5) Backing Plate
(3) Terminal Block Cover (6) Cooling Fan
Note The single-phase 200-V, 0.75-kW model and the 3-phase 400-V, 0.4/0.75 kW model, however, have no
cooling fan.
1 Overview
(3)
(4)
(5)
(2)
(6)
(6)
(3)
(2)
(4)
(5)
1
1-2 Appearance and Part Names
