7 Other Functions
7 - 99
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)

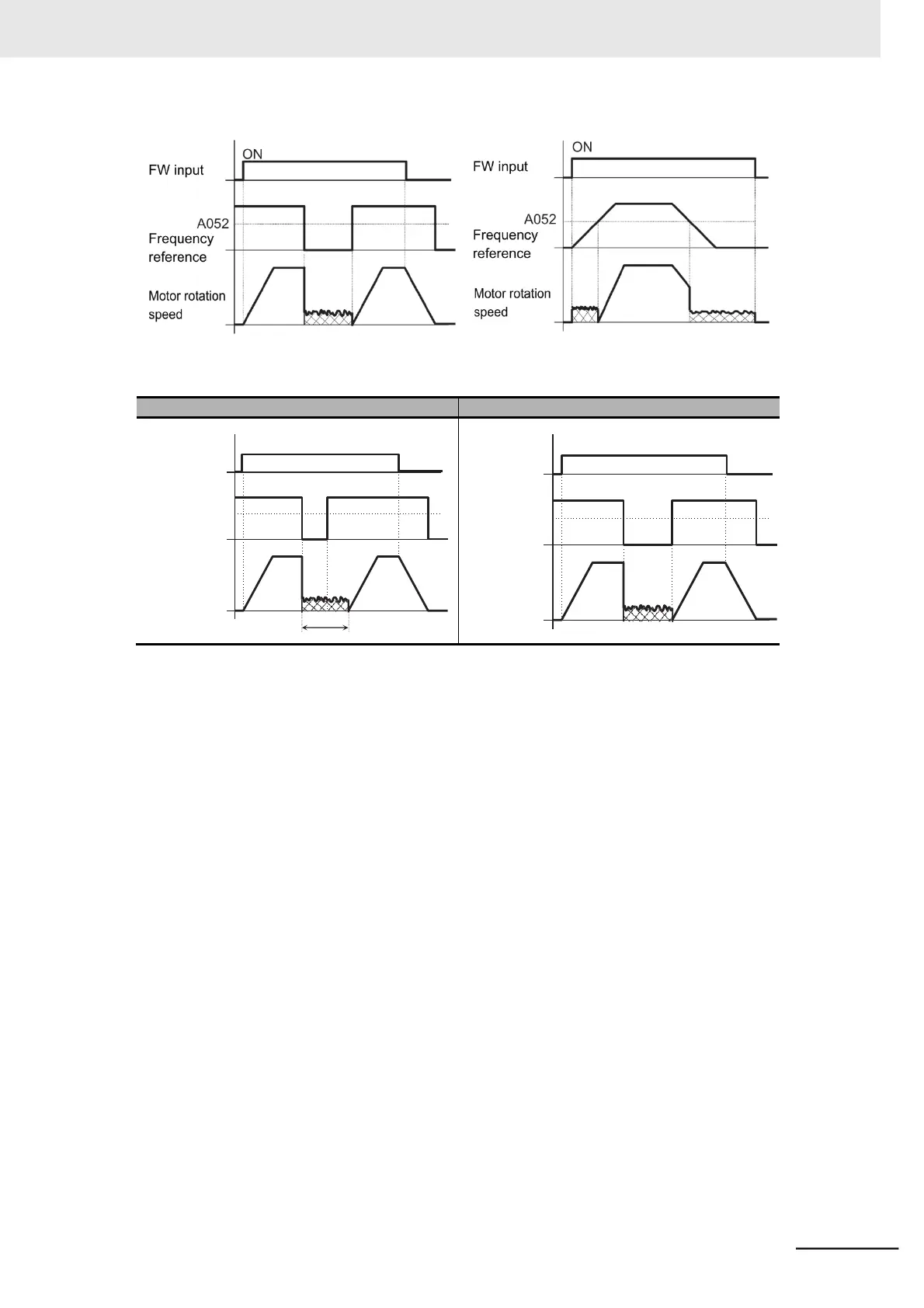

Example 1-a Example 1-b
The timing in which the inverter releases DC injection braking depends on the value set in the DC Injec-
tion Braking Edge/Level Selection (A056).
(a) Edge operation (A056 = 00)
(b) Level operation (A056 = 01)
ON
FW input
A052
Frequency
reference
Motor rotation
speed
A053
ON
FW input
A052
Frequency
reference
Motor rotation
speed
