1 Overview
1 - 39
Multi-function Compact Inverter 3G3MX2-EV2 User’s Manual (I666-E1)
The maximum input frequency for the multifunction input terminal 7 when EB (Rotation direction
detection) is assigned is changed from 1.8 kHz to 32 kHz.
Refer to 6-5-2 Recommended Encoder and Its Wiring on page 6-19 for the specifications of encoder
inputs.

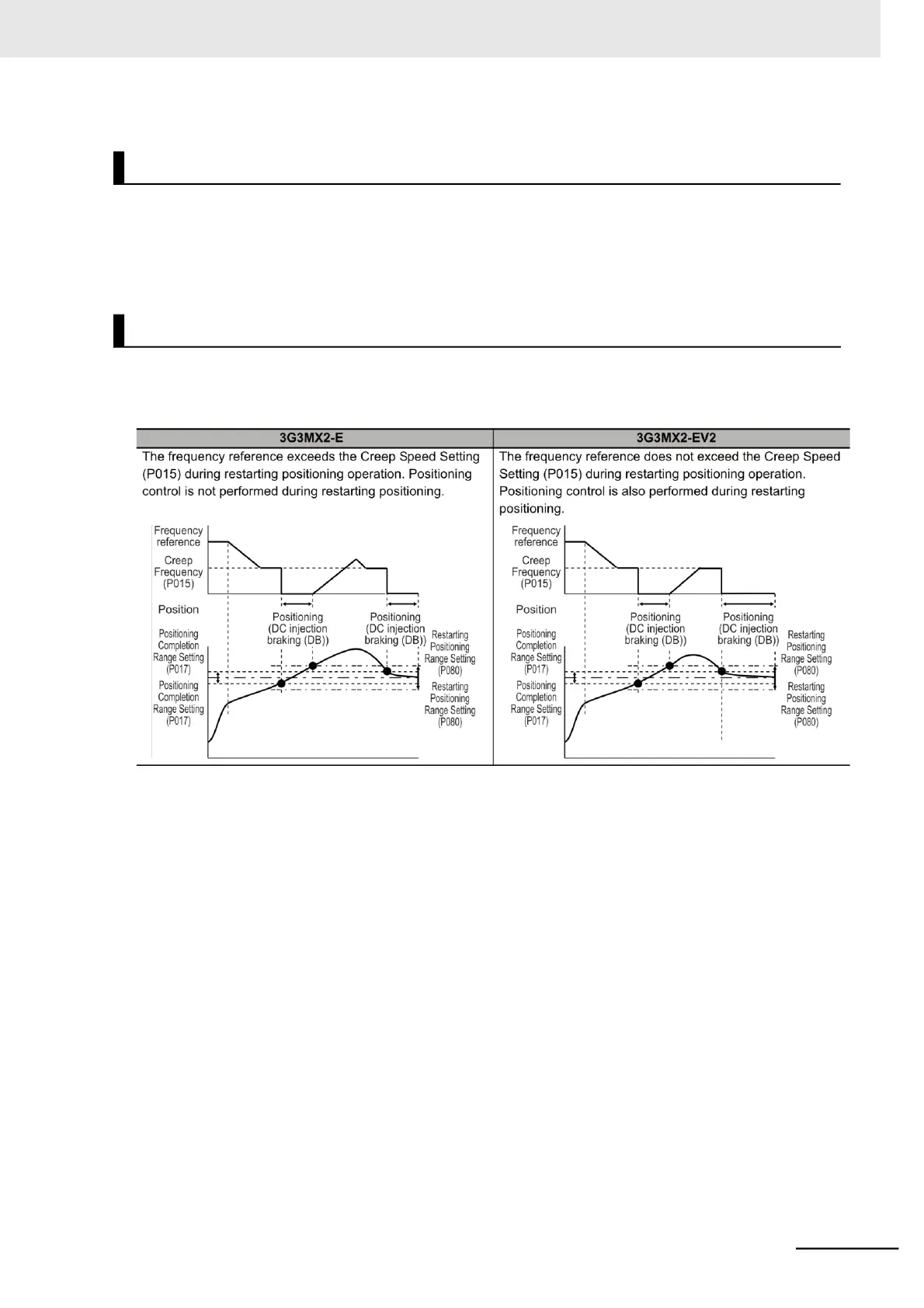

The operation of restarting positioning is changed as follows. Refer to 6-7-5 Restarting Positioning on
page 6-45 for restarting positioning.
Maximum Input Frequency for Pulse Input Terminal
Restarting Positioning
