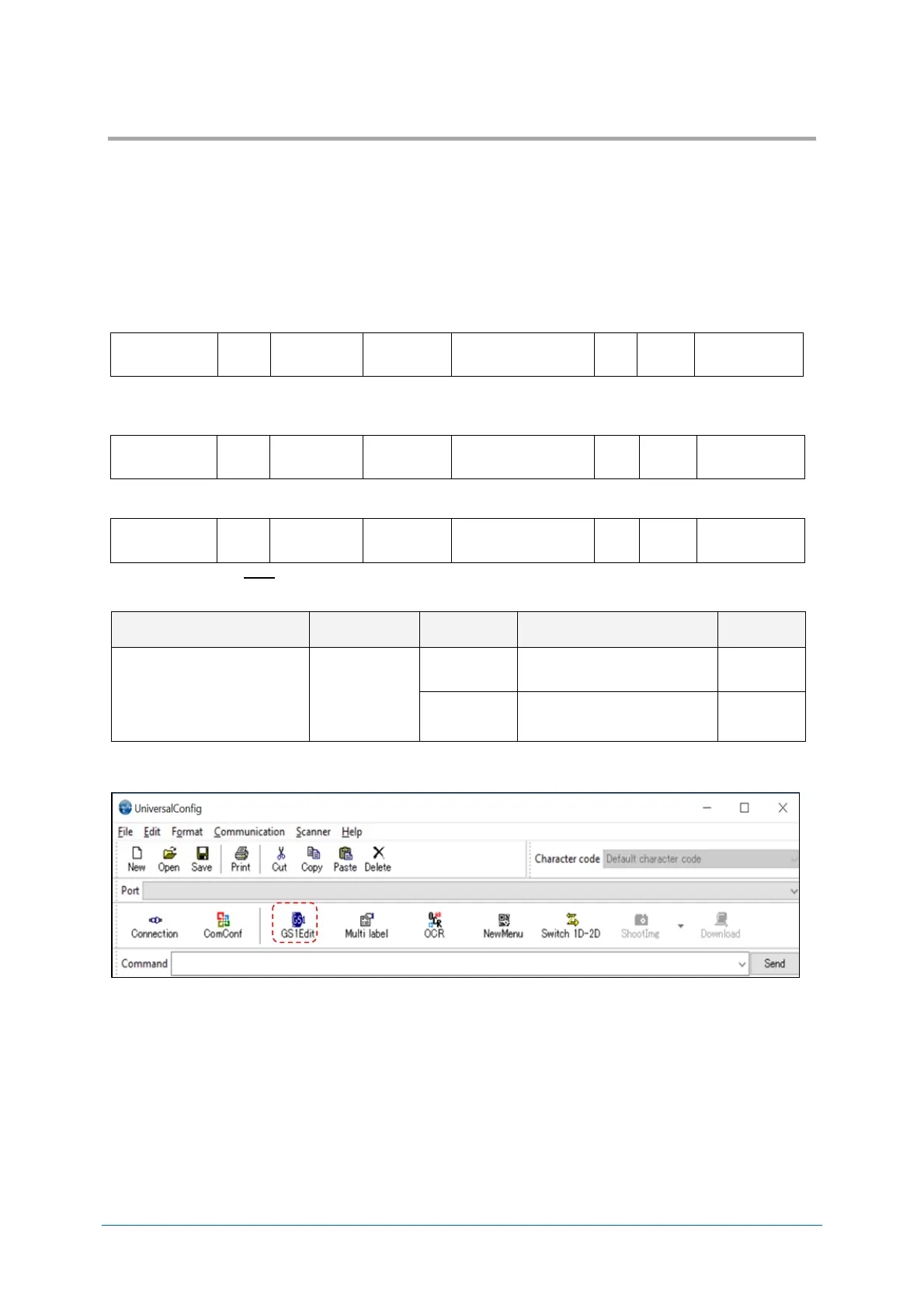

Setting of Code Common Options
6.2
GS1 Convert 6.2.1
FNC1 that indicate variable length termination will not be transmitted when reading GS1 symbol (GS1-
128, GS1 DataBar, GS1 DataBar Composite, GS1 DataMatrix, GS1 QR Code) label with default
setting. This is because FNC1 is not included in ASCII. For GS1 conversion, in order to analyses the
GS1 data at the host side, convert valuable length data termination FNC1 to ”Ctrl+]” and key outputs
for USB-HID, and for USB-COM and RS-232C, convert to GS(0x1D) and outputs. However, if the last
of valuable length data is AI data, FNC1 does not exist and GS is not outputted.
<Initial setting status>
FNC1
(Non-output)
AI
Data
(Fixed length)
AI Data
(Variable
length)
FNC1
(Non-output)
･･･
AI
AI Data
(Variable length)
↓
＜GS1 after conversion＞
・For USB-HID
AIM-ID
(output)
AI
Data
(Fixed length)
AI Data
(Variable
length)
Ctrl+]
(Key output)
･･･
AI
AI Data
(Variable length)
・For USB-COM and RS-232C
AIM-ID
(output)
AI
Data
(Fixed length)
AI Data
(Variable
length)
GS(0x1D)
(Output)
･･･
AI
AI Data
(Variable length)
* For AIM-ID, refer to 9.1.2.
GS1 conversion setting can be set by following menu / command.
GS1 conversion
supported symbologies
Item
Command
Command description
Initial
setting
GS1-128
GS1 DataBar
GS1 DataBar Composite
GS1 Data Matrix
GS1 QR Code
GS1 Convert
[X/0
Disable GS1 conversion

[X/4
Enable GS1 conversion
■ To process and output GS1 conversion data within the scanner.
Our application tool “UniversalConfig” enables processing and outputting GS1 symbol data.
