Opticon L-46X - Interleaved 2 of 5 and S-Code

Chapter-6
Code Options
L-46X User's Manual
75
1st

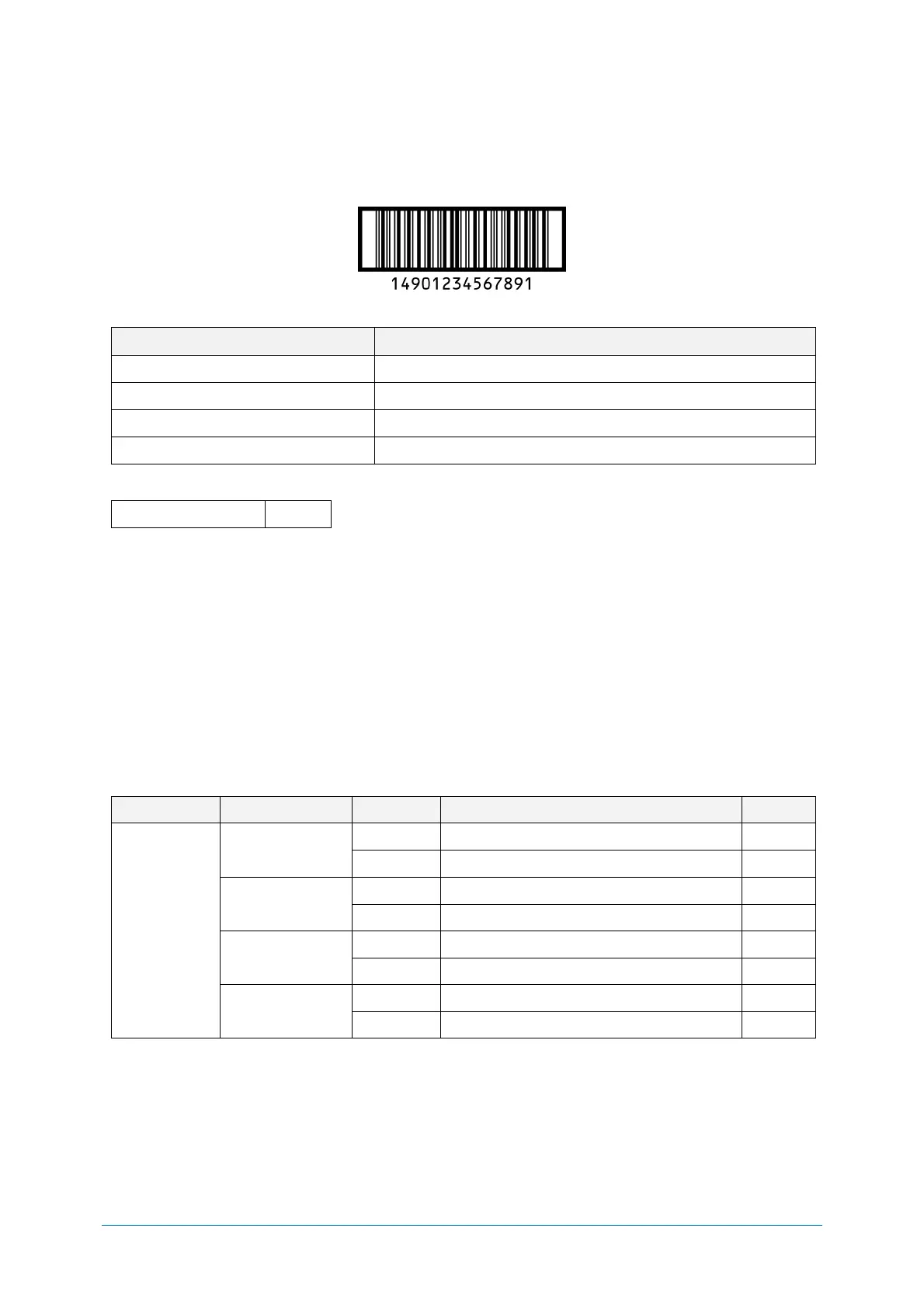

Interleaved 2 of 5 and S-Code
6.3.5
Interleaved 2 of 5 is a symbol standardized by ISO/IEC 16390 as the standard distribution symbol ITF.
Interleaved 2 of 5 Overview
Following are the Interleaved 2 of 5 configurations.
Item
Overview
Character set
Numeric (0-9)
Start / Stop code
Hidden character
Digits
Variable length (even number)
CD (check digit) check method
Modulus 10 / Wait 3
Transfer data format
Data variable length
CD
● Setting items
Interleaved 2 of 5 CD check
Whether to check CD (check digit) or not is configurable. This setting also configures Interleaved 2 of
5, Industrial 2 of 5, S-Code and Matrix 2 of 5 CD check or not.
Interleaved 2 of 5 CD transmit
Whether to transfer CD (check digit) or not is configurable. This setting also configures Interleaved 2
of 5, Industrial 2 of 5, S-Code and Matrix 2 of 5 CD transfer or not.
Industrial 2 of 5 space check
Whether to enable / disable the space (inter-character gap) check of Industrial 2 of 5 which has large
or irregular spaces can be set.
Following are the Interleaved 2 of 5 and Industrial 2 of 5 optional setting.
Code
Item
Command
Description
Default
Interleaved
2 of 5
S-Code
CD check
G0
Not check CD

G1
Check CD
CD transmission
E0
Transmit CD

E1
Not transmit CD
Space check
GK
Disable space check for Industrial 2 of 5
GJ
Enable space check for Industrial 2 of 5

S-Code
conversion
GH
Not transmit S-Code as Interleaved 2 of 5

GG
Transmit S-Code as Interleaved 2 of 5
