opto engineering ITALA - Gige Vision Mechanical Requirements

Itala | INSTRUCTION MANUAL

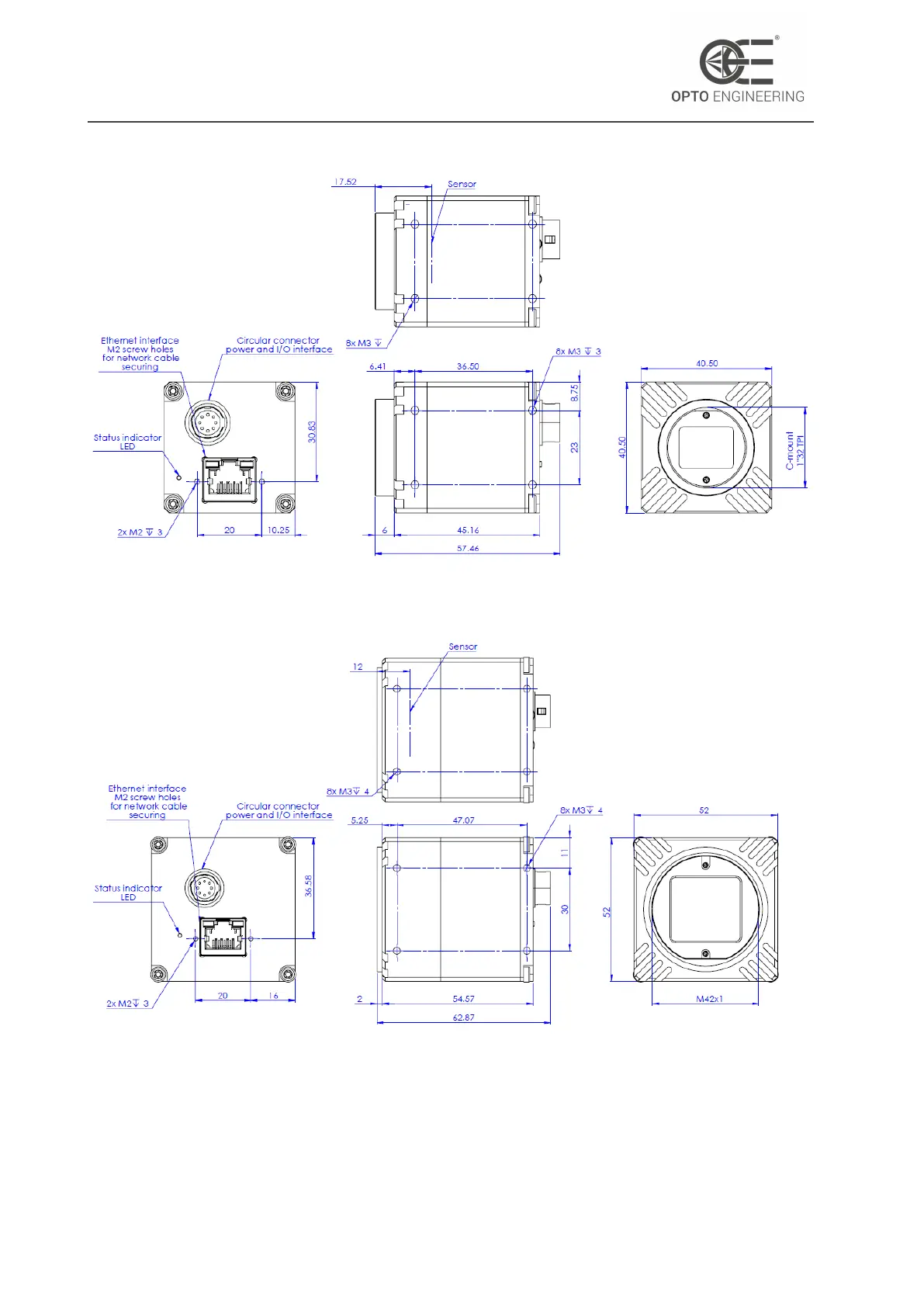

TYPE 2 dimensional drawings
5.5.2 GigE Vision mechanical requirements
Itala cameras comply with GigE Vision mechanical requirements. In particular, the standard adopted
is the one defined as TYPE090 in the GigE Vision Mechanical Supplement.
v1.12 - eng 49
