Itala | INSTRUCTION MANUAL

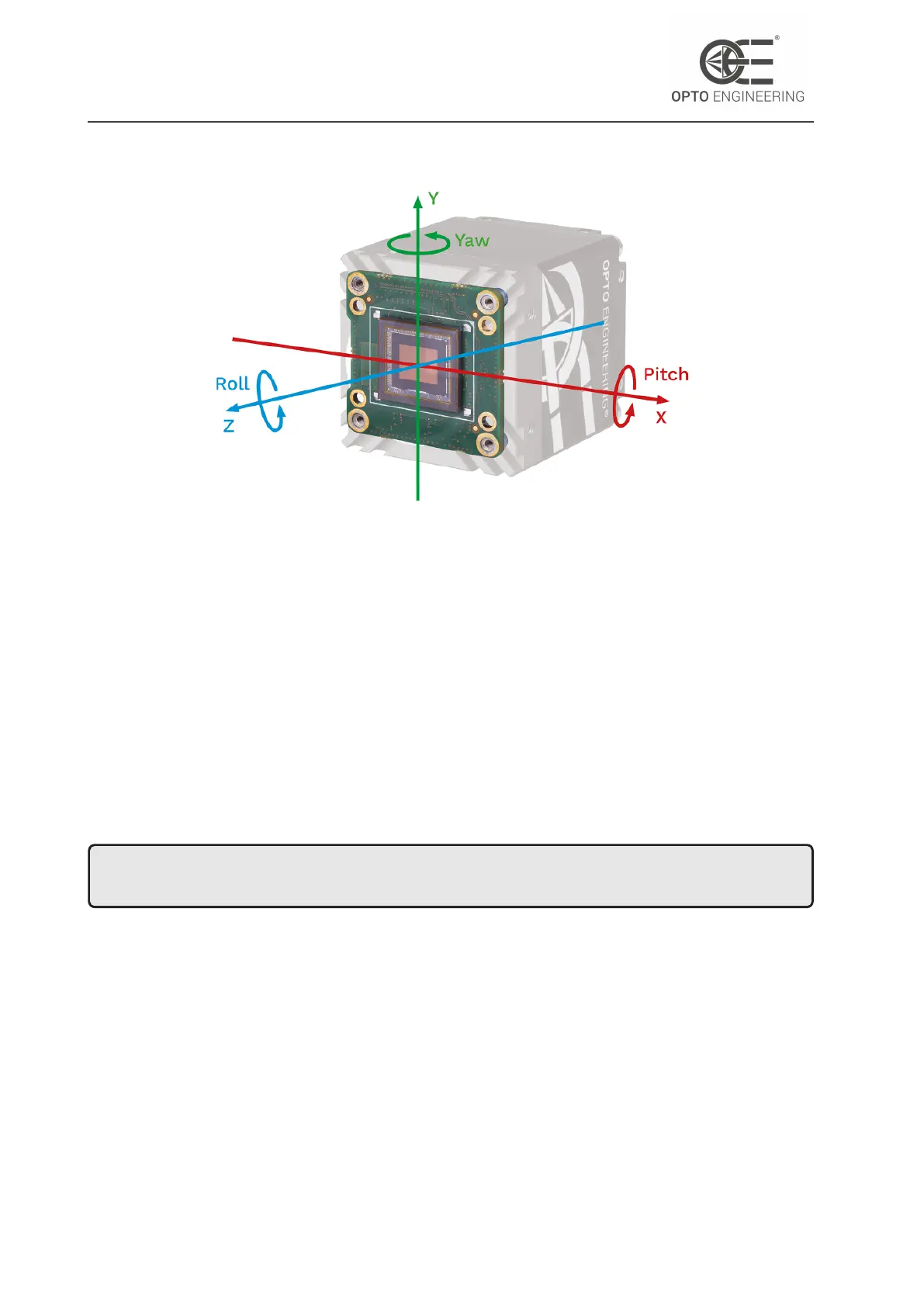

Figure 32: Sensor degrees of freedom.
5.6 Connectors and pinout
The camera has two connectors:
• Standard RJ45 connector with screw locks
Connection for image streaming and (optionally) for camera powering via PoE.
• 12-pin circular connector (P/N: HR10G-10R-12PB(71))
This connector has multi-purpose pins: power supply, trigger, synchronism, serial communi-
cation, liquid lens driver. The pinout is not fixed and depends on the camera model (standard
or with liquid lens controller). Refer to Table 12 to see the pinout for both the camera models.
NOTE: If a CBGPIO001 cable is used, check Opto Engineering® website to get the "color vs func-
tion" association.
v1.12 - eng 51
