Itala | INSTRUCTION MANUAL

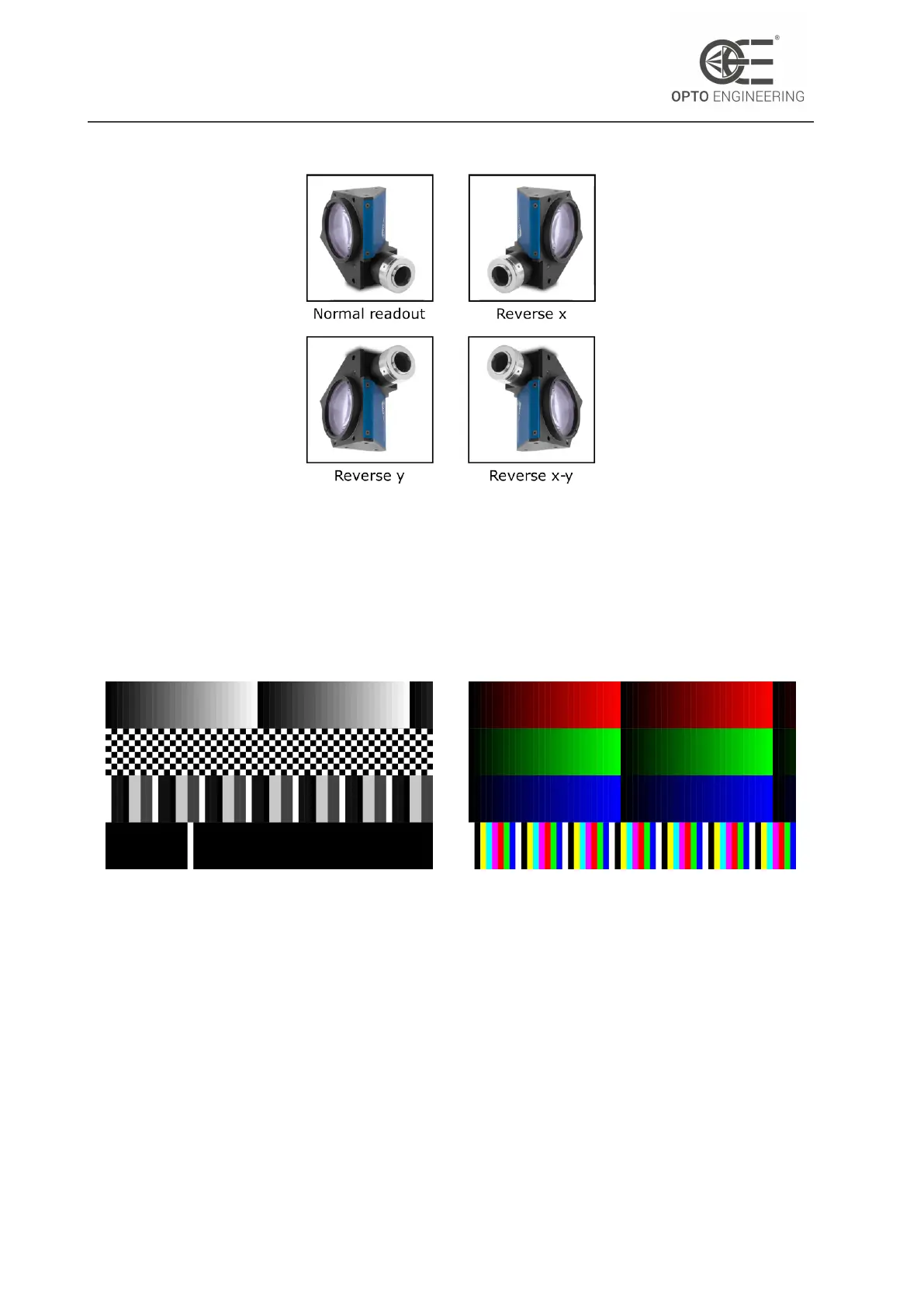

Figure 41: Representation of all the four
possible readout modes.
6.2.5 Test pattern
Itala cameras support two different test patterns, one monochrome and one color.
The two different test patterns are represented in Fig. 42 and 43.
Figure 42: Monochrome test pattern Figure 43: Color test pattern
The monochrome pattern is characterized by 4 different section:
• a fixed gradient pattern, from black to white;
• a fixed chess pattern;
• a fixed asymmetrical bars pattern (values: 0xC8, 0x10, 0x10, 0x42);
• a white moving line on a black background.
The color pattern is characterized by 4 different section:
• a fixed red gradient pattern, from black to red;
• a fixed green gradient pattern, from black to green;
v1.12 - eng 62
