Remove the FIM
2.
Remove the top cover from the storage drive cage.
a.

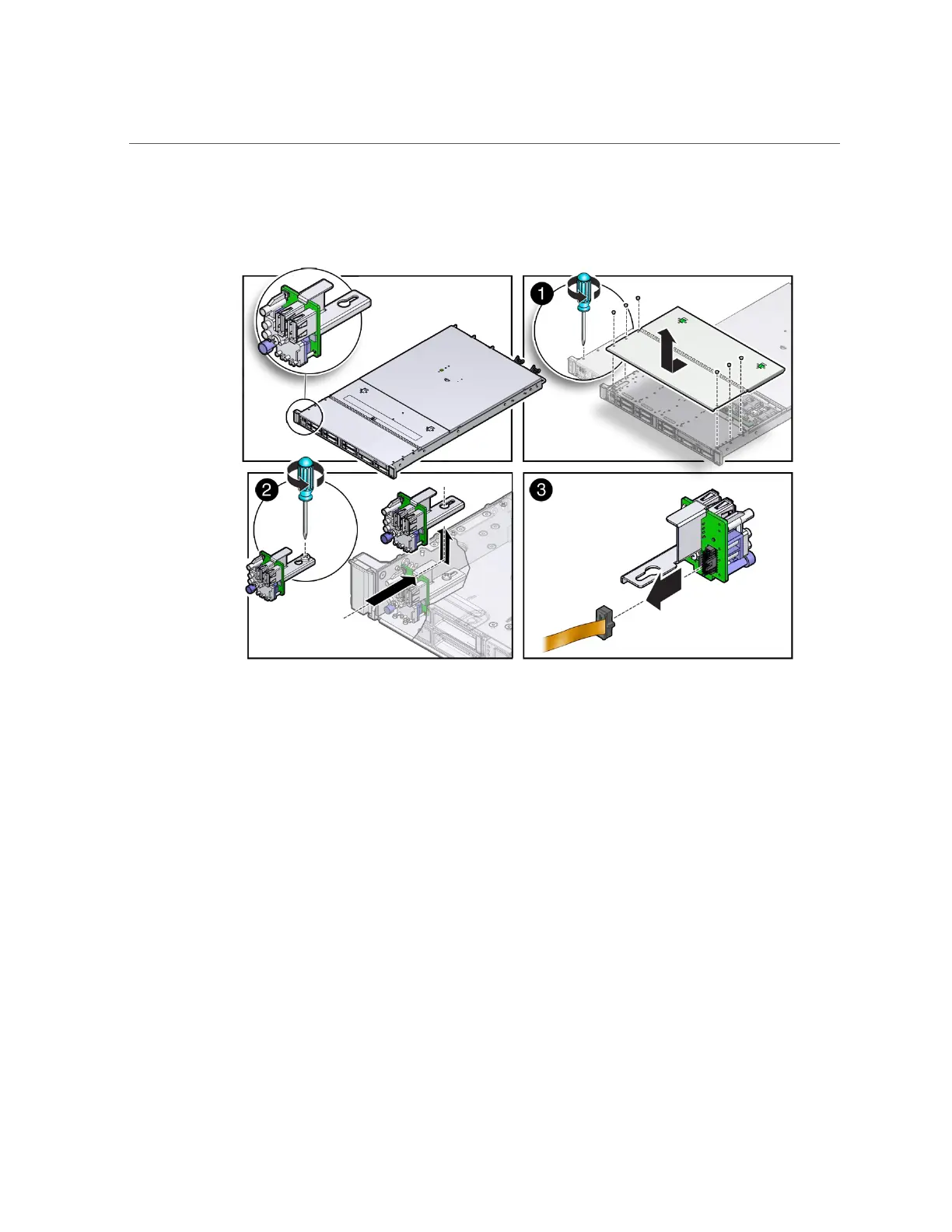

Remove the six Phillips screws from the top of the storage drive cage (1).
There are three Phillips screws on each side of the storage drive cage.
b.
Open the server fan door.
See “Open the Server Fan Door” on page 48.
c.
Slide the storage drive cage cover forward (toward the front of the server)
and lift it up.
3.
Loosen the screw that secures the FIM assembly to the server chassis (2).
4.
Carefully slide the FIM assembly toward the rear of the server enough to lift it
over the Phillips screw and out of the server (2).
5.
Disconnect the FIM cable from the FIM assembly and set the assembly aside (3).
112 SPARC S7-2 Server Service Manual • March 2017
