Install a PCIe Riser Into PCIe Slot 1 or 2
Install a PCIe Riser Into PCIe Slot 1 or 2
Note - The PCIe riser that is installed for PCIe slots 3 and 4 is different than the risers for PCIe
slots 1 and 2. Do not attempt to install a PCIe riser from slot 1 or 2 into PCIe slots 3 and 4 and
vice versa.
1.
Determine into which slot you will install the PCIe riser.
2.
Retrieve the PCIe riser and any PCIe cards attached to it.
3.

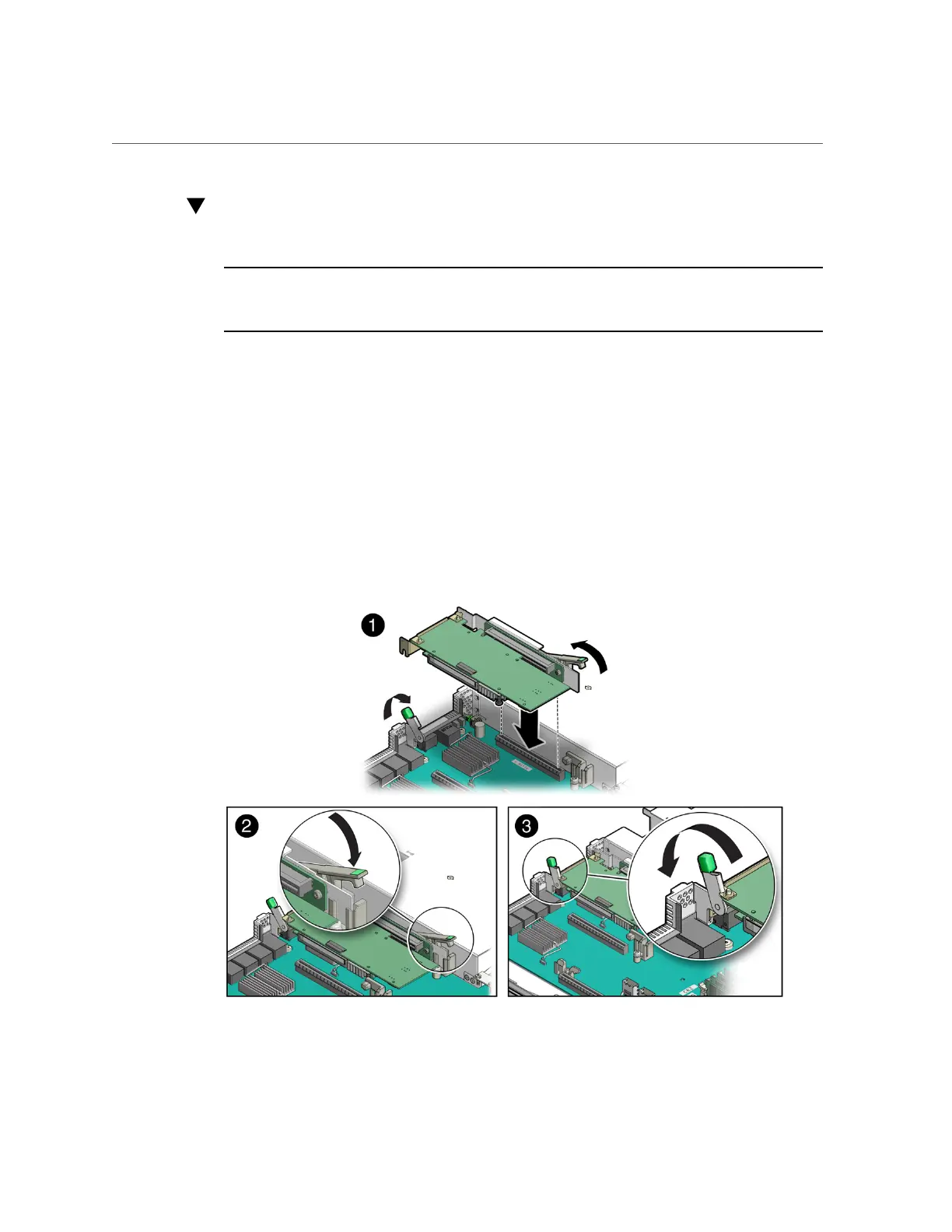

Raise the green-tabbed release lever on the PCIe riser to the open (up) position
(1).
4.
Gently press the riser into the motherboard connector until it is seated, and
then press the green-tabbed release lever on the PCIe riser to the closed (down)
position (2).
Servicing PCIe Cards 91
