Internal Component Locations
Internal Component Locations

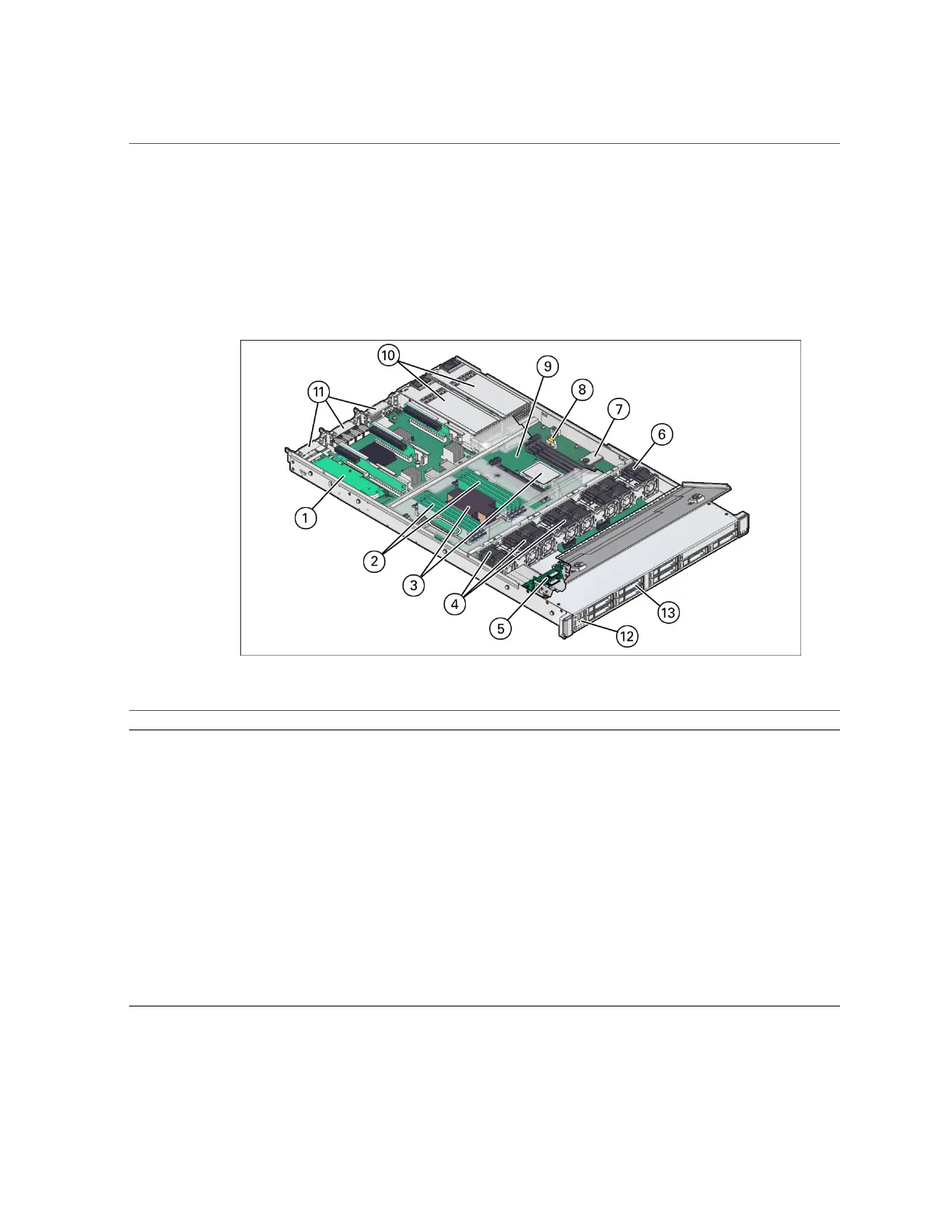

This figure identifies the replaceable component locations with the top cover removed.
No. Component Links
1 Internal HBA card (slot 4) “Servicing the Internal HBA Card” on page 101
2 DIMMs (for CPU 0) “Servicing DIMMs” on page 75
3 Processor modules and heat sinks (only CPU 0 shown) “Servicing the Motherboard” on page 135
4 Fan modules 0,1, and 2 “Servicing Fan Modules” on page 61
5 Drive backplane “Servicing the Drive Backplane” on page 127
6 Fan module 3 (or fan filler in a single-processor server) “Servicing Fan Modules” on page 61
7 eUSB drive “Servicing the eUSB Drive” on page 115
8 Battery “Servicing the Battery” on page 83
9 Motherboard “Servicing the Motherboard” on page 135
10 Power supplies “Servicing Power Supplies” on page 69
11 PCIe slots 1, 2, and 3 “Servicing PCIe Cards” on page 87
12 Front Indicator Module “Servicing the Front Indicator Module” on page 111
13 Drives “Servicing Drives” on page 51
