Servicing PCIe Risers
PCIe Riser Location and Differences
The PCIe riser that is installed for PCIe slots 3 and 4 is different than the risers for PCIe slots
1 and 2. The riser for slots 3 and 4 supports two cards, a standard PCIe card and the internal
HBA card. Do not attempt to install the PCIe riser for PCIe slots 3 and 4 in slots 1 or 2, and vice
versa.

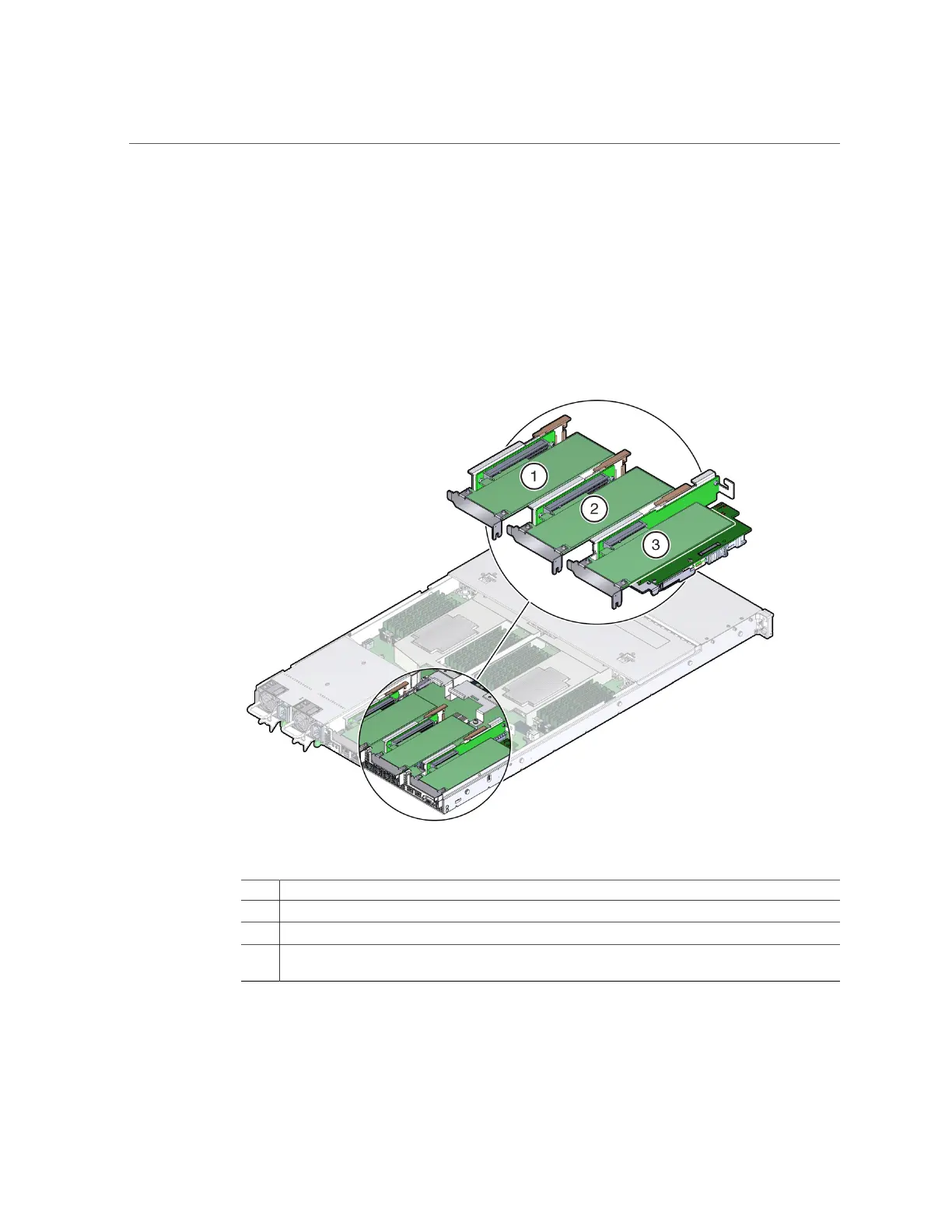

No. Description
1 PCIe riser and installed PCIe card in slot 1
2 PCIe riser and installed PCIe card in slot 2
3 PCIe riser and installed cards (2) in slots 3 and 4 (the internal HBA card is installed slot 4 of this riser.)
Note:This riser is different from the risers in slots 1 and 2.
