Install a DIMM
4.

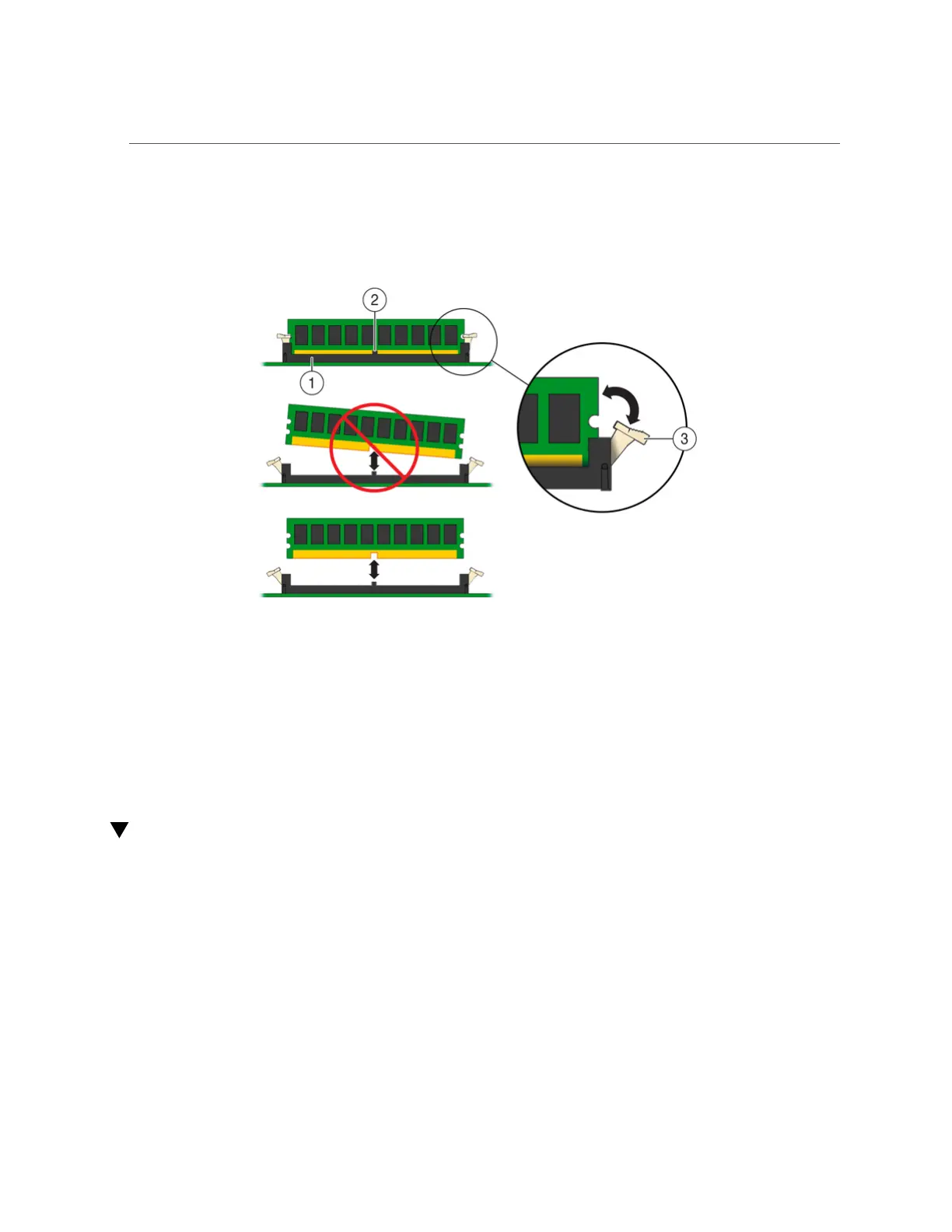

To remove the failed DIMM, rotate both DIMM socket ejectors outward as far as
they will go, then carefully lift the DIMM straight up to remove it from the socket.
5.
Replace each failed DIMM with either another DIMM of the same rank size (quad-
rank, dual-rank, or single-rank) or leave the socket empty.
Related Information
■
“DIMM Layout and Population Rules” on page 75
■
“Install a DIMM” on page 78
Install a DIMM
This is a cold-service procedure that can be performed by a customer. Power down the server
completely before performing this procedure.
1.
Unpack the replacement DDR4 DIMM and place it on an antistatic mat.
2.
Ensure that the replacement DDR4 DIMM matches the size of the DIMM it is
replacing.
78 SPARC S7-2 Server Service Manual • March 2017
