Install the eUSB Drive
2.

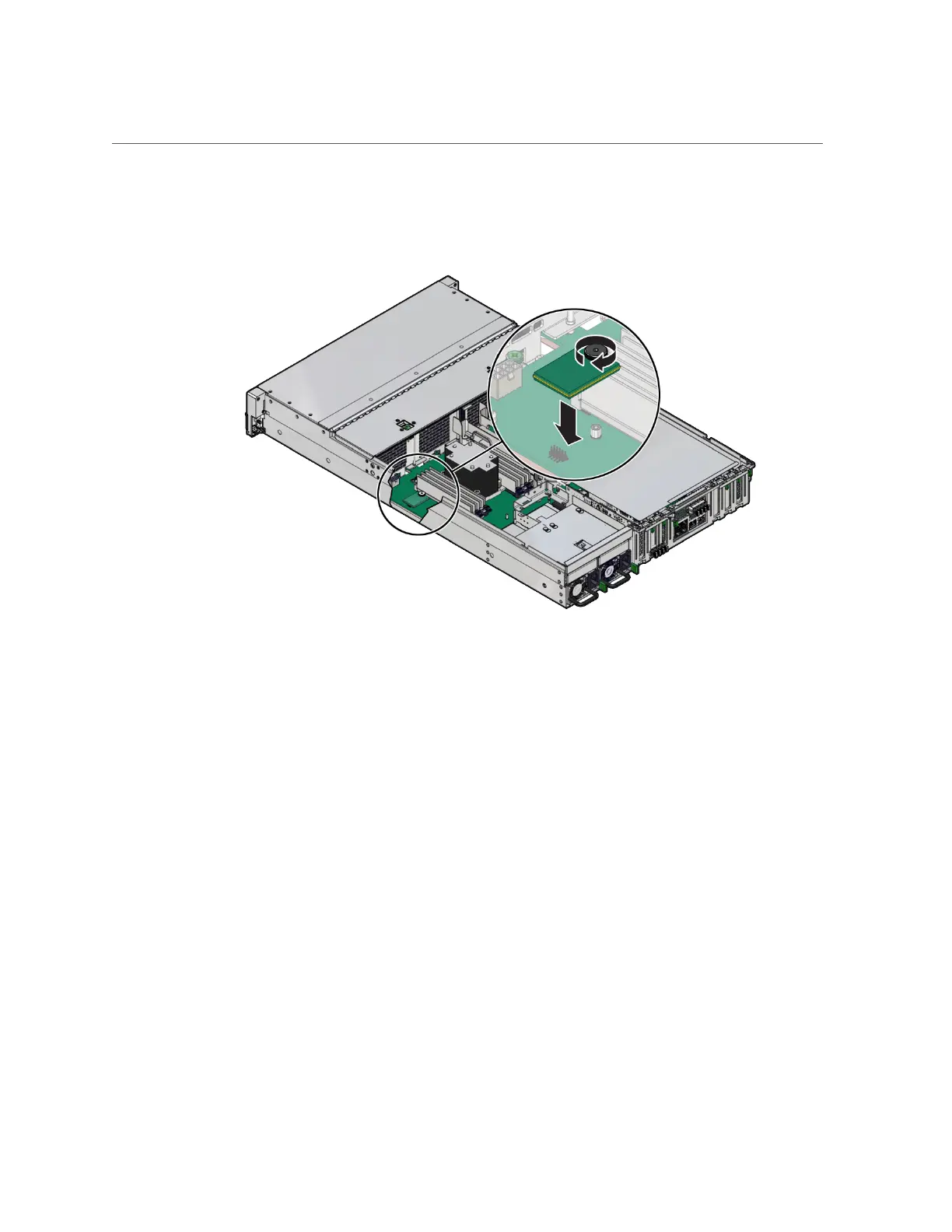

Press the new eUSB drive into the socket on the motherboard.
3.
Tighten the screw to secure the drive to the motherboard.
4.
Return the server to operation.
See
“Returning the Server to Operation” on page 145
.
Related Information
■
“Remove the eUSB Drive” on page 115
Servicing the eUSB Drive
117
116
118
Table of Contents
Default Chapter
5
Table of Contents
5
Using this Documentation
9
Product Documentation Library
9
Feedback
9
Identifying Components
11
Front Panel Components
11
Rear Panel Components
13
Internal Component Locations
14
Device Paths
15
Server Block Diagram
18
Detecting and Managing Faults
21
Checking for Faults
21
Log in to Oracle ILOM (Service)
22
Identify Faulted Components
22
Identify Disabled Components
25
Performing Advanced Troubleshooting
26
Check the Message Buffer
26
View Log Files (Oracle Solaris)
27
View Log Files (Oracle ILOM)
27
POST Overview
28
Configure POST
28
Oracle ILOM Properties that Affect POST Behavior
30
Clear a Fault Manually
31
Preparing for Service
33
Safety Information
33
Safety Symbols
34
ESD Measures
34
Antistatic Wrist Strap Use
34
Antistatic Mat
35
Service Tools
35
Fillers
35
Find the Server Serial Number
36
Locate the Server
37
Removing Power from the Server
37
Prepare to Power off the Server
38
Power off the Server
38
Disconnect Cables from the Server
40
Accessing Server Components
40
Gain Access to the Internal Server Components.
41
Prevent ESD Damage
41
Extend the Server to the Service Position
41
Related Information
41
Remove the Cable Management Arm
42
Remove the Server from the Rack
47
Open the Server Fan Door
48
Remove the Top Cover
49
Related Information
49
Servicing Drives
51
Drive Leds
51
Remove a Drive
52
Remove a Drive Filler
55
Install a Drive
56
Install a Drive Filler
58
Verify a Drive
58
Servicing Fan Modules
61
Fan Module Leds
62
Remove a Fan Module
63
Install a Fan Module
65
Verify a Fan Module
66
Servicing Power Supplies
69
Power Supply Leds
69
Remove a Power Supply
70
Install a Power Supply
72
SPARC S7-2 Server Service Manual • March
72
Servicing Dimms
75
DIMM Layout and Population Rules
75
Identify and Remove a Failed DIMM
76
Install a DIMM
78
Verify a DIMM
80
Related Information
82
Servicing the Battery
83
Replace the Battery
83
Servicing Pcie Cards
87
Servicing Pcie Risers
87
Pcie Riser Location and Differences
88
Remove a Pcie Riser from Pcie Slot 1 or 2
89
Install a Pcie Riser into Pcie Slot 1 or 2
91
Remove the Pcie Riser from Pcie Slots 3 and 4
92
Install the Pcie Riser into Pcie Slots 3 and 4
94
Related Information
94
Servicing Pcie Cards
96
Pcie Slot Characteristics
97
Remove a Pcie Card from Pcie Slot 1 or 2
98
Install a Pcie Card in Pcie Slot 1 or 2
99
Remove a Pcie Card from Pcie Slot 3
100
Install a Pcie Card in Pcie Slot 3
101
Servicing the Internal HBA Card
101
Remove the Internal HBA Card from Pcie Slot 4
102
Install the Internal HBA Card in Pcie Slot 4
105
Servicing the Front Indicator Module
111
Remove the FIM
111
Install the FIM
113
Servicing the Eusb Drive
115
Remove the Eusb Drive
115
Install the Eusb Drive
116
Servicing Cables
119
Remove the HBA SAS Cable Assembly
119
Install the HBA SAS Cable Assembly
121
Remove the Nvme Cables
122
Related Information
122
Install the Nvme Cables
124
Servicing the Drive Backplane
127
Remove the Drive Backplane
127
Install the Drive Backplane
130
Verify the Drive Backplane
132
Servicing the Motherboard
135
Remove the Motherboard
136
Down the Server Completely before Performing this Procedure
136
Prepare for Servicing
136
Install the Motherboard
139
Verify the Motherboard
142
Returning the Server to Operation
145
Related Information
145
Replace the Top Cover
145
Return the Server to the Normal Operating Position
147
Reconnect Data Cables and Power Cords
149
Power on the Server
151
