Remove the NVMe Cables
2.
Remove the air baffle by lifting it straight out of the system.
3.
Remove the server fan modules.
See “Install a Fan Module” on page 65.
4.
Remove the server mid-wall.
a.
Loosen the four green captive screws that secure the mid-wall to the server
chassis, using a No. 2 Phillips screwdriver.
b.
Lift up the mid-wall slightly to disengage it, then lift it out of the server and
set it aside.
5.

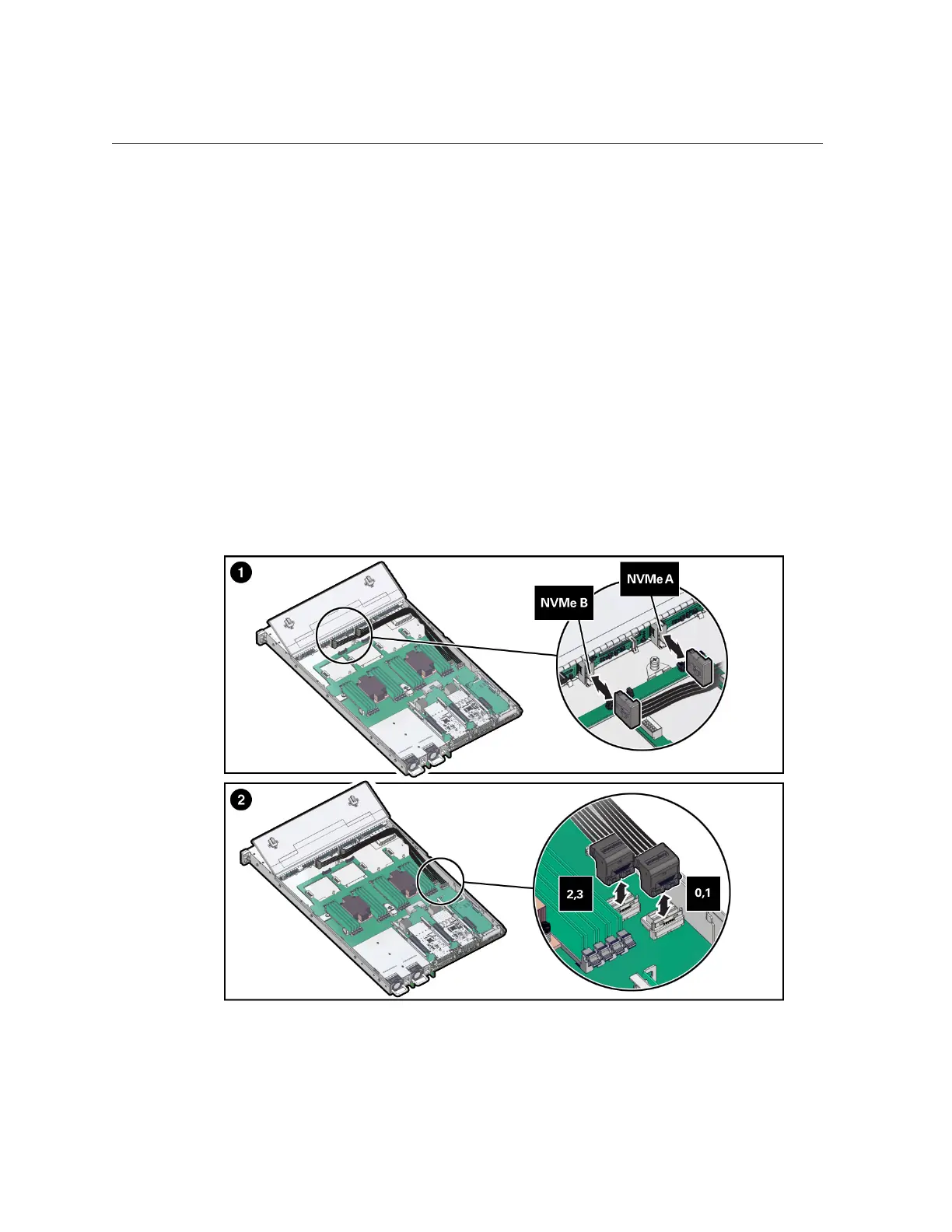

Disconnect the switch card cables from the drive backplane by pressing the
latches on the cable connectors and pull the connectors(1).
Servicing Cables 123
