Remove a Fan Module
a.

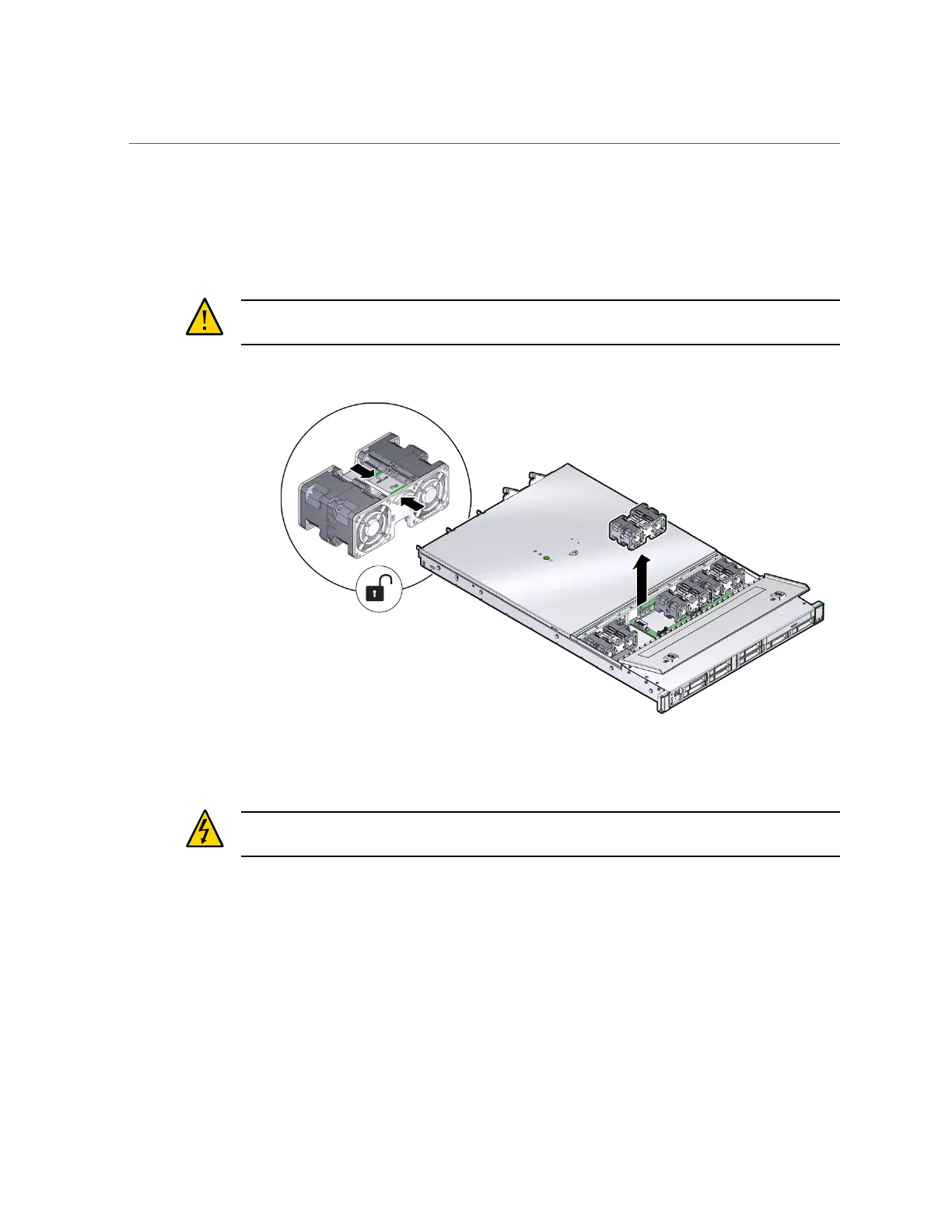

Using your thumb and forefinger, grasp the fan module in the finger
recesses located in the plastic between the fans.
b.
Lift the fan module straight up and out of the chassis.
Caution - When removing a fan module, do not rock it back and forth. Rocking a fan module
can cause damage to the motherboard connectors.
6.
Set the fan module aside.
Caution - Do not service any other components in the fan compartment unless the system is
shut down and the power cords are removed.
7.
Consider your next step:
■
If you removed the fan assembly as part of another procedure, return to that procedure.
■
Otherwise, continue to “Install a Fan Module” on page 65.
64 SPARC S7-2 Server Service Manual • March 2017
