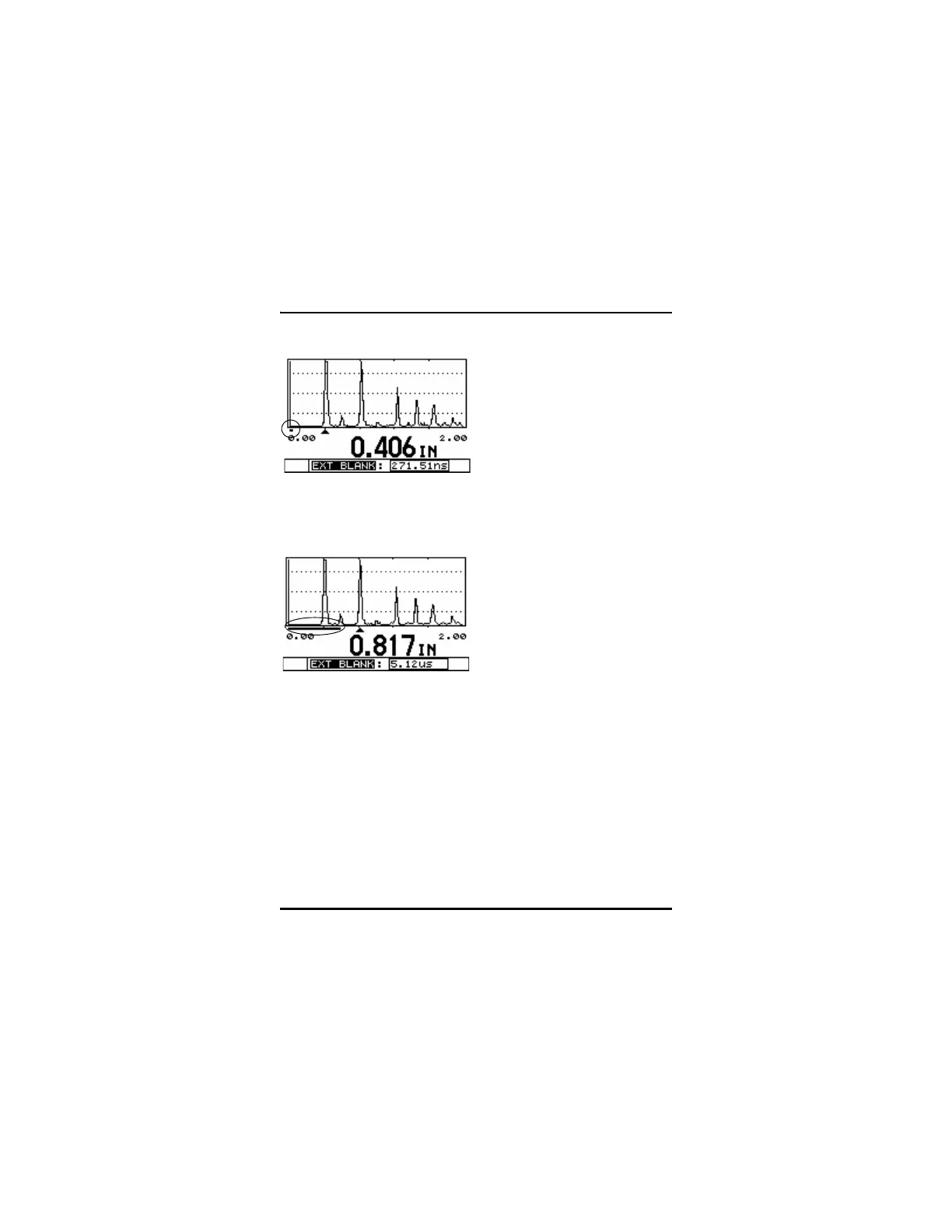

Gage Measuring First Echo Over the 20% Gradicule After the
End of the Extended Blank
4.13.3 E1 (Echo1) Blank
The E1 blank adjustment is only selectable when the gage
measurement type is set to Manual Echo-to-Echo. This Blank is used
to block out the trailing edge of the first detected backwall echo and
any noise signals that may appear between backwall echoes in Manual
Echo-to Echo mode.
E1 Blank is used in Manual Echo-to-Echo along with Gain Adjust and
