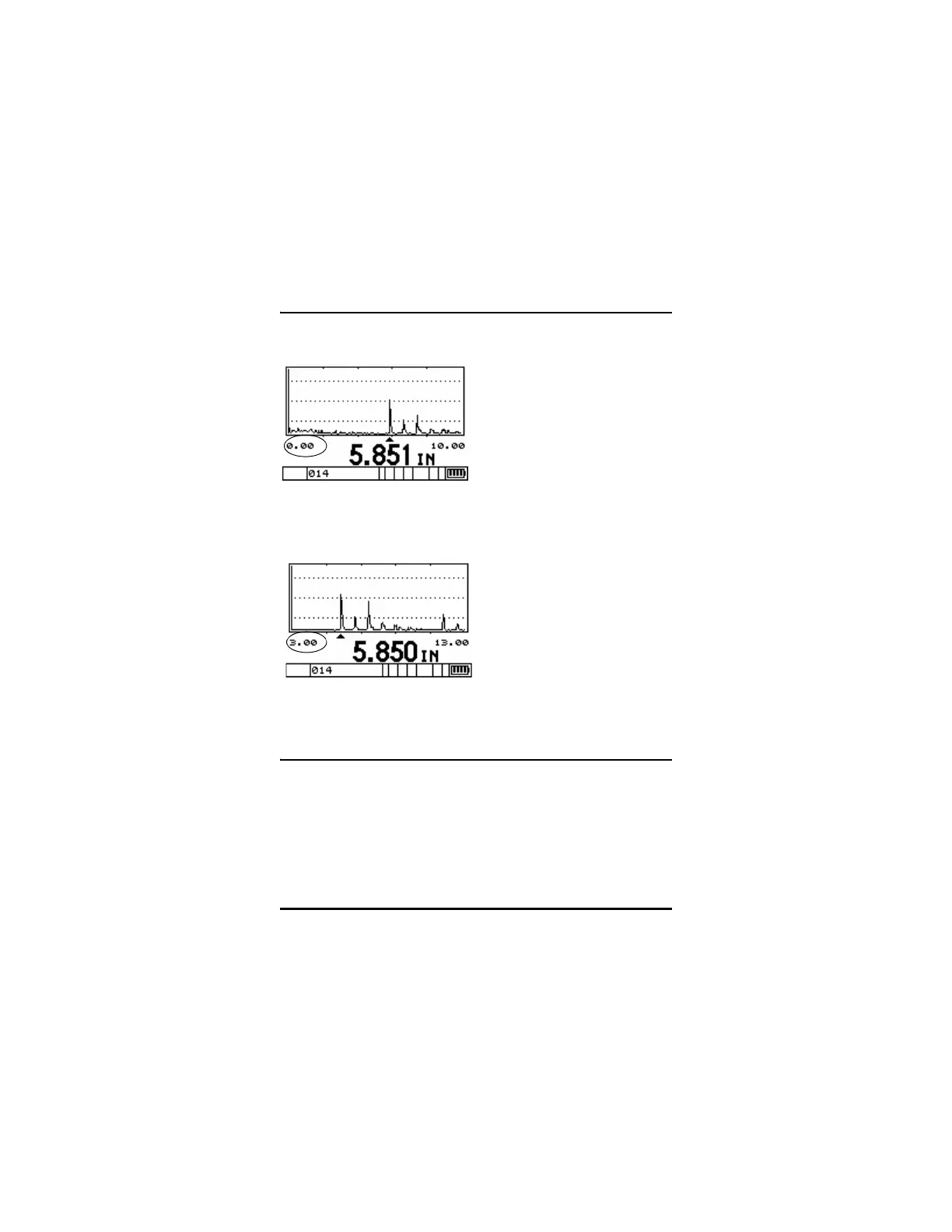

Delay Set to 0.00"
Delay Set to 3.00
4.14 B-scan
B-scan converts thickness readings to cross-sectional image profiles.
The B-scan function is used to scan over an area and look at how the
cross sectional thickness is changing. The B-scan, DB Grid, and
Optional Waveform are mutually exclusive features. Only one of
these functions can be active at a time. Activation of one of these
functions will automatically deactivate any of the others. You can save
these images (datalogger versions only) in the gage internal
