MEW01623 Rev: - EBL128 Operating Instructions V2.0.x
43
 Any manual call point
 Any zone line input
 Any programmable input with the trigger condition "General
Fire"

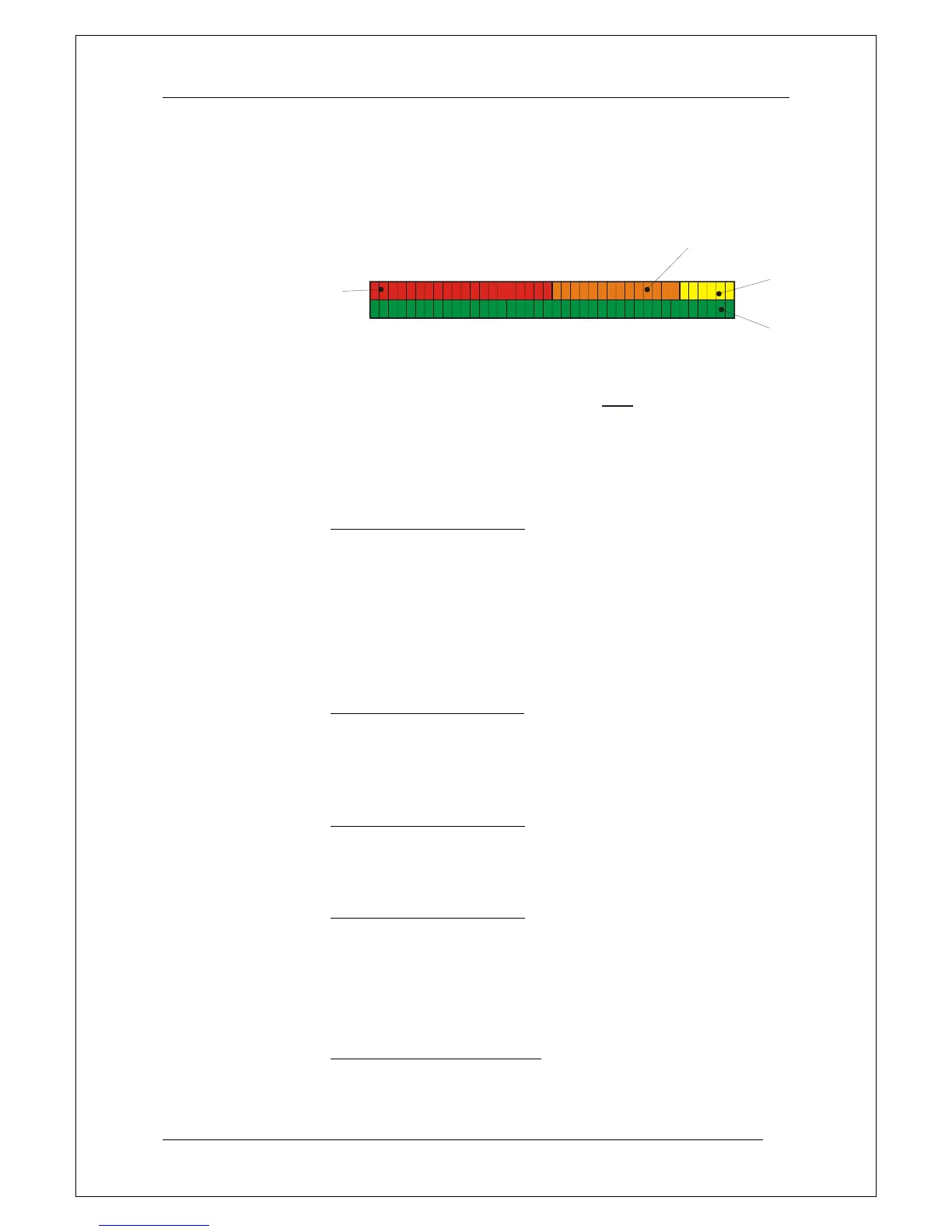

Fire alarm presentation in the EBL128 display
38
:
Comments to the different fields
38
:
The information in the field A:
NNN ZONE-ADDR ZZ-AA
or
NNN ZONE ZZ
NNN = a serial number for the displayed alarm, i.e. 001 for the first
activated alarm (ZZ-AA), 002 for the second alarm and so on.
ZZ = zone number 01 – 99. AA = address 01 – 99
The information in the field B:
LAST ZONE zz
zz = zone number 01 – 99 for the most recent zone in alarm.
Displayed also if only one alarm point is in alarm.
The information in the field C:
No. nn
nn = 01 – 99 = the total number of zones (not alarm points) in alarm.
The information in the field D:
A user definable alarm text (max. 40 characters) for the alarm
displayed in the field "A".
Some Fire alarm examples:
One alarm point (e.g. detector 12-45)
38
In the German (VdS) convention and the New Zealand convention the
presentation is different and described in separate documents.
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
6
6
7
7
7
7
8
8
8
8
9
9
9
9
0
0
0
0
A
B
C
D
A: Field for the first alarm point or zone in alarm.
By scrolling each alarm will be shown in this field.
B: Field for the most recent (last) zone in alarm.
C: Field for total number of zones in alarm.
D: Field for alarm text. (User definable.)
