High-speed Counter Function
10-20

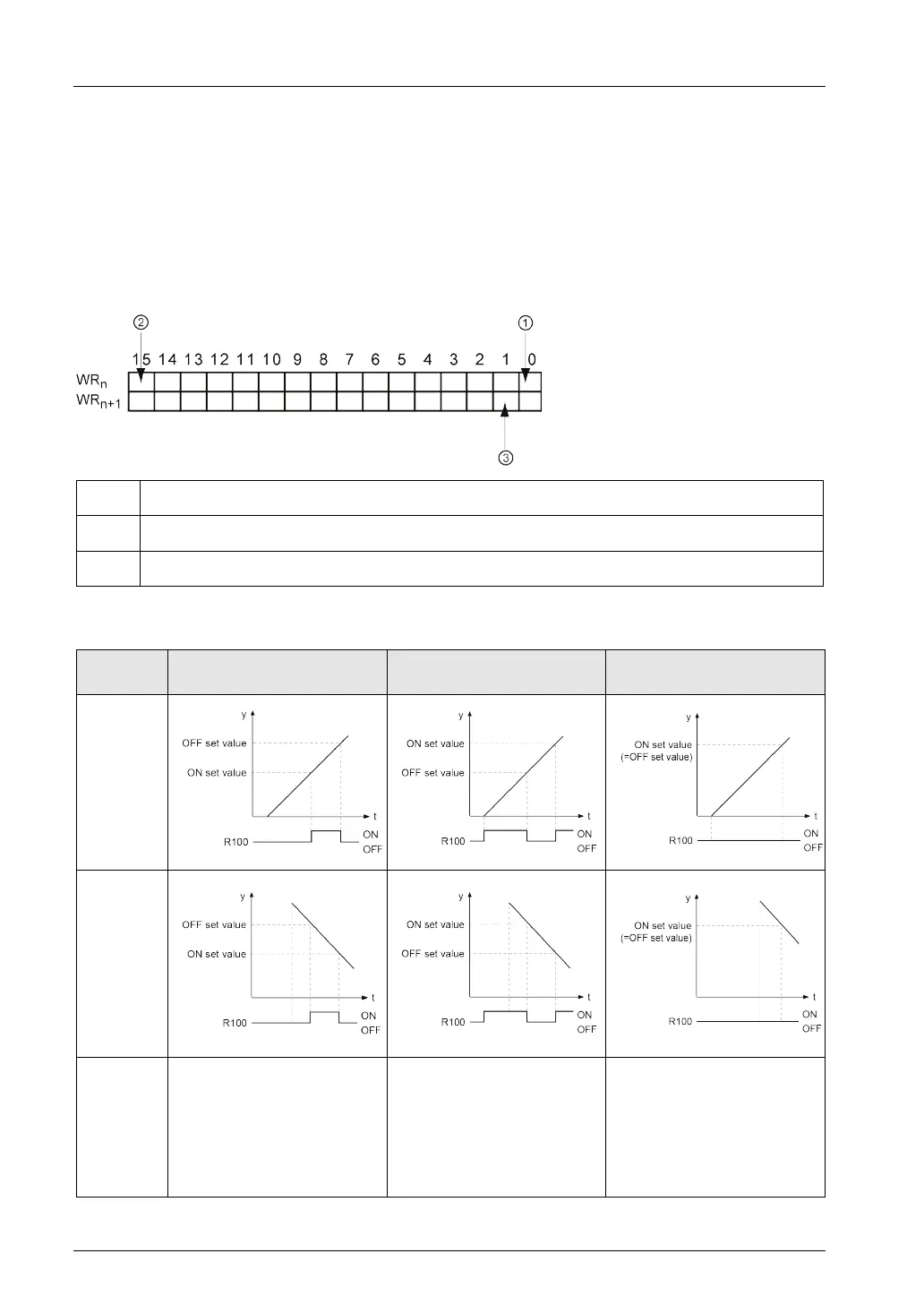

Specification of output device: [S+2] to [S+5]
• When the number of target values is set to 1-16, one word is used. When the number of
target values is set to 17-32, two words are used.
• One device is allocated to a paired target values (ON set value and OFF set value).
(Example): When the output device type is set to "Internal relay", the starting word number of
output device is set to "0", and the number of target values is set to "32", R0 to R1F are
allocated as the device for the cam output.
①
When the elapsed value reaches the target value 1, R0 turns on or off.
②
When the elapsed value reaches the target value 16, RF turns on or off.
③
When the elapsed value reaches the target value 18, R11 turns on or off.
Specification of target values: From [S+8]
The acquired output varies according to the ON set value and OFF set value.
ON set value < OFF set
value
ON set value > OFF set
value
ON set value = OFF set
value
When
added
When
subtracted
Description
When the elapsed value is
larger than or equal to the ON
set value and smaller than the
OFF set value, the
corresponding output bit turns
on. When the elapsed value is
out of the range, the
corresponding bit turns off.
When the elapsed value is
smaller than the ON set value
and larger than or equal to the
OFF set value, the
corresponding output bit turns
off. When the elapsed value is
out of the range, the
corresponding bit turns on.
When the elapsed value is out
of the range, the
corresponding bit turns off.
