Phoenix Contact RAD-900-DAIO6

Short description
3827_en_B PHOENIX CONTACT 11/138
Circuit diagram

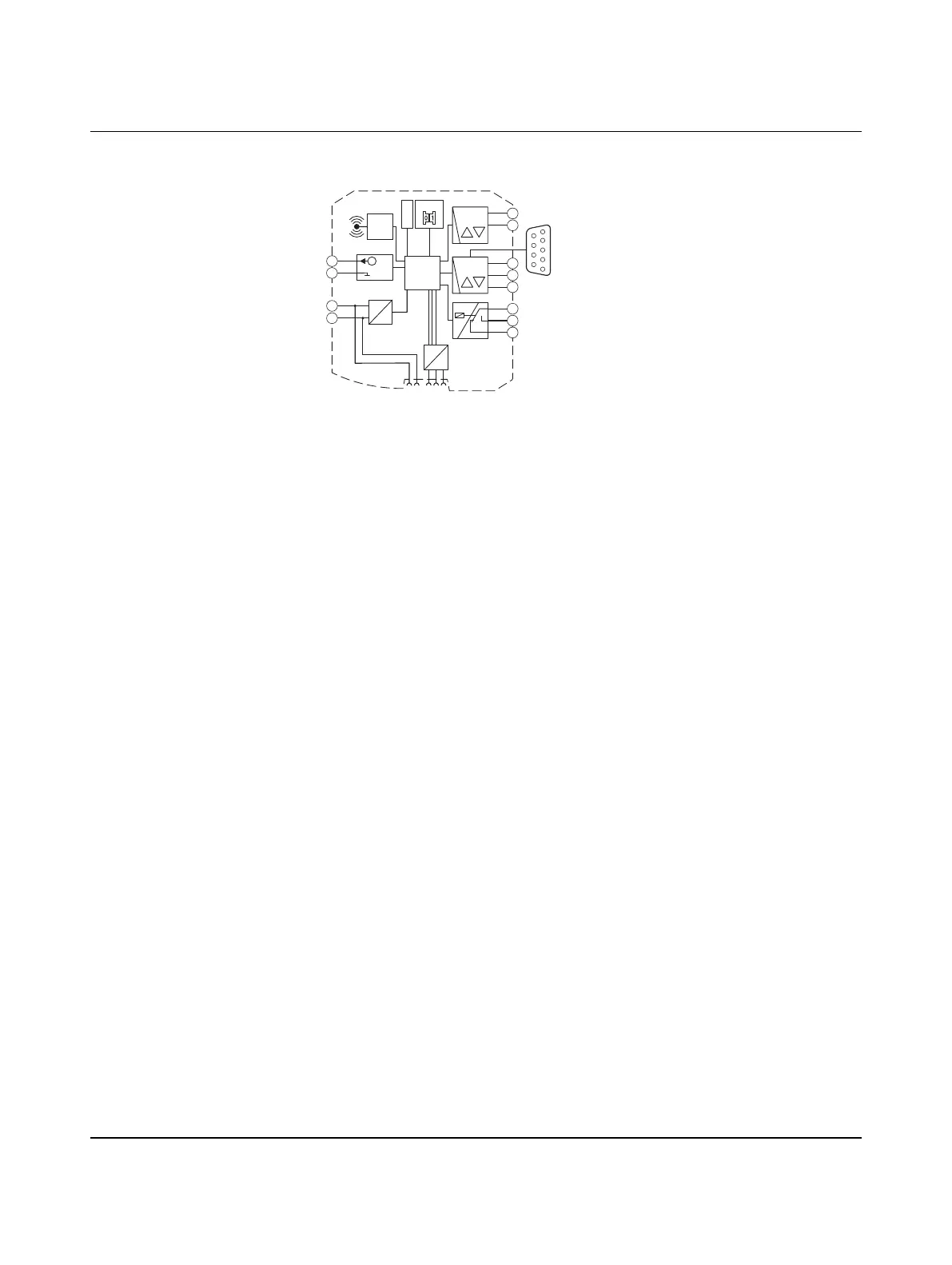

Figure 2-2 RAD-900-IFS circuit diagram
2.2 RAD-900-DAIO6
The RAD-900-DAIO6 is a NEMA 4X-rated wireless device with one analog input, one
analog output, two digital inputs, and two digital outputs directly integrated. It does not have
a serial interface.
The RAD-900-DAIO6 may be AC- or DC-powered, and addressing of the wireless module
and I/O mapping of the extension modules is carried out quickly and easily by means of the
thumbwheel on the front. You can use the yellow thumbwheel on the wireless module in
order to set both the RAD ID and I/O-MAP address. Programming knowledge is not
required. You can easily start up the wireless network without the need for software. It is
interoperable with the RAD-900-IFS.
The PSI-CONF configuration and diagnostic software for special functions and diagnostics
options in the wireless module is available free of charge.
RF
5.1
5.2
5.3
RX
TX
RS232
GND
4.1
4.2
D(A)
D(B)
RS485
RAD-ID
S-Port
1.2
1.1
+24 V
0 V
2.1
2.2
RSSI+
RSSI-
U
IFS
IFS
µC
6.1
6.2
6.3
NC
1
NO
1
COM
1
DC
DC
