The “Network Settings” tab shows the currently set network parameters as well as the
settings of the CONFSTICK, if used.

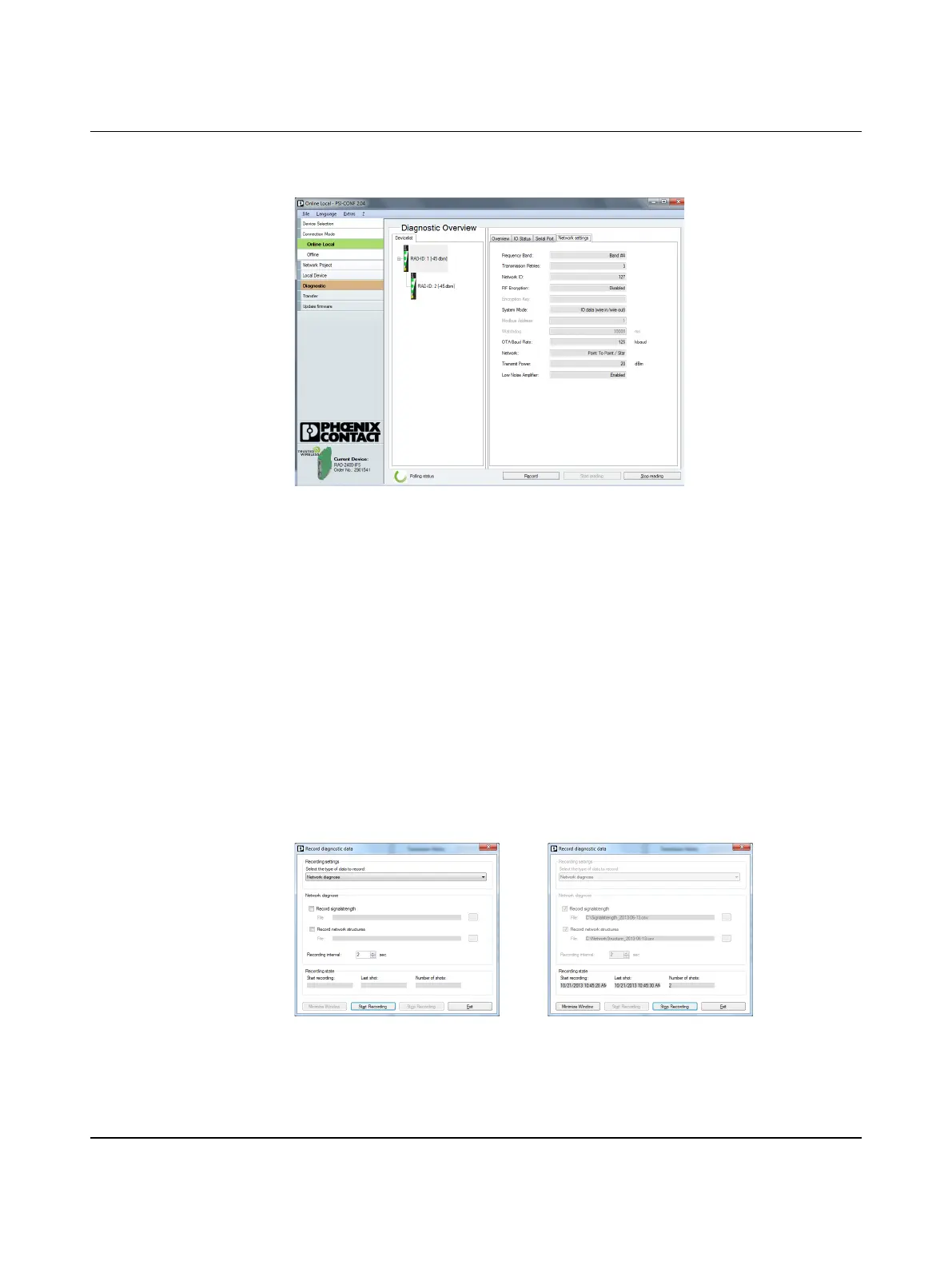

Figure 11-7 PSI-CONF software: Diagnostic, Network Settings
11.3.1 Recording parameters
The following parameters can be recorded using the PSI-CONF software:
– Signal strength
– Network structure
– Status and current values of the connected extension modules
1. Click “Record” under “Diagnostic”.
2. Select “Network diagnostics” or “I/O diagnostics” under “Select the type of data to
record”.
3. Under “Recording interval”, you can specify how often the values should be recorded.
For network diagnostics: Activate “Record signal strength” or “Record network
structures”.
For I/O diagnostics: Select the desired stations.
4. Select a storage location and click on “Start Recording”.
Diagnostic data is now written to a CSV file which can be opened, for example, with Excel.
Figure 11-8 PSI-CONF software: Record diagnostic data, Network diagnostics
