3.8.4 Diagnostic LEDs
The RAD-DAIO6-IFS I/O extension module uses a total of seven LEDs to indicate the
operating states.

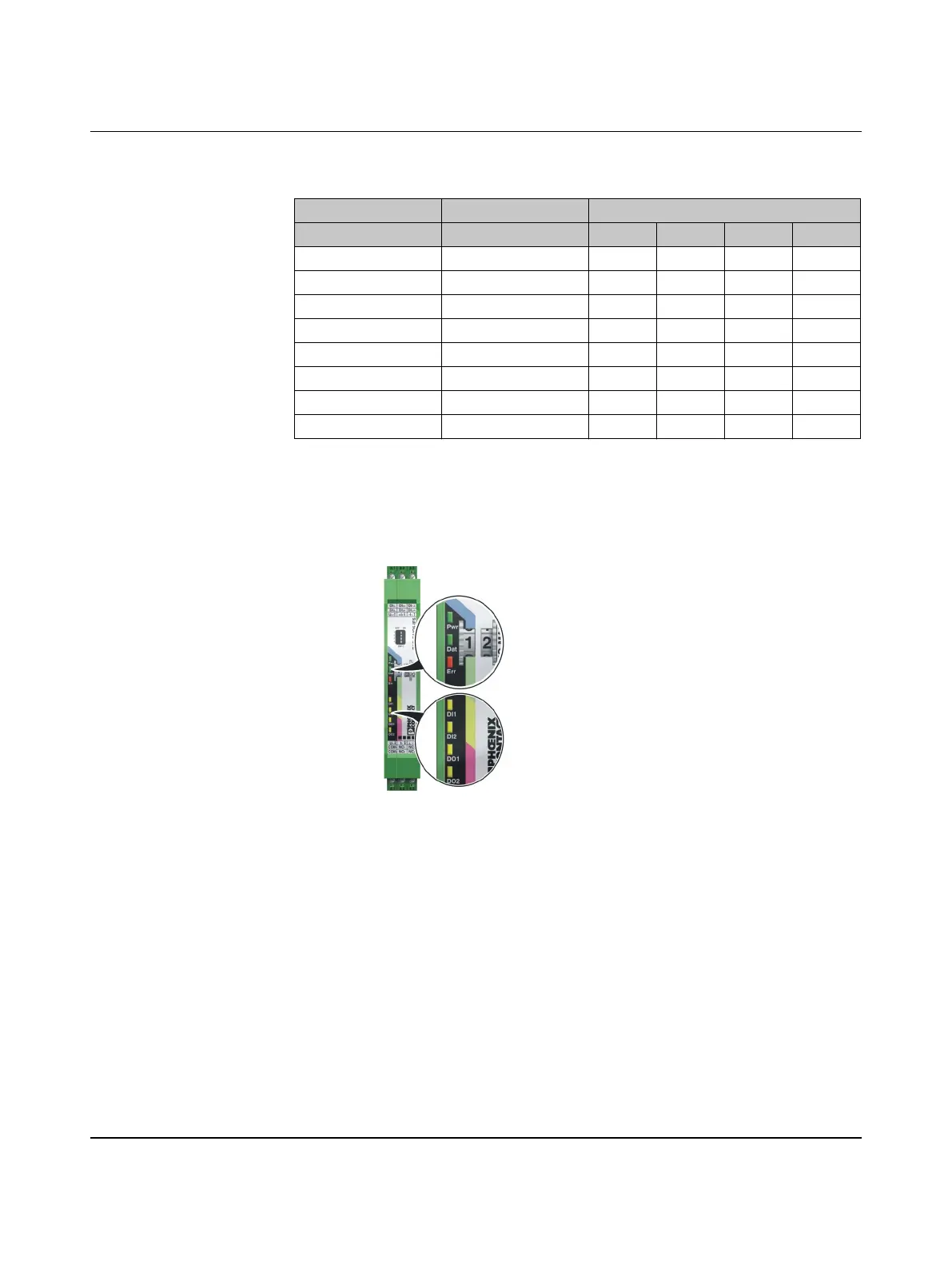

Figure 3-39 Diagnostic-LEDs of the RAD-DAIO6-IFS
PWR LED
The green PWR LED indicates the supply voltage status.
DAT LED
The green DAT LED indicates the bus communication status.
Table 3-14 DIP switches of the RAD-DAIO6-IFS
DIP switch
Setting Output signal 1 2 3 4
Analog IN 0 ... 20 mA OFF
Analog IN 4 ... 20 mA ON
Analog OUT RESET OFF
Analog OUT HOLD ON
Digital OUT1 RESET OFF
Digital OUT1 HOLD ON
Digital OUT2 RESET OFF
Digital OUT2 HOLD ON
OFF No supply voltage
ON Supply voltage OK
OFF No communication
Flashing Configuration and addressing mode
ON Cyclic data communication
