11.3 Diagnostics via PSI-CONF software
Display all current device settings for the station under “Diagnostic” on the “Overview” tab.
Select the desired station from the device list.

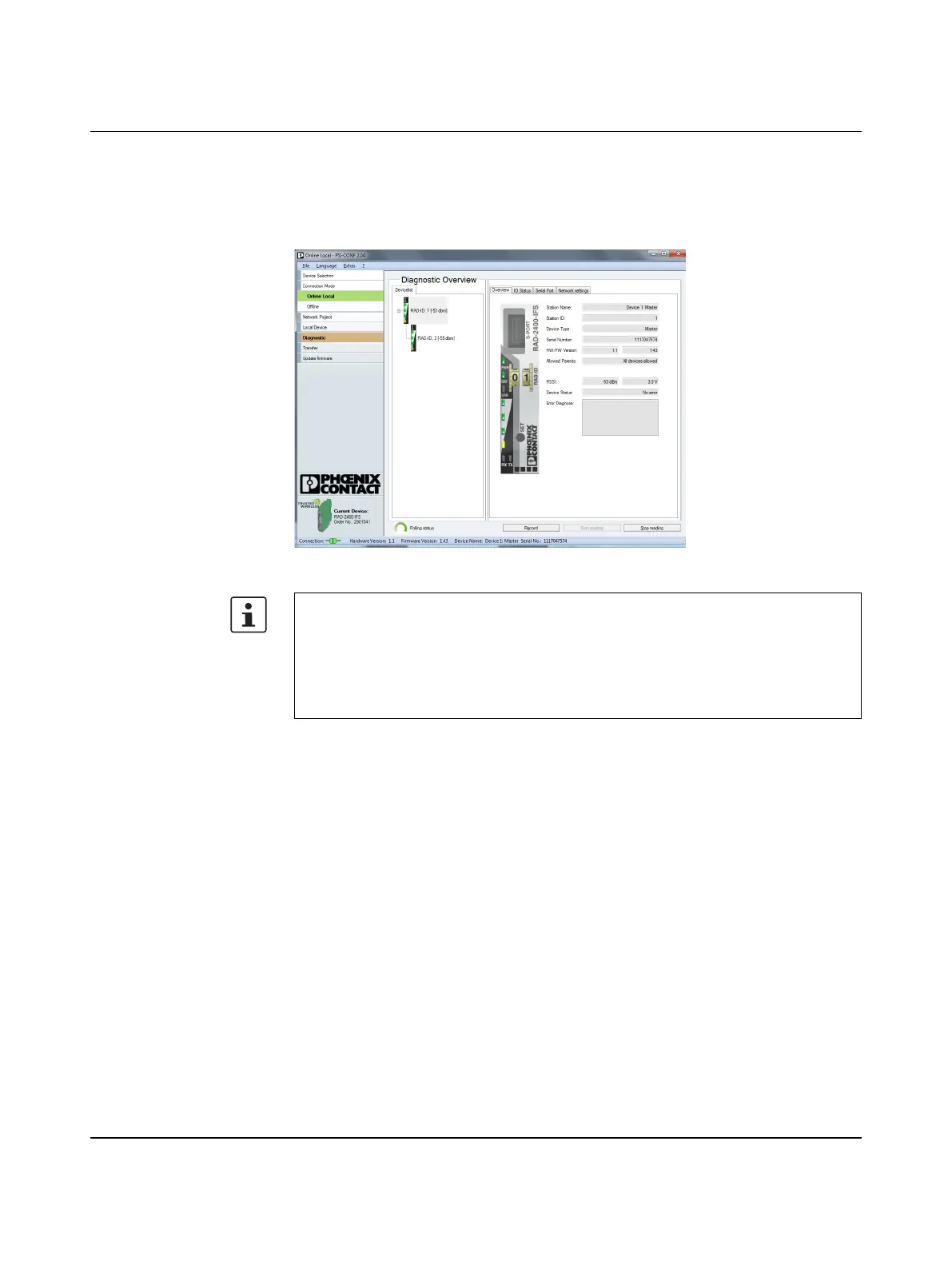

Figure 11-4 PSI-CONF software: Diagnostic, Overview
If an error occurs in the network, an error message is displayed under “Device Status”. If the
error is no longer present, the error message is reset.
Possible error message:
– Missing input module
– Missing output module
– Double assignment of I/O-MAP address
– Error on IFS bus
– Wireless connection interrupted
– RAD ID changed
– CONFSTICK has not yet been inserted
The entire wireless network can be diagnosed using the master wireless module
(RAD ID = 01).
When operating the network in serial data mode, it may not be possible to diagnose all
devices. In this case, stop the serial application in order to allow for complete diagnostics.
For information on troubleshooting, please refer to Section 10, “Detecting and removing
errors”.
