RAD-900-...
16/138
PHOENIX CONTACT 3827_en_B
3.1 RAD-AI4-IFS - analog extension module with four
inputs
The analog RAD-AI4-IFS I/O extension module can process up to four input signals
between 0/4 mA ... 20 mA. All inputs are electrically isolated from one another, from the
supply voltage, and from the electronics.
A supply voltage of 12 V DC, minimum, is available at the PWR
1
connection terminal block
for passive sensors (see Figure 3-1, item 1).
3.1.1 Structure

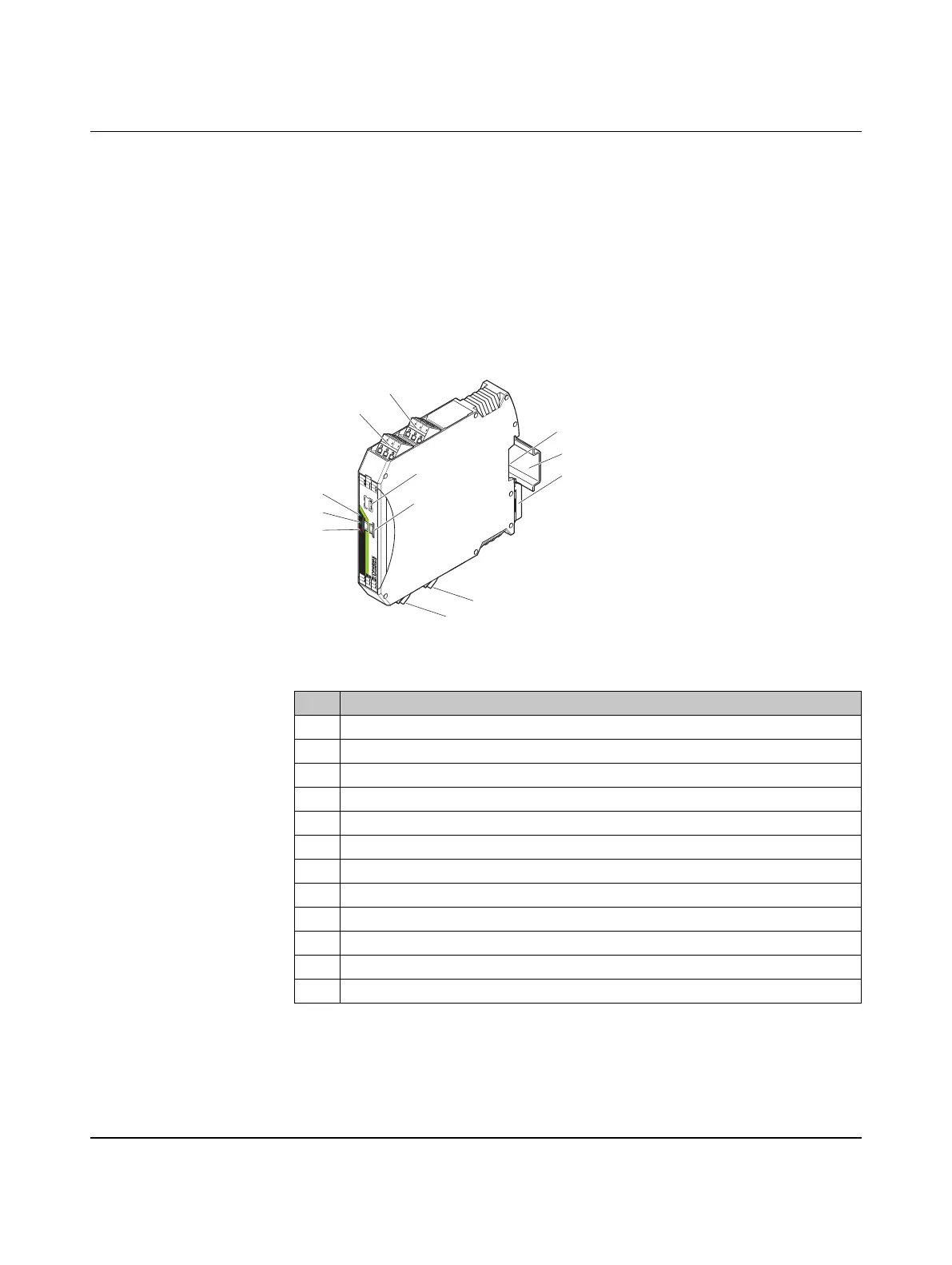

Figure 3-1 RAD-AI4-IFS structure
Item Designation
1 Analog input 2 for 2-, 3-, 4-wire measuring transducers
2 Analog input 1 for 2-, 3-, 4-wire measuring transducers
3 DIP switches for configuring the analog inputs (current/voltage input)
4 White thumbwheel for setting the I/O-MAP address
5 Connection option for DIN rail connector
6 DIN rail
7 Metal foot catch for DIN rail fixing
8 Analog input 3 for 2-, 3-, 4-wire measuring transducers
9 Analog input 4 for 2-, 3-, 4-wire measuring transducers
10 ERR status LED, red (communication error)
11 DAT status LED, green (bus communication)
12 PWR status LED, green (supply voltage)
IO-MAP
RAD-AI4-IFS
P
W
R
DAT
ER
R
1
2
3
4
O
F
F
O
N
DI
P-1
8
8
P
w
r
1
P
w
r
2
+
I
1
+
I
2
-
I
1
-
I
2
P
w
r
3
P
w
r
4
+
I
3
+
I
4
-
I
3
-
I
4
P
w
r
1
P
w
r
2
+
I
1
+
I
2
-
I
1
-
I
2
1
2
3
4
5
7
9
12
11
10
8
6
