In addition, the CONFSTICK contains a preset frequency band (RF band). An RF band is a
group of frequencies compiled of individual frequencies of the entire 900 MHz band.
Different RF bands use different frequencies.
In order to operate several Radioline wireless systems, you should select different
RF bands.

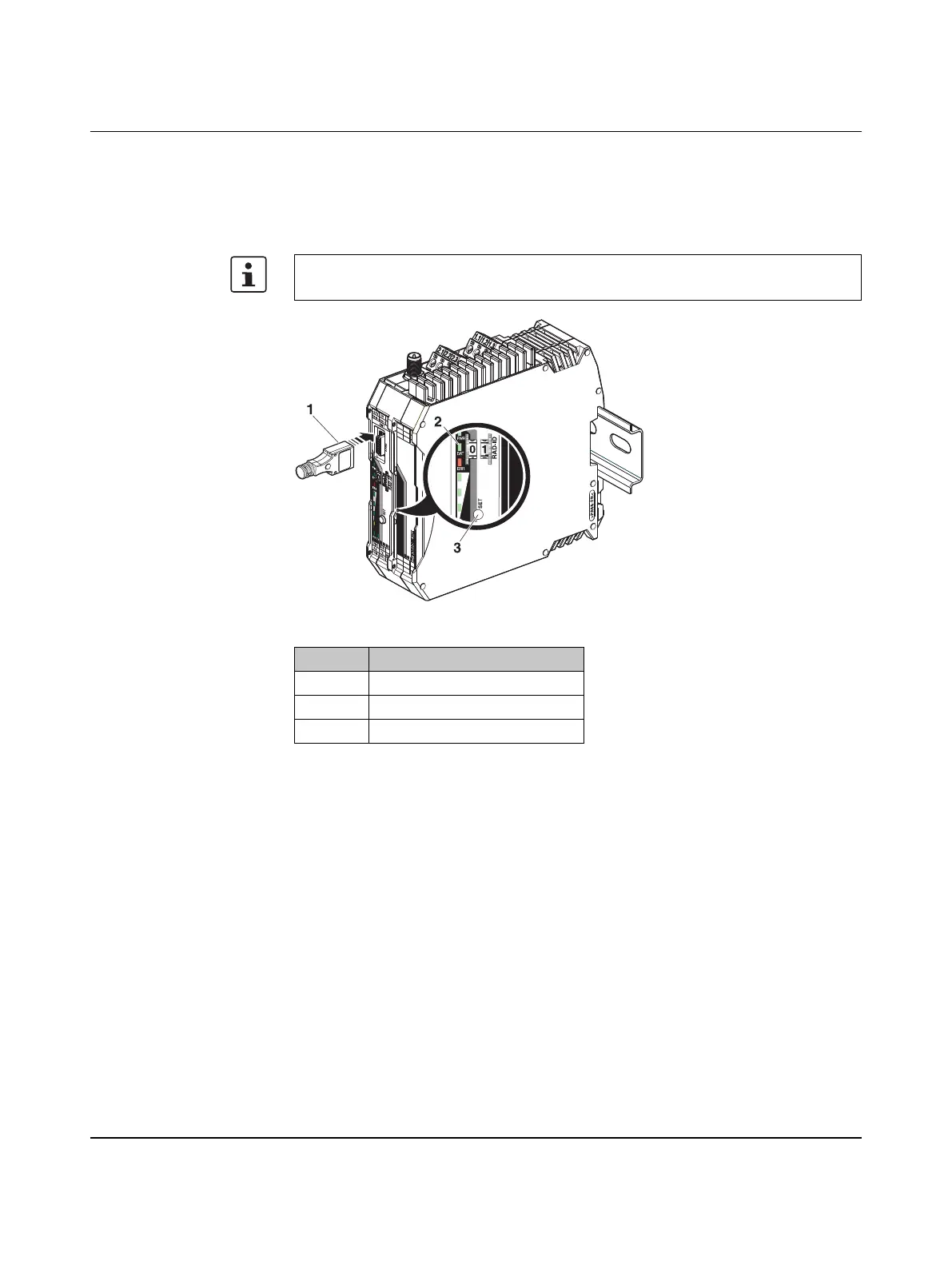

Figure 5-5 Configuration via CONFSTICK
1. Carefully insert the CONFSTICK with the 12-pos. IFS connector into the S port of the
wireless module.
2. Press the SET button on the wireless module for one second. Parameter read in is
started. Read in has been completed when the DAT LED lights up once. The new
parameters are activated.
3. Remove the CONFSTICK from the wireless module.
4. Repeat this process for each individual wireless module in the network.
Set different RF bands between 1 ... 8 and network IDs between 1 ... 127 using the PSI-
CONF software (see page 75).
Item Description
1 RAD-CONF-RF CONFSTICK
2 Status LEDs
3 SET button
