LIFEPAK 500 automated external defibrillator Replacement Procedures
11-36
Removing Main PCB—Monophasic AED Page 2 of 3

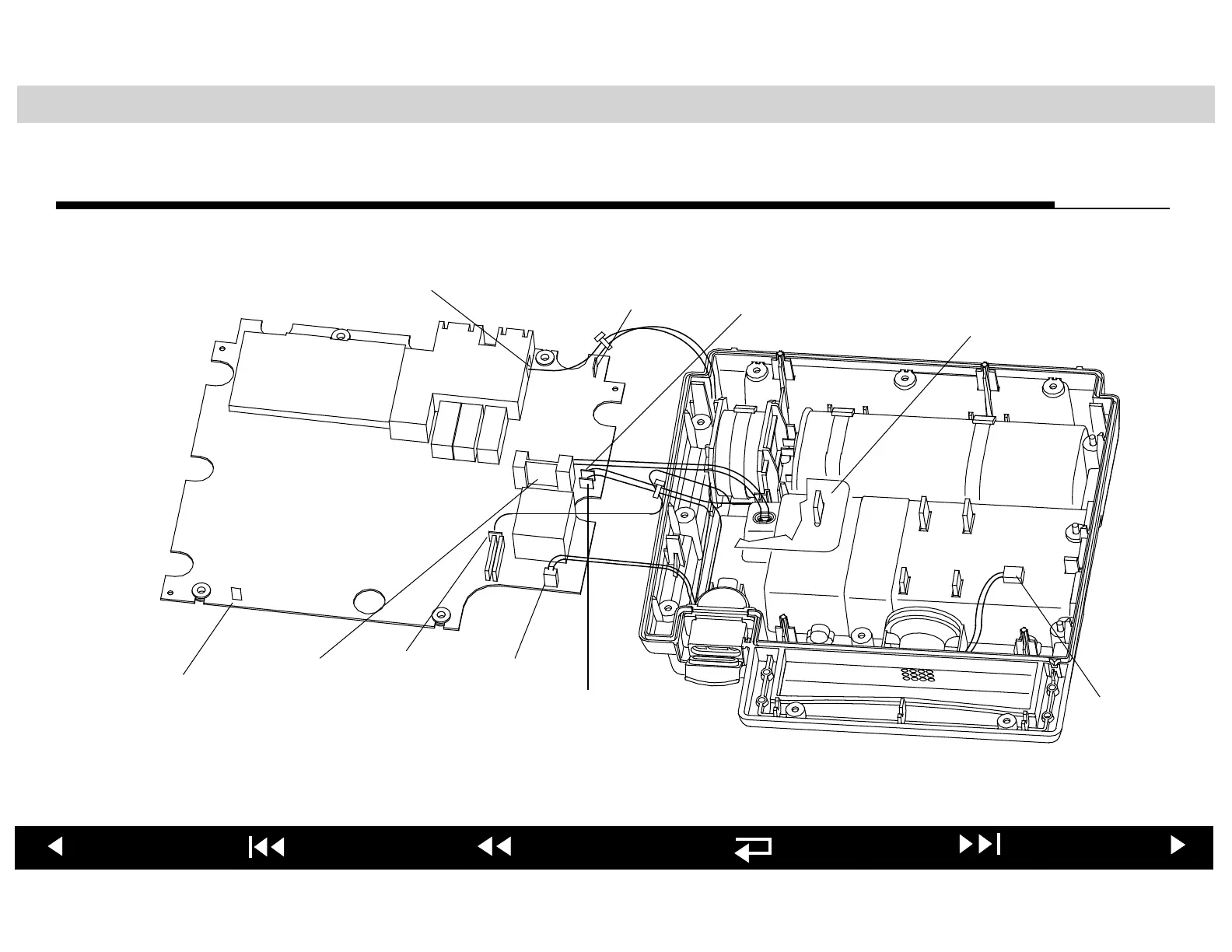

5. Disconnect P12 of the power cable from J12 of the Main PCB.
6. Disconnect the five spade-lugs P1, P2, P4, P5, and P14 from the Main PCB
J1, J2, J4, J5, and J14, respectively. Do not pull on the wires.
J9
J14 (Inside Relay)
J2
J1
J4
J3
J5
J12
(Hidden)
P9
Wire
Harness
Shield
To Next Page
