LIFEPAK 500 automated external defibrillator Replacement Procedures
11-43
Removing Main PCB—Biphasic AED Page 2 of 3

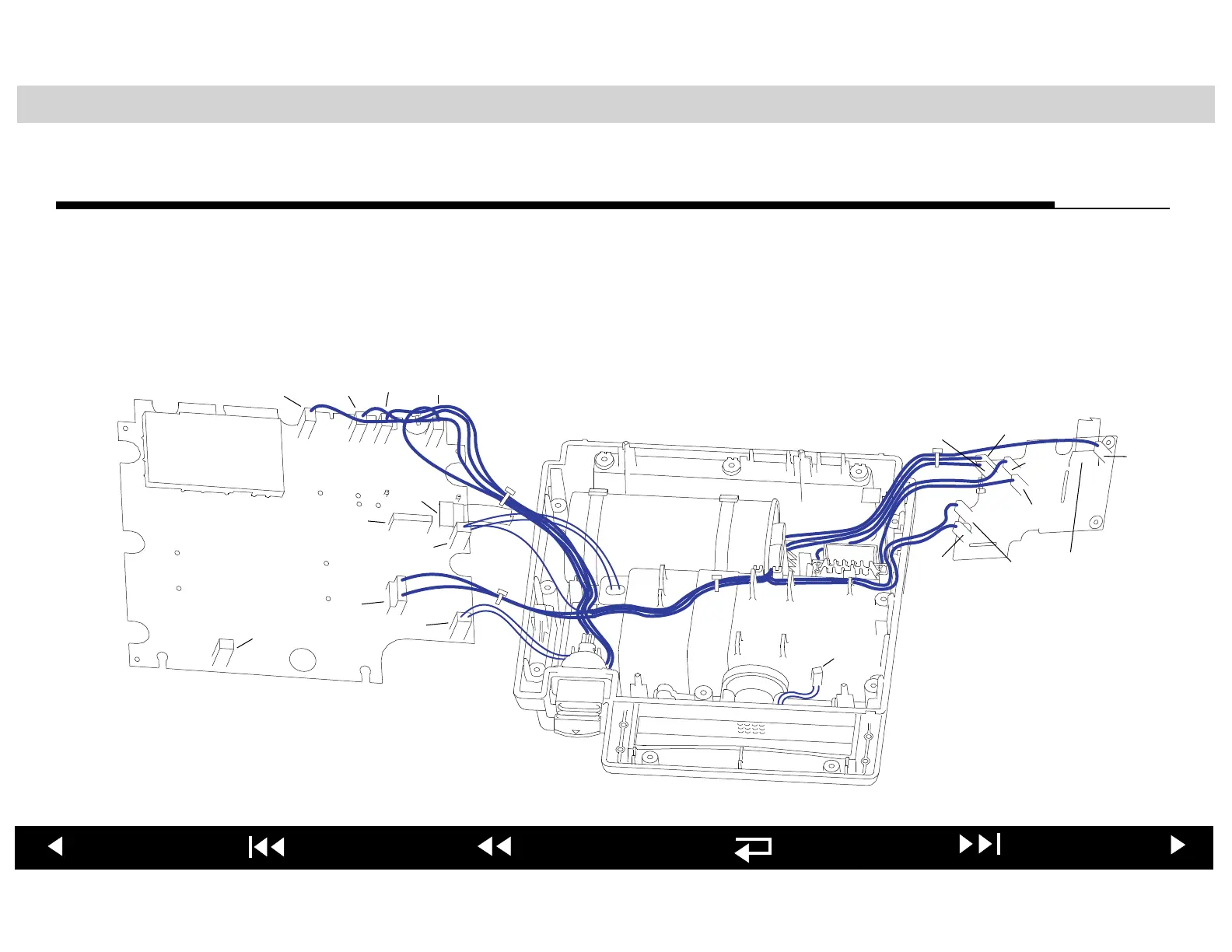

4. Carefully lift the Main PCB off of the four PCB mounts and tilt the board
toward the left, exposing the underside of the Main PCB.
5. Disconnect P3 of the serial cable from J3 of the Main PCB.
6. Disconnect P12 of the power cable from J12 of the Main PCB.
J4
J101
J104
P9
J19
J2
J12
J16
J3
J9
J13
J11
J15
J106
J107
J103
J102
J105
J108
To Next Page
