LIFEPAK 500 automated external defibrillator Replacement Procedures
11-58
Removing Energy Storage Capacitor—Monophasic AED Page 2 of 3

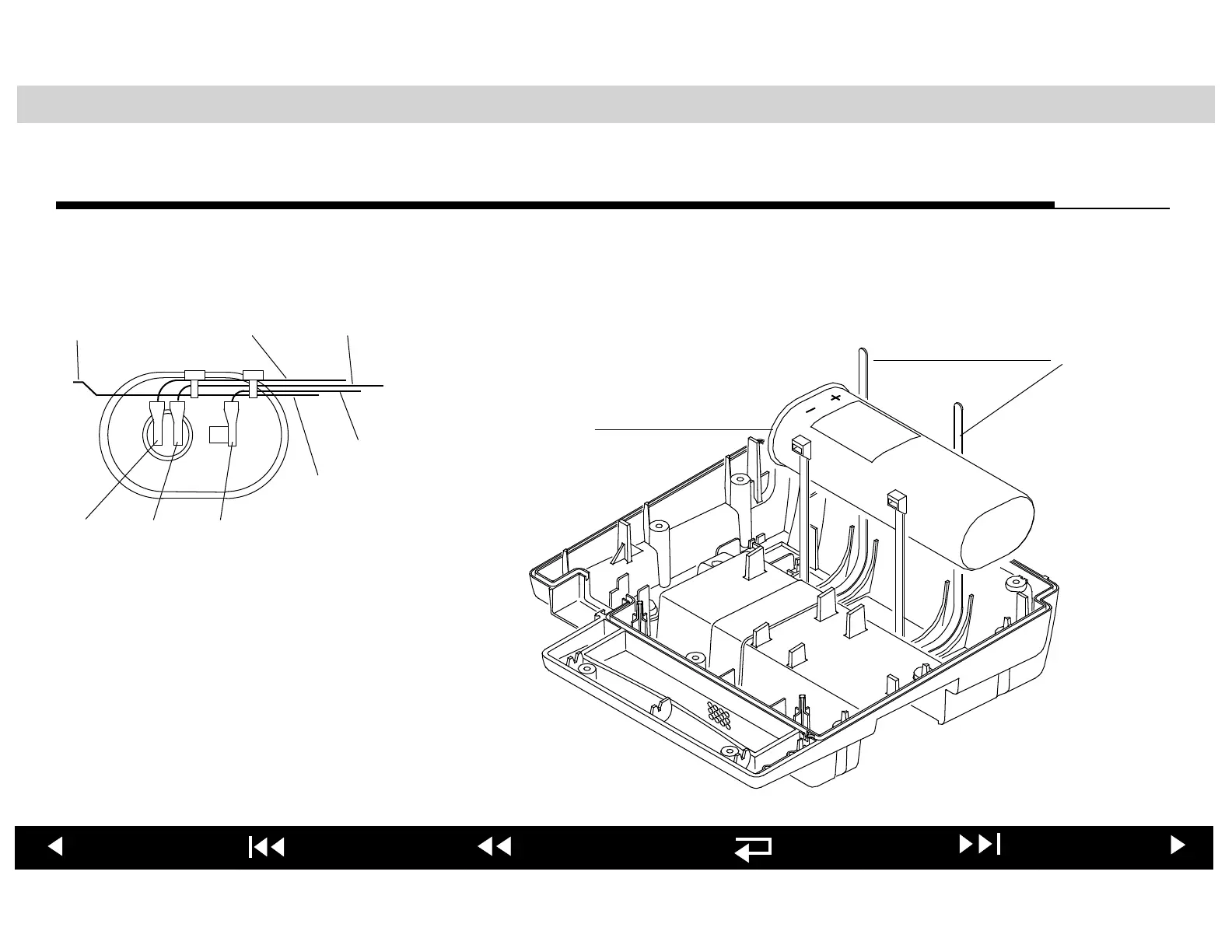

To install the Energy Storage Capacitor:
1. Reconnect the three capacitor spade-lugs to the replacement Energy
Storage Capacitor, as shown at the left.
2. Install the new capacitor in the capacitor cavity of the lower enclosure.
To Inductor
To J5
To J1
To J2
To Patient
Connector
Pin 4
C1+
C1-
P13
Energy Storage
Capacitor
Capacitor
Tie-Wraps
To Next Page
