2. Remove the retaining nut from the upper portion of
the stabilizer bar linkage bushing on each side of the
vehicle.
3. Remove the two fasteners that secure the stabilizer
bar to the main frame on each side.
4. Remove the stabilizer bar from the frame and inspect
the stabilizer bar for straightness.
5. Inspect the stabilizer bar bushings and replace if
needed.
6. Inspect the rubber bushings on the stabilizer linkage
rod and replace if needed. If replacing the stabilizer
linkage, remove the lower shock bolt from the upper
A-arm.
7. Reverse this procedure for installation.
8. Torque the stabilizer retaining bolts and upper rubber
bushing nuts to specification.
TORQUE
Stabilizer Bar Bolts:
17 ft-lbs (23 Nm)
9. If the stabilizer linkage was removed, torque the
lower shock retaining bolt to specification.
TORQUE
Shock Fasteners:
30 ft-lb (41 Nm)

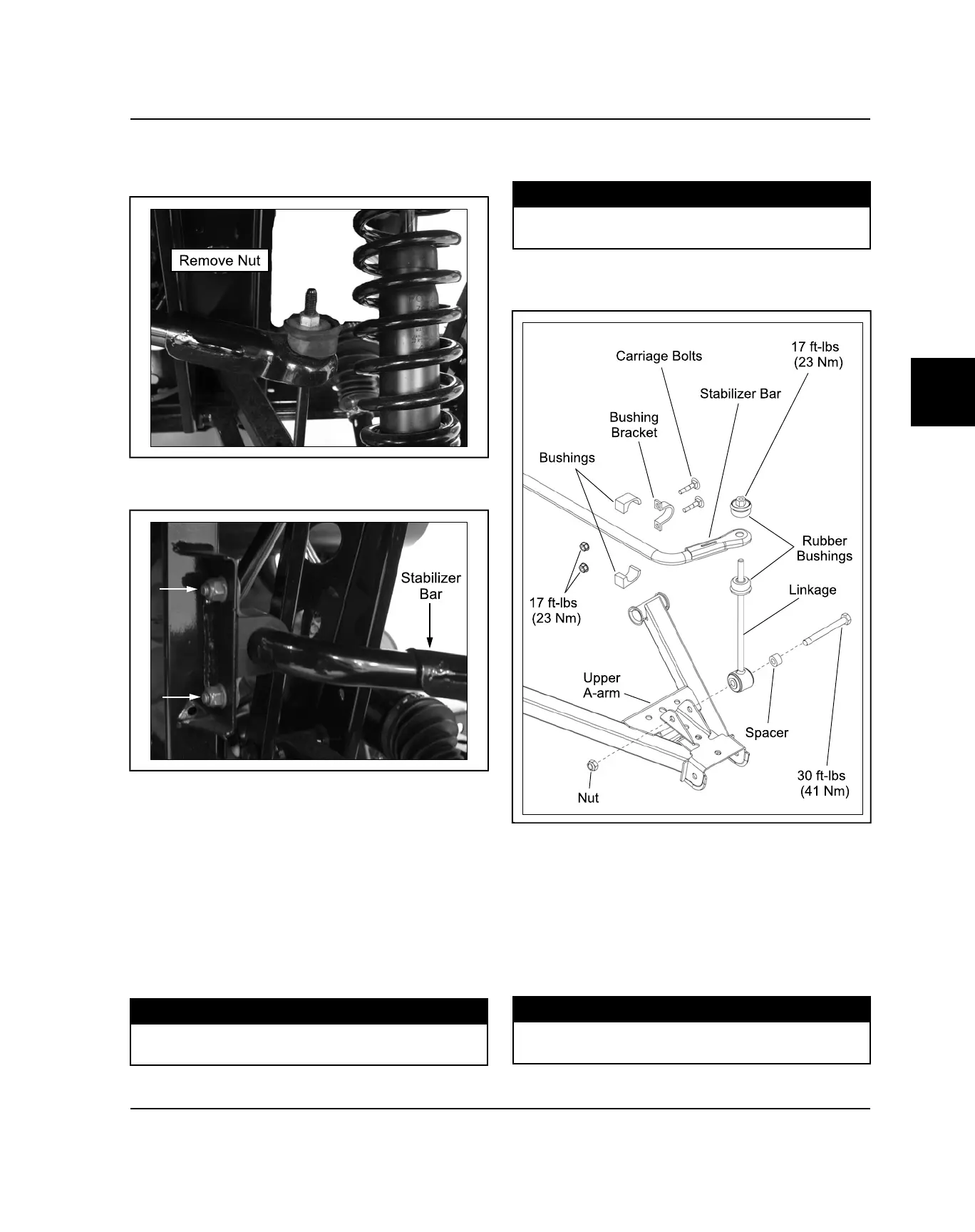

EXPLODED VIEW
SHOCK REMOVAL / INSTALLATION
1. Elevate the vehicle off the ground to relieve the
suspension load.
2. Remove the upper and lower fasteners retaining the
shock and remove the shock from the vehicle.
3. Reverse the procedure to reinstall the shock. Torque
new fasteners to specification.
TORQUE
Shock Fasteners:
30 ft-lb (41 Nm)
