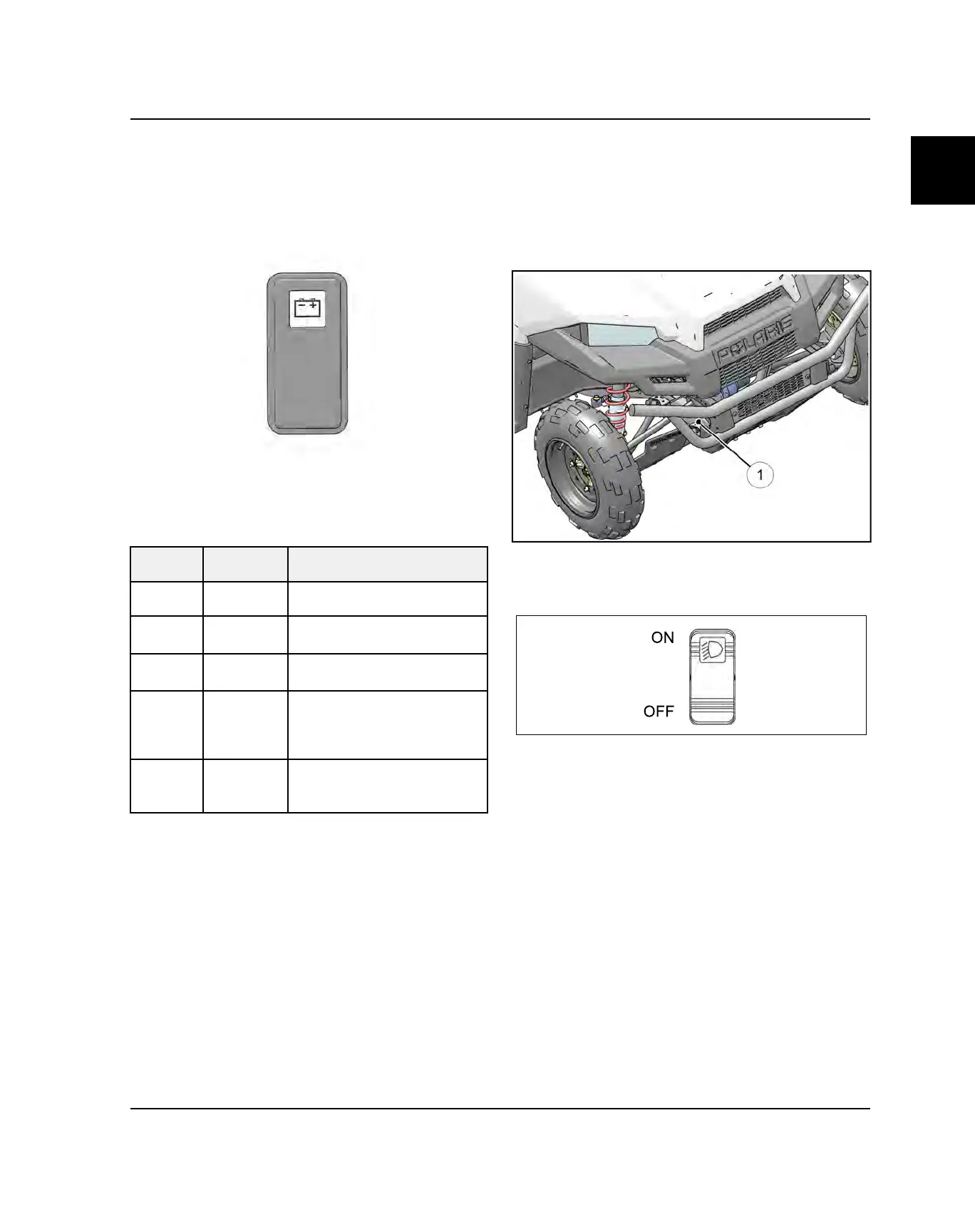

CHARGE STATUS INDICATOR
When charging the batteries, the charge status indicator
light flashes and changes color to indicate the status of
the charge. See Table 2.
2 - Charge Status Indicator
COLOR
INDICA-
TION CODE DEFINITION
Green Solid
Charge is complete, charger is
in maintenance mode.
Green
Fast
Flash
Less than 80% of charge is
completed.
Green
Slow
Flash
More than 80% of charge is
completed.
Amber
Flashing
Charge rate is reduced, low
AC voltage or high internal
charger temperature exists;
open hood to improve air flow.
Red
Flashing
Charger error exists; reset
charger power and refer to
Battery section in this chapter.
BATTERY CHARGING CORD / BATTERY
CHARGER
The battery charging cord (1) is located at the front of the
vehicle, inside the right front bumper. See Battery
Charging, page 1.21 for battery charging procedure. See
Battery Charger Troubleshooting, page 1.34 for battery
charger diagnostics.
