SUSPENSION

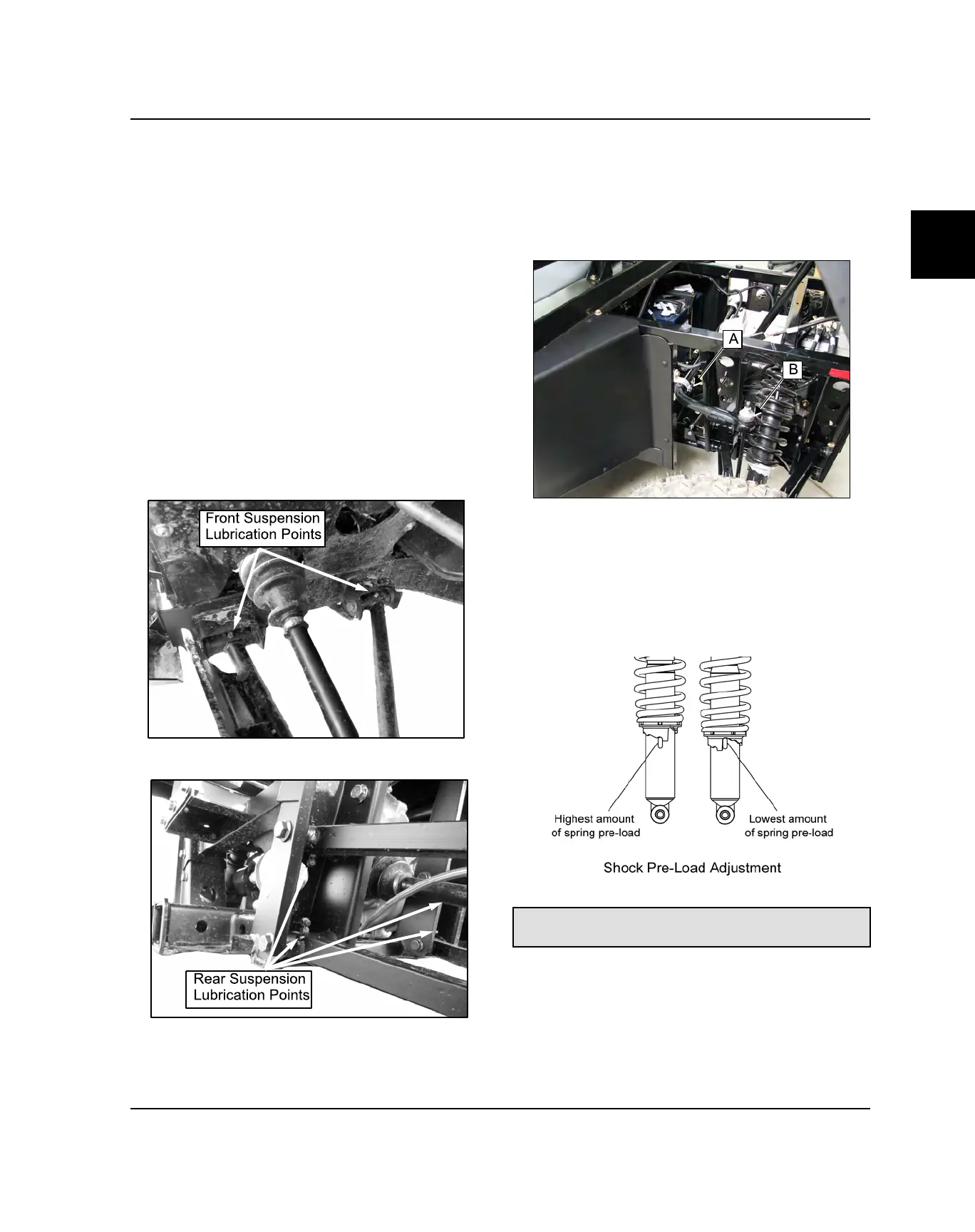

SUSPENSION INSPECTION
1. Compress and release front and rear suspension.
Damping should be smooth and consistent
throughout travel range.
2. Inspect each rear shock and front strut for oil
leakage.
3. Check all suspension components for wear or
damage.
4. Check all fasteners to be sure they are tight and all
cotter pins are installed where applicable. If any
fasteners are loose, refer to Chapter 4, Body,
Steering and Suspension for fastener torque values.
SUSPENSION PIVOT POINT LUBRICATION
• Both the front and rear suspension A-arms are
equipped with grease fittings at the pivot points. See
the maintenance chart for service intervals or grease
as needed.
STABILIZER BAR PIVOT LUBRICATION
Grease stabilizer bar pivots (A) with a grease gun until
old grease is purged from the joint and new grease
appears. Inspect link isolators (B) for cracks.
REAR SHOCK SPRING PRE-LOAD
ADJUSTMENT
The rear shock absorber springs are pre-load adjustable.
Use Spanner Wrench to rotate adjuster cam to increase
or decrease spring pre-load. Always adjust both left and
right sides equally.
Shock Spanner Wrench:
2871095
