7.8
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
FOOT BRAKE PEDAL
PEDAL REMOVAL
1. Open the hood.

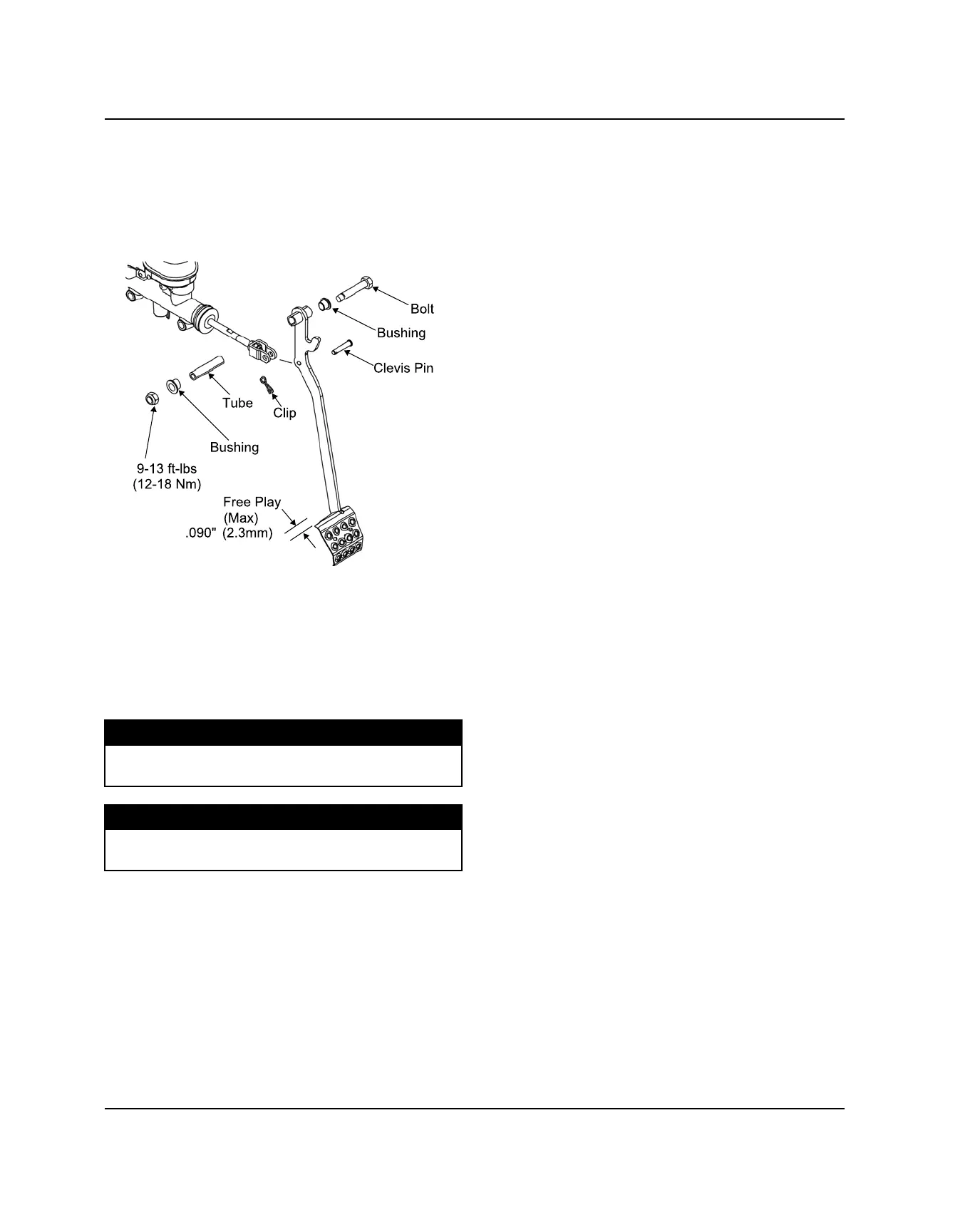

2. Remove nut, bushing, tube, and bolt from brake
pedal.
3. Remove retaining clip and clevis pin from master
cylinder to remove pedal.
PEDAL INSTALLATION
Reverse Steps 1-3 for foot brake installation. Torque the
clevis nut to specification. After installing the foot brake
check pedal freeplay.
TORQUE
Clevis Nut:
13 ft-lb (18 Nm)
MEASUREMENT
Brake Pedal Free-play:
Less than .090″ (2.3 mm)
BRAKE SYSTEM
