FEATURES AND CONTROLS

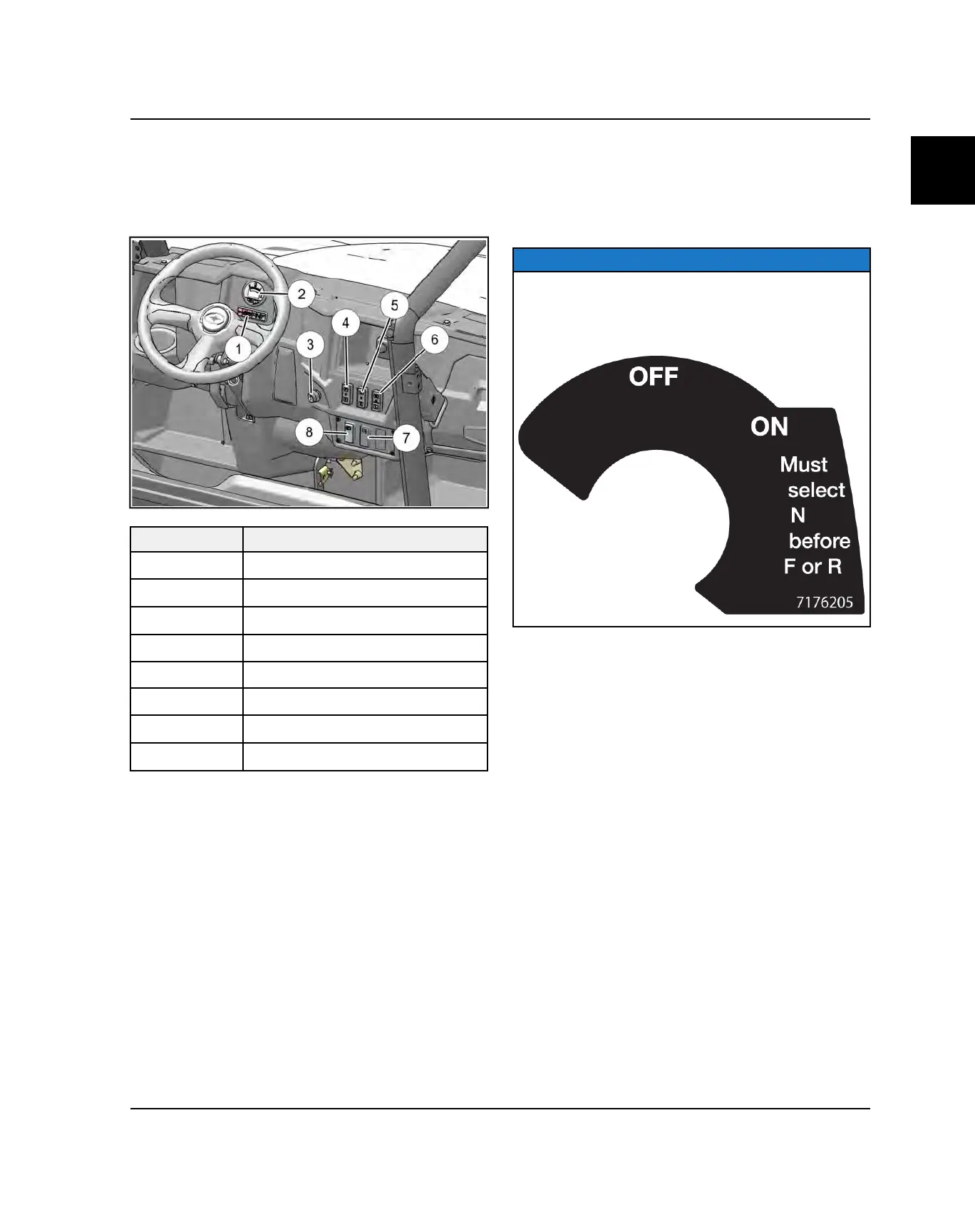

CONSOLE
Console switches and controls are described on the
following pages.
NUMBER DESCRIPTION
q
Indicator Lights
w
Discharge Indicator / Hour Meter
e
Key Switch
r
Drive Direction Selector
t
AWD Switch
y
Drive Mode Switch
u
Charge Status Indicator
i
Headlight Switch
KEY SWITCH
Move the Direction Selector Switch to NEUTRAL then
turn the key to the ON position to activate electrical
circuits.
NOTE
The accelerator will not start the drive motor if the
Direction Selector Switch is in the Forward or Reverse
position when the key is turned ON. Switch to
NEUTRAL, then choose Forward or Reverse.
The key can be removed from the switch when it is in the
OFF position. Turn key OFF when vehicle is not in use.
PARKING BRAKE
To help prevent the vehicle from rolling, set the park
brake when parking the vehicle. When the park brake is
set and the park brake indicator is illuminated, motor
speed is limited. If the accelerator is applied, this limiting
feature prevents operation, which protects the park brake
pads from excessive wear.
This feature will not operate properly if the park brake
connector or switch (under the hood) malfunctions or
becomes disconnected, or if the switch has moved.
Check to be sure the switch is properly connected or test
and repair as required. See Chapter 7 (Brakes) or
Chapter 8 (Electrical) for diagnostic procedure.
Always apply the service brakes before engaging or
releasing the park brake.
Be sure the lever is completely forward when releasing
the park brake.
Drive Mode Switch
GENERAL / BATTERY
1
To Next Page
