7
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
7.11

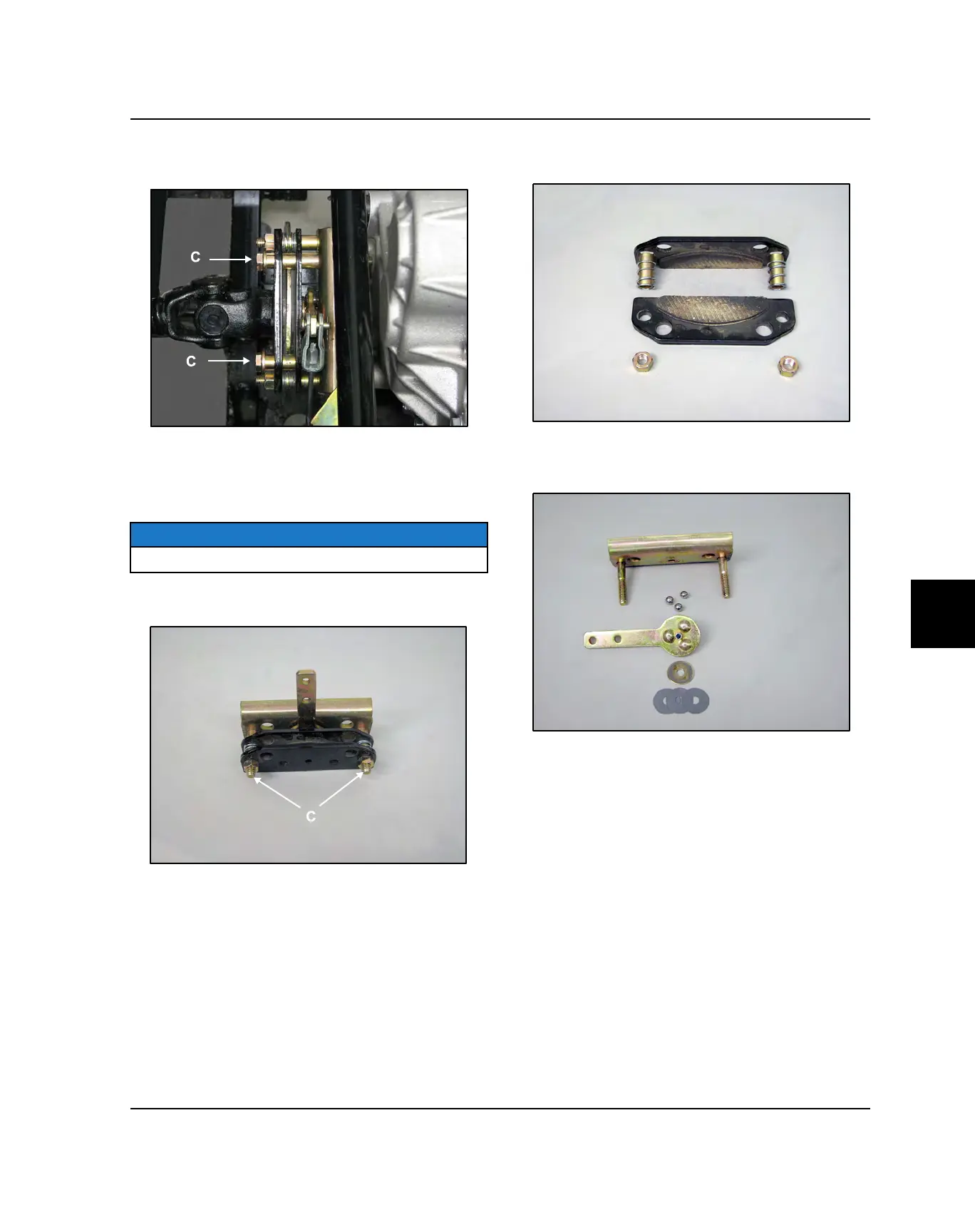

4. Loosen the two brake caliper mounting bolts (C).
5. Remove parking brake caliper assembly.
CALIPER DISASSEMBLY / INSPECTION
NOTE
The parking brake caliper is replaced as an assembly.
1. Remove two caliper assembly nuts (C).
2. Remove bolts, and pads with spacers and springs.
3. Disassemble shims, plate washer, lever arm, and
balls from bracket.
4. Inspect (3) steel balls for any signs of pitting,
cracking, or flat spots.
5. Check ball seats in lever and stationary actuator. If
excessively worn, replace parts as needed.
BRAKE SYSTEM
