7.30
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.

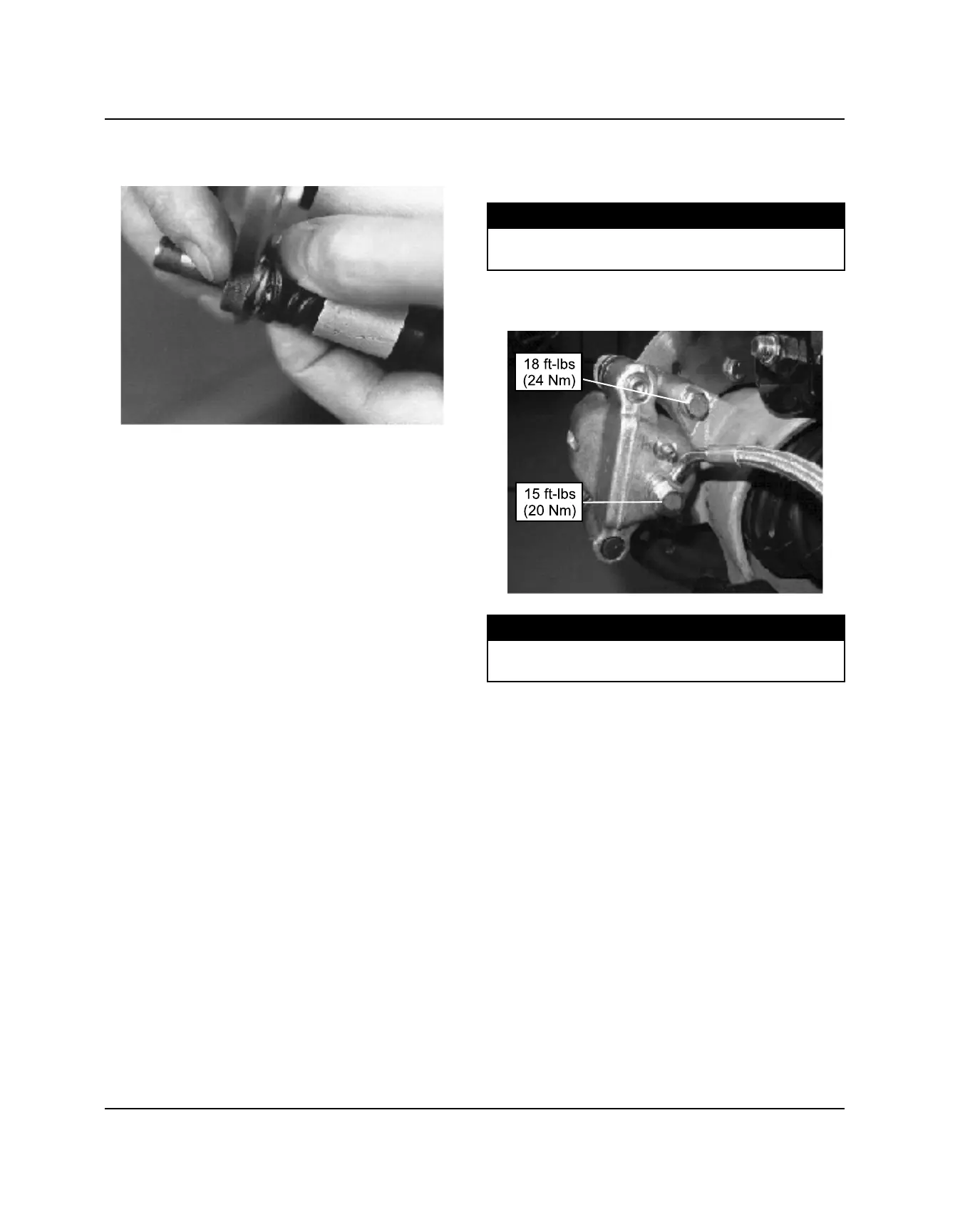

4. Lubricate the mounting bracket pins with disc brake
caliper lube, and install the rubber dust seal boots.
5. Compress the mounting bracket and make sure the
dust seals are fully seated. Install the brake pads.
Clean the disc and pads with brake parts cleaner or
denatured alcohol to remove any dirt, oil or grease.
CALIPER INSTALLATION
1. Install the rear caliper with the mounting bolts.
Torque mounting bolts to specification.
TORQUE
Rear Caliper Mounting Bolts:
18 ft-lb (25 Nm)
2. Install brake line banjo bolt. Torque banjo bolt to
specification.
TORQUE
Banjo Bolt:
15 ft-lb (20 Nm)
3. Install rear wheel and wheel nuts. Carefully lower
vehicle.
BRAKE SYSTEM
