DRIVE MOTOR ASSEMBLY

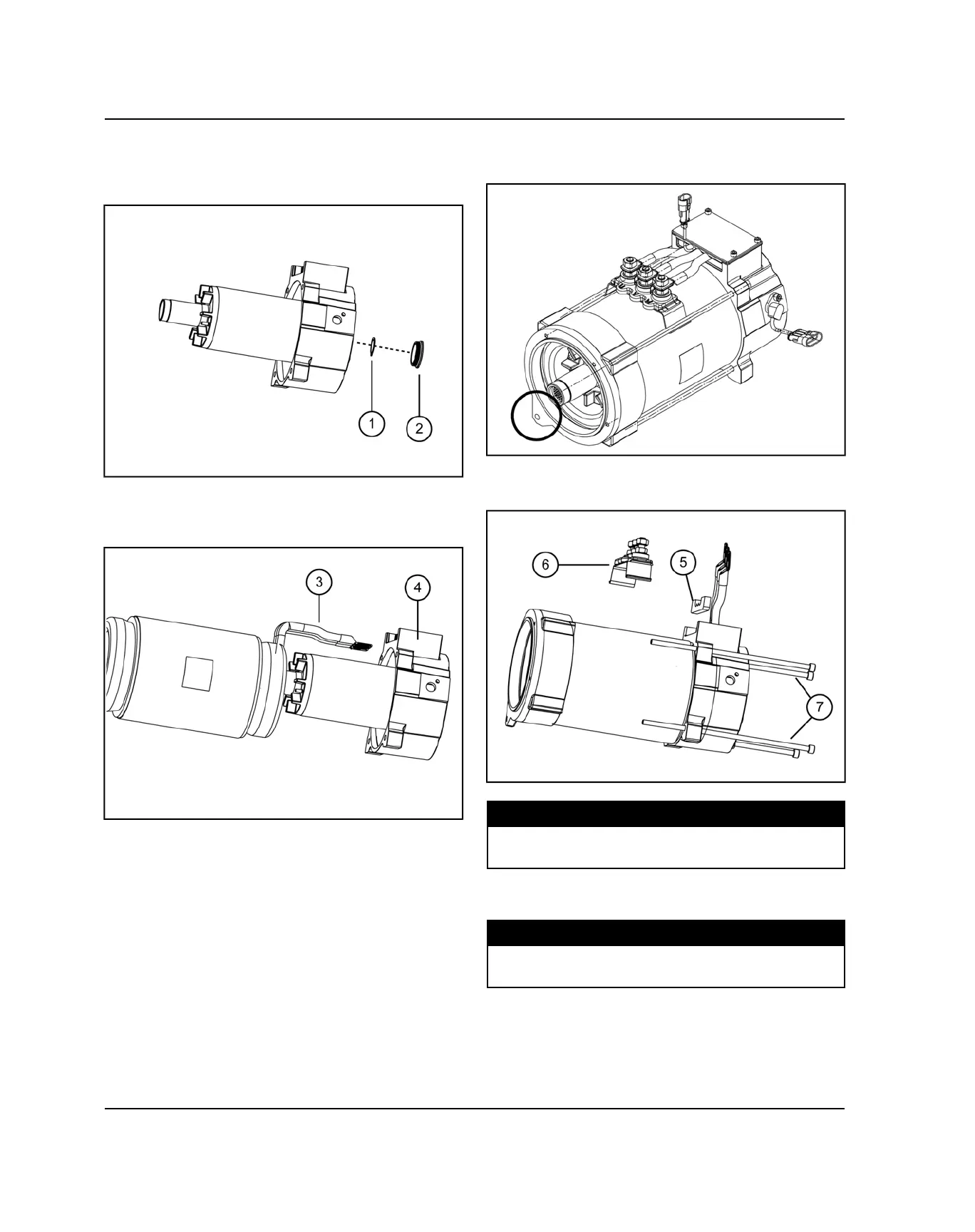

1. Press rotor into bearing until seated and circlip
q
and threaded cap
w
can be installed.
2. Slide the rotor into the motor housing feeding the
three terminal leads
e
through the access port in the
motor end cap
r
.
3. With the motor end cap seated, slide the terminal
lead guide
t
into position, fit the terminal block
y
onto the motor.
4. Install drive end housing with mounting boss
positioned as shown.
5. Install motor case bolts
u
and torque to
specification.
TORQUE
Motor Case Bolts:
8 ft-lb (11 Nm)
6. Install motor end cap access cover and gasket.
Torque to specification.
TORQUE
Access Cover Screws:
31 in-lb (4 Nm)
