7.28
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
REAR CALIPER SERVICE

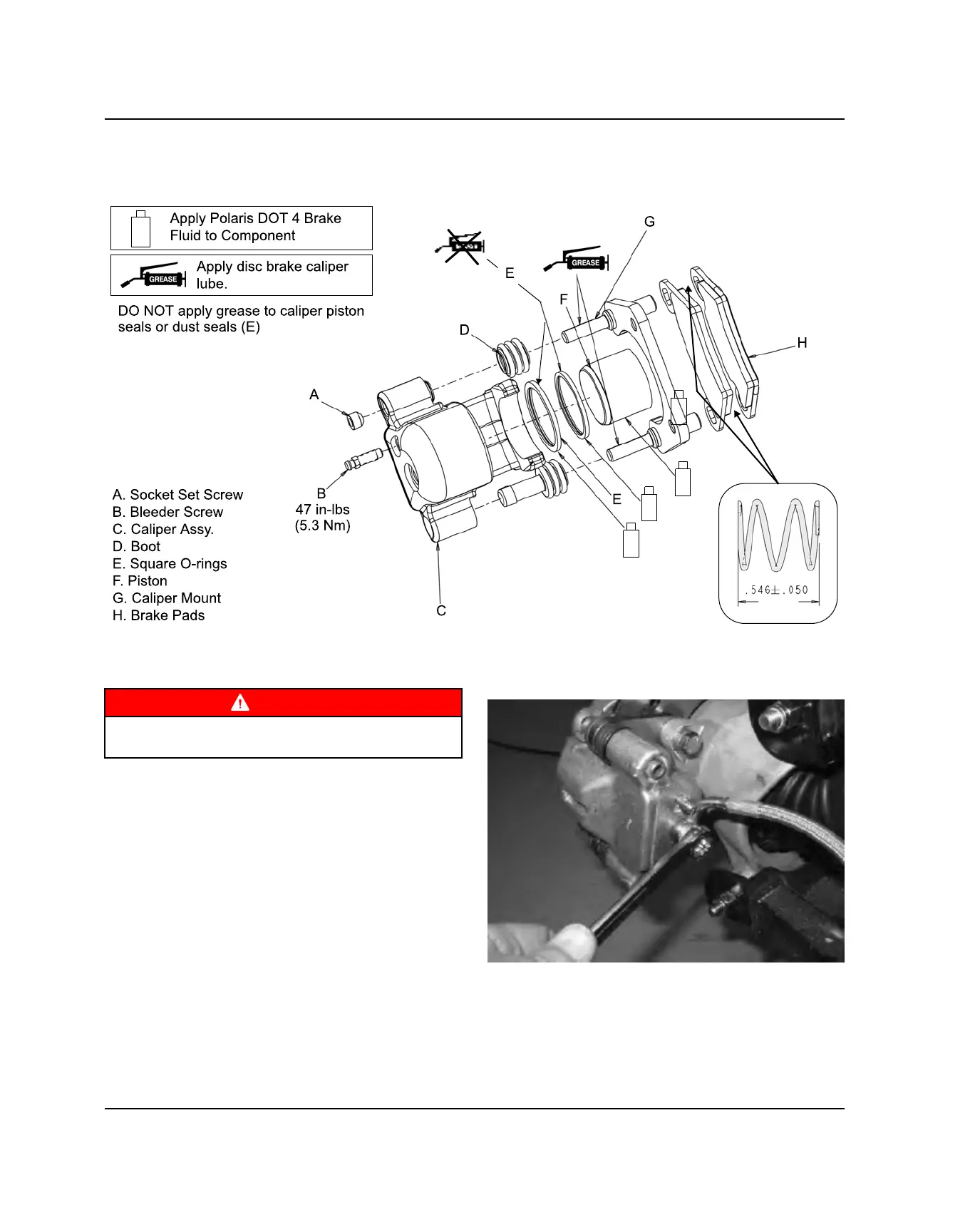

REAR CALIPER EXPLODED VIEW
CALIPER REMOVAL
1. Safely support the rear of the machine.
WARNING
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur if machine tips or falls.
2. Use a wrench to remove the brake line. Place a
container to catch brake fluid draining from brake
lines.
BRAKE SYSTEM
