3.10
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.

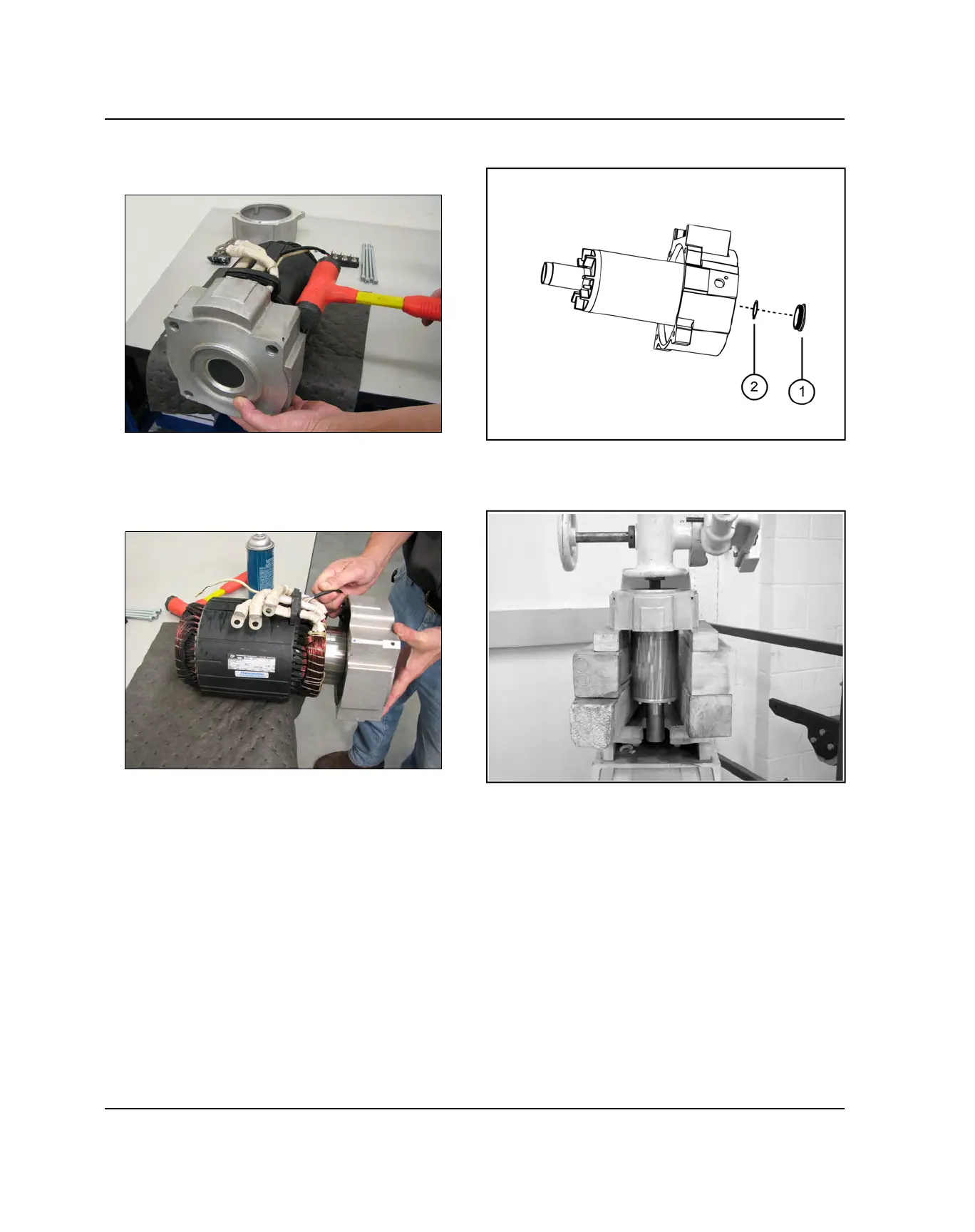

7. Tap housing lightly to separate the rear housing /
rotor assembly from the stator assembly.
8. Carefully pull wires through cover and slide rotor and
housing out of stator.
9. For bench tests see Drive Motor Bench Tests, page
3.13.
ROTOR REMOVAL
1. Remove threaded cap
q
from housing.
2. Remove circlip
w
from end of rotor.
3. Support housing. Select a suitable arbor which is
slightly smaller than the rotor shaft. Carefully press
rotor from bearing. Be prepared to catch rotor.
DRIVE MOTOR
