9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.
SPECIFICATIONS
TORQUE SPECIFICATIONS
For Transaxle / Differential Exploded Views see
Transaxle And Differential Exploded View, Complete,
page 6.10 and Transaxle Exploded View, Shaft and Gear
Assemblies, page 6.11.
SPECIAL TOOLS
PART NUMBER TOOL DESCRIPTION
2871698 (Part of 2871702
Kit)
Output Seal Driver
2871699 (Part of 2871702
Kit)
Driveshaft Seal Guide
2871282
Bearing Seal Driver
(50 mm)
Dealers may order special tools through Polaris’ official
tool supplier, Bosch Automotive Service Solutions, by
phone at 1-800-345-2233 or on-line at http://polaris.
service-solutions.com/
LUBRICATION
FLUID CAPACITY
Recommended Transaxle Lubricant:
Polaris Angle Drive Fluid
Capacity: 20.3 oz. (600 ml)

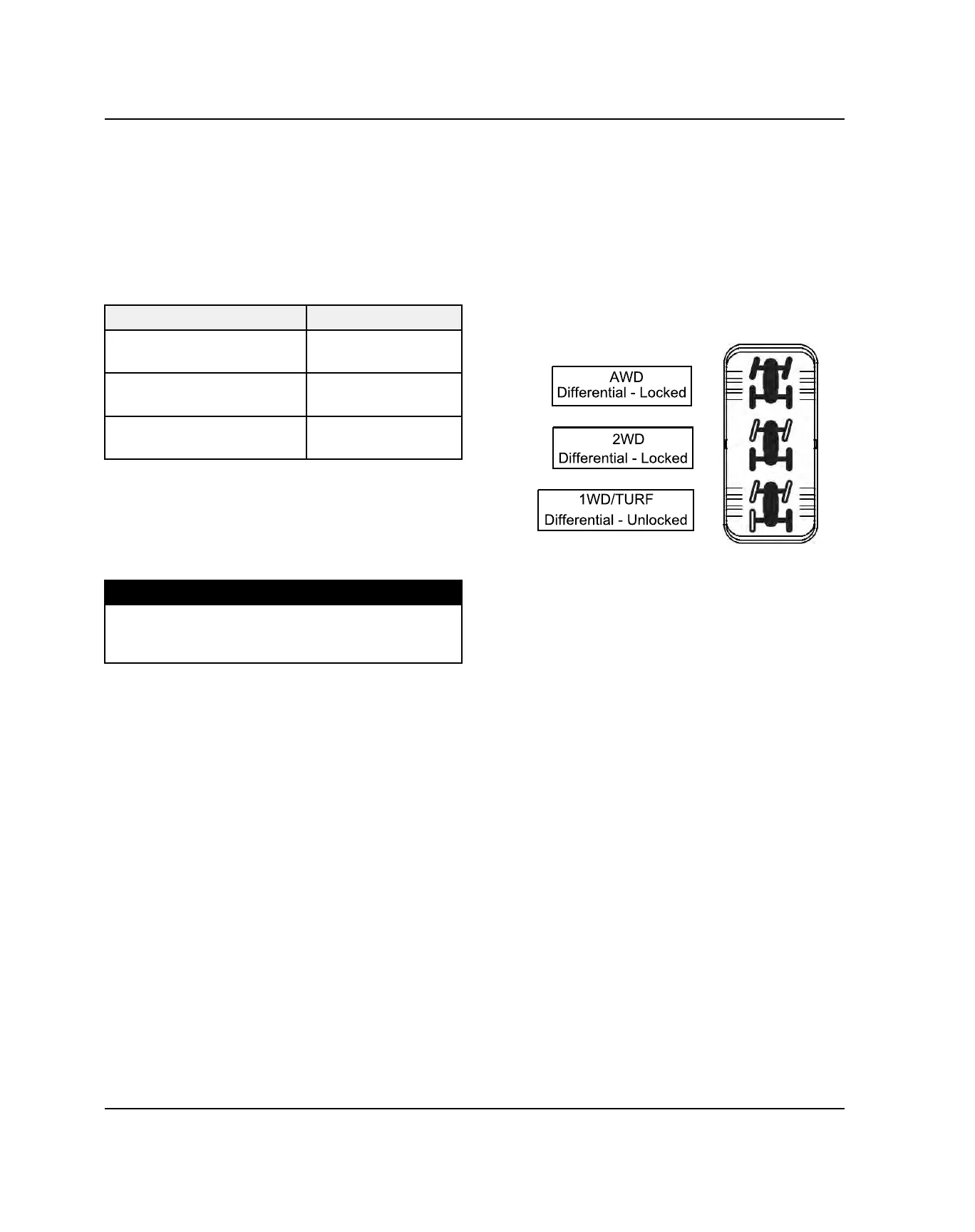

GENERAL OPERATION (TYPICAL)
The RANGER EV transaxle has two rear wheel traction
operational modes: differential locked, and differential
unlocked. Locking the rear differential (AWD and 2WD
modes) is beneficial in low traction and rough terrain
conditions. Unlocking the rear differential (1WD / Turf
Mode) makes maneuvering easier and minimizes
damage to turf and sensitive terrains. See Chapter 1.
