1.16
9926595 R01 - 2015-2016 RANGER EV Service Manual
© Copyright Polaris Industries Inc.

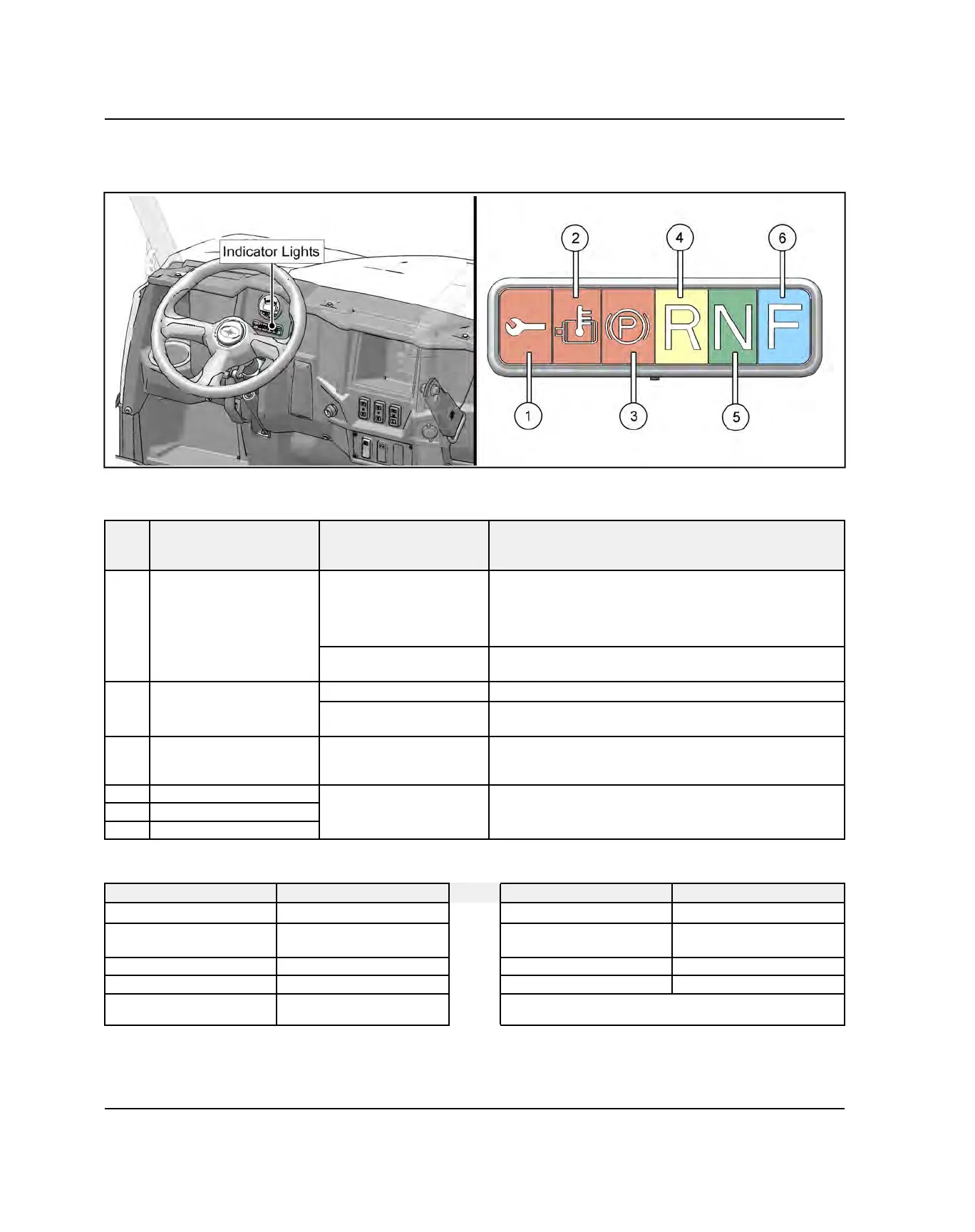

INDICATOR LIGHT PANEL
The indicator lights can activate only when the key is in the ON position. See Table 3.
3 - Indicator Light Function
NU-
MBE-
R
INDICATOR STATUS INDICATES
1 Malfunction
Steady
Key turned ON with Direction Selector in FORWARD or
REVERSE. Move direction selector switch to neutral, then
back to forward or reverse. NOTE: If accelerator pedal is
depressed when key is turned ON, MIL will illuminate until
pedal is fully released.
Flashing
Electrical Malfunction Light on Controller will blink a flash
sequence. See Table 4 for description of Blink Codes.
2
Motor / Controller High
Temperature
Flashing Reduced performance due to elevated temperature.
Steady
Power delivery terminated to prevent damage from
overheating.
3 Park Brake
Steady
Park brake engaged. Move lever forward to fully released
position or inspect switch (See Chapter 8). Drive motor will
not receive power until park brake light is OFF.
4 Gear Position - Reverse
Steady
F, N, or R will illuminate depending on position of the
Direction Selector Switch.
5 Gear Position - Neutral
6 Gear Position - Forward
4 - Controller Malfunction Blink Codes
NUMBER OF BLINKS CODE DEFINITION NUMBER OF BLINKS CODE DEFINITION
1
Data or configuration error
7
Voltage protection
2
Sequence fault
8
Controller or motor out of
temperature range
3 Power fault 12 Communication error
4 Contactor issue 13 Software fault
6
Motor speed or throttle input
error
See Chapter 8 for diagnostic procedures.
