DRIVE MOTOR

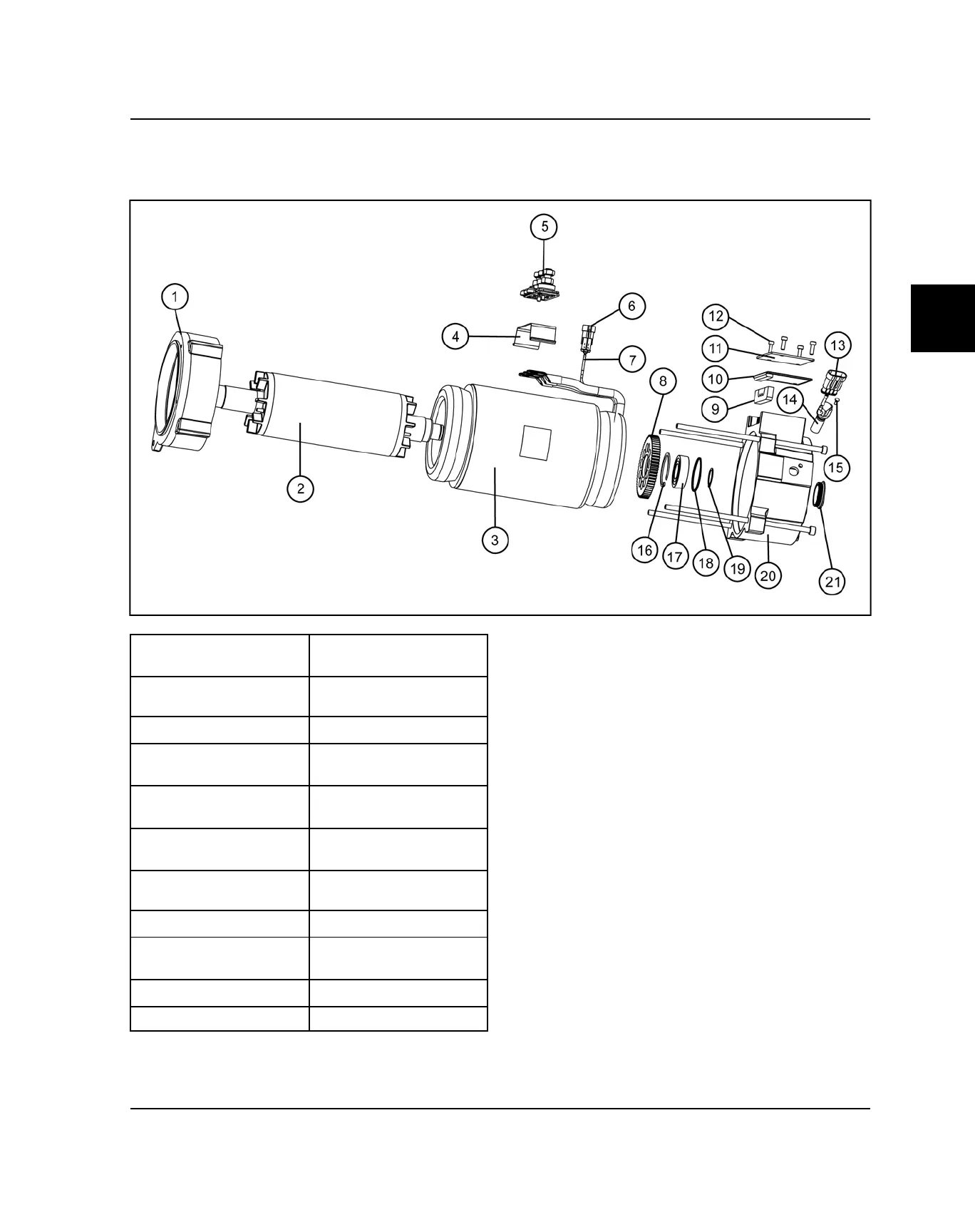

DRIVE MOTOR ASSEMBLY VIEW
q
Drive End Ring
d
Screw, Cover (QTY.4)
31 in-lb (4 Nm)
w
Rotor
f
Connector, Speed
Sensor
e
Stator,
g
Speed Sensor
r
Terminal Base
h
Screw, Speed Sensor
62 in-lb (7 Nm)
t
Group Terminal Board
11 ft-lb (15 Nm)
j
Circlip
y
Group Plug,
Temperature Sensor
k
Ball Bearing
u
Temperature Sensor
Harness
l
O-Ring
i
Gear Wheel Sensor
1*
Circlip
o
Seal, Fitting
2)
Bolt, Drive Motor
8 ft-lb (11 Nm)
a
Seal, Plate
2!
Threaded Plug
s
Cover Plate
-
DRIVE MOTOR
